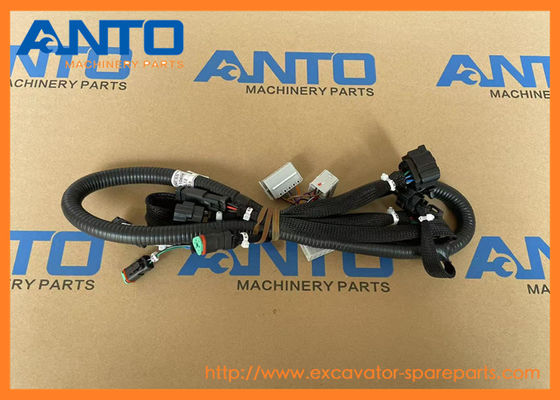

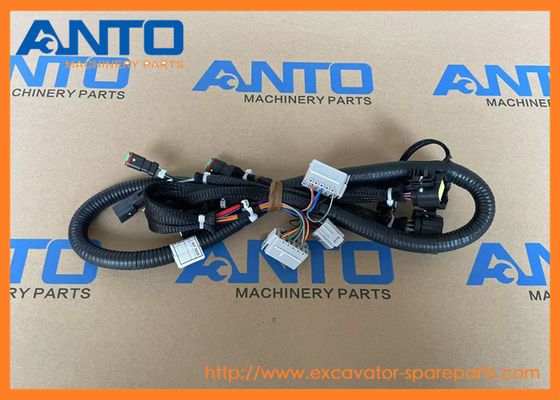

21Q6-10604 21Q610604 Console Harness Excavator Electric Parts Fitting For HYUNDAI R1200-9

• 21Q6-10604 21Q610604 Console Harness Excavator Electric Parts Fitting For HYUNDAI R1200-9

• Specification

• Function

1.Power and Signal Transmission: Carries electrical power and data signals to ensure seamless operation of console features, enabling functions like charging devices, controlling cabin temperature, and shifting gears.

2.Vehicle Integration: Integrates these components into the vehicle's electrical architecture, ensuring they communicate correctly with other systems.

3.Reliability: Designed to meet Hyundai's engineering standards and undergoes rigorous testing to ensure long-term performance and safety.

• Application

• More harness parts Applied To HYUNDAI machine

• Diagram parts list

Pos.	Part No	Qty	Parts name	Comments
1	21Q4-20812	[1]	ACCEL DIAL ASSY
2	21NA-10600	[1]	STRAP-EARTH
3	21Q6-10504	[1]	HARNESS-LH,CONSOLE
4	21Q6-10604	[1]	HARNESS-RH,CONSOLE
5	21E6-10460	[3]	COVER
6	21Q6-21640	[1]	FLANGE
7	21Q6-21630	[1]	PLATE
7	21Q6-21570	[1]	PLATE
8	25D1-10650	[1]	CLIP ASSY
9	21N4-01111	[1]	CLIP-ECONO SEAL
10	21E7-0612	[1]	PLATE-CONNECTOR
11	25D1-10670	[1]	CLIP
12	21E9-00170	[1]	CLIP-HARNESS
13	21N4-01130	[4]	PLATE-CLIP
14	S131-041046	[2]	SCREW-W/WASHER
15	S037-102026	[4]	BOLT-W/WASHER
16	S035-081526	[4]	BOLT-W/WASHER
16	S035-082026	[2]	BOLT-W/WASHER
17	S151-050166	[4]	SCREW-TAPPING
18	21Q4-40300	[1]	CONNECTOR-AIR	OPTION
19	21Q4-40011	[1]	SWITCH-AIR COMPROSSOR	OPTION
20	21QA-22100	[1]	SWITCH-EMERGENCY STOP
20	21QA-22101	[1]	SWITCH-EMERGENCY STOP
21	S035-061526	[2]	BOLT-W/WASHER
22	21Q4-02210	[1]	DECAL-EMERGENCY SW
23	21Q6-21810	[1]	GROMMET
