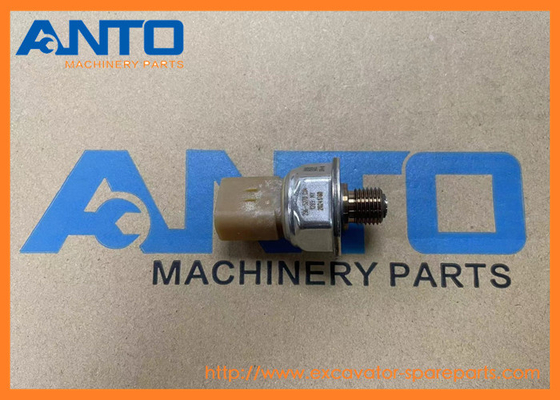

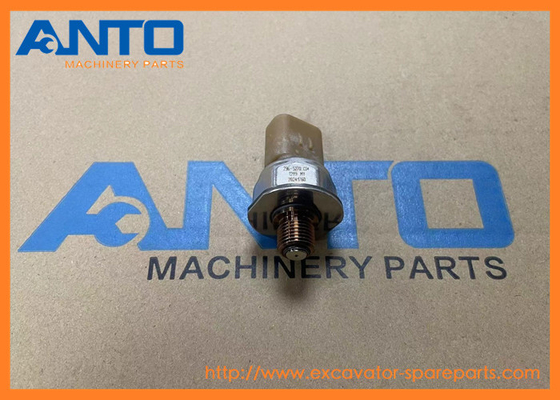

2965270 296-5270 Sensor Tekanan Fitting Wheel Loader 950K 962K 966K 966M 966M XE 972K 972M

Gambar besar : 2965270 296-5270 Sensor Tekanan Fitting Wheel Loader 950K 962K 966K 966M 966M XE 972K 972M

Detail produk:

Tempat asal:	Cina
Nama merek:	OEM
Nomor model:	950K 962K 966K 966M 966M XE 972K 972M 972M XE 980K 980K HLG 980M 982M

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pcs
Harga:	dapat dinegosiasikan
Kemasan rincian:	Kotak kayu untuk bagian yang berat, karton kertas untuk bagian yang ringan
Waktu pengiriman:	3-7 Hari Kerja
Syarat-syarat pembayaran:	T/T, D/P, D/A, Western Union, L/C, MoneyGram
Menyediakan kemampuan:	100-2000

Kontak

Detil Deskripsi produk

Nomor Model:	950K 962K 966K 966M 966M XE 972K 972M 972M XE 980K 980K HLG 980M 982M	Nama produk:	Sensor tekanan
Nomor Bagian:	2965270 296-5270	Pengemasan:	Karton ekspor standar
Angkutan:	Melalui laut/udara Dengan mengungkapkan	Jaminan:	6/12 Bulan

2965270 296-5270 Sensor Tekanan Fitting Wheel Loader 950K 962K 966K 966M 966M XE 972K 972M

Spesifikasi

Aplikasi	C A T Bagian listrik
Nama Bagian	Sensor Tekanan
Bagian No	2965270 296-5270
Model	950K 962K 966K 966M 966M XE 972K 972M 972M 980K 980K HLG 980M 982M
Waktu pengiriman	Stok untuk pengiriman mendesak
Kondisi	Baru, kualitas OEM
MOQ	1 PCS
Desain	dibuat di RRC
Alat transportasi	Dengan kapal/udara, DHL FEDEX UPS TNT Express
Pengemasan	Sesuai permintaan atau kemasan standar

Model yang berlaku

Motor Grader 120M 120M 2 12M 12M 2 12M 3 12M 3 AWD 140M 140M 2 140M 3 140M 3 AWD

14M 160M 160M 2 160M 3 160M 3 AWD 16M 24M
PL83 PL87 pipa
Tractor tipe jalur D6T LGP D6T XL D7E D7E LGP D8R D8T D9T
Wheel Loader 950K 962K 966K 966M 966M XE 972K 972M 972M XE 980K 980K HLG 980M 982M
Traktor roda 621H
PENGELANTAR roda-scraper 621K 623K 623K LRC 627K 627K LRC

Lebih banyak sensor lain yang berlaku untuk peralatan CATAku tidak tahu.

3447389 SENSOR GP-PRESSURE

120M, 120M 2, 12M 2, 12M 3, 12M 3 AWD, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160M, 160M 2, 160M 3, 160M 3 AWD, 16M, 2384C, 2484C, 308E SR, 525D, 535D, 545D, 555D, 559C, 579C, 824K, 836K, 844K, Aku tidak tahu.

2905825 SENSOR GP-PRESSURE

924G, 924GZ, 924H, 924HZ, 928H, 928HZ, 930G, AP-600D, AP-655D, AP1000E, AP1055E, AP555E, BG1000E, BG1055E, BG500E, CW-34, IT28G, M313C, M313D, M315C, M315D, M315D 2, M316C, M316D, M317D 2, M318CM318Aku tidak tahu.

4343436 SENSOR AS-Pressure

311D LRR, 311F LRR, 312D, 312D L, 312D2, 314D CR, 314D LCR, 315D L, 318D2 L, 319D L, 319D LN, 320D, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 321D LCR, 323D L, 323D LN, 32Aku tidak tahu.

3491178 SENSOR-tekanan

525D, 535D, 545D, 824K, 825K, 826K, 834K, 836K, 844K, 924K, 930K, 938K, 950K, 962K, 963D, 966K, 966M, 966M XE, 972K, 972M, 972M XE, 980H, 980K, 980M, 988H, 988K, 990K, 992K, 993K, 994H, CB-44B, Aku tidak tahu.

3447390 SENSOR GP-PRESSURE

311F LRR, 312E, 312E L, 314E CR, 314E LCR, 316E L, 318E L, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 323D2 L, 323E L, 324E L, 329E, 329E L, 329E LN, 330D, 330D L, 336D, 336D L, 336D2, 3Aku tidak tahu.

3447392 SENSOR GP-PRESSURE

311F LRR, 312E, 312E L, 314E CR, 314E LCR, 316E L, 318E L, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 323E L, 324E L, 324E LN, 329E, 329E L, 329E LN, 336E, 336E H, 336E HVG, 336E L, 336E LH,336EAku tidak tahu.

2610420 SENSOR GP-PRESSURE

2470C, 2570C, 2670C, 2864C, 553C, 563C, 573C, 584, 586C, 906H, 907H, 908H, 953D, 963D, 973D, D3K XL, D4K XL, D5K LGP, D6K, D6K LGP, D6R III, D6T, D7R II, PL61

3355321 SENSOR GP-PRESSURE

521B, 522B, 541 2, 552 2, 777G, 785D, 906H2, 907H2, 908H2, 910K, 914K, 953D, 963D, 973D, D3K XL, D4K XL, D5K LGP, D6K LGP, D6K XL, D6T, PL61

2965270 SENSOR GP-PRESSURE

120M, 120M 2, 12M, 12M 2, 12M 3, 12M 3 AWD, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160M, 160M 2, 160M 3, 160M 3 AWD, 16M, 24M, 621H, 621K, 623H, 623K, 623K, 627H, 627K, 627K, 950K, 962K, 966K,Aku tidak tahu.

4195574 SENSOR GP-PRESSURE

966M, 966M XE, 972M, 972M XE,

3447390 SENSOR GP-PRESSURE

120M, 120M 2, 12M 2, 12M 3, 12M 3 AWD, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160M, 160M 2, 160M 3, 160M 3 AWD, 16M, 2384C, 2484C, 308E SR, 525D, 535D, 545D, 555D, 559C, 579C, 824K, 834K, 836K, 845K Aku tidak tahu.

2905826 SENSOR GP-PRESSURE

4343437 sensor tekanan

3491179 SENSOR-tekanan

3447391 SENSOR GP-PRESSURE

311F LRR, 312E, 312E L, 314E CR, 314E LCR, 316E L, 318E L, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 323D2 L, 323E L, 324E L, 329E, 329E L, 329E LN, 330D, 330D L, 336D, 336D L, 336D2, 4Aku tidak tahu.

3447393 SENSOR GP-PRESSURE

Diagram daftar bagian

Posisi.	Bagian No.	Qty	Nama bagian	Komentar
1	371-4831 I	[1]	Selang AS
2	106-0430	[1]	MANIFOLD
3	171-6712	[2]	TEE AS
			(SATU-SATU TERTINGGI)
	6V-8398	[2]	SEAL-O-RING
	156-6400	[1]	TEE-SWIVEL-ORFS
4	172-5761	[2]	TEE AS
			(SATU-SATU TERTINGGI)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	126-8306	[1]	TEE-O-RING
5	197-7382	[1]	Clamp
6	296-5270	[1]	SENSOR GP-PRESSURE (Minyak rem)
7	367-0359	[1]	PLATE AS
	8T-3490 M	[1]	NUT-WELD (M10X1.5-THD)
	133-3260	[6]	SPACER (11X19X10-MM THK)
8	371-4838 I	[1]	Selang AS
9	375-2816 J	[1]	Kontrol rem GP-Klep
10	389-4088 I	[1]	Selang AS
11	389-4195	[1]	BRACKET AS
	6V-9632 M	[2]	NUT-WELD (M6X1-THD)
	8T-3490 M	[1]	NUT-WELD (M10X1.5-THD)
12	389-4207	[1]	BRACKET AS
	8T-3597 M	[2]	NUT-WELD (M12X1.75-THD)
13	389-4276 I	[2]	Selang AS
14	389-4278 I	[1]	Selang AS
15	462-5794 I	[1]	Selang AS
16	389-4349 I	[1]	Selang AS
17	486-1191 I	[1]	Selang AS
18	433-6001 I	[1]	Selang AS
19	433-6003 I	[1]	Selang AS
20	389-4368 I	[1]	Selang AS
21	441-9456 I	[2]	Selang AS
22	448-4308 Y	[1]	MANIFOLD GP-CONTROL (Minyak rem)
23	132-7551	[2]	SPACER (11X19X6-MM THK)
24	091-0081	[1]	SPACER (10,5X20X10-MM THK)
25	133-6934	[3]	SPACER (11X20X25-MM THK)
26	136-4992	[1]	SPACER (11X20X40-MM THK)
27	142-3953 M	[1]	STUD (M10X1.5-THD)
28	148-8318	[1]	Konektor AS
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8634	[1]	Konektor
29	148-8336	[1]	Konektor AS
	3J-1907	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-9873	[1]	Konektor
30	148-8339	[1]	Konektor AS
	6V-8716	[1]	Konektor (LANGsung)
	6V-9746	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
31	148-8340	[2]	Konektor AS
			(SATU-SATU TERTINGGI)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8639	[1]	Konektor
32	148-8353	[2]	Elbow AS
			(SATU-SATU TERTINGGI)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-9001	[1]	Lempung
33	148-8359	[1]	Elbow AS
	3K-0360	[1]	SEAL-O-RING
	6V-9746	[1]	SEAL-O-RING
	6V-9877	[1]	Lempung
34	148-8364	[4]	Elbow AS
			(SATU-SATU TERTINGGI)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8625	[1]	Lempung
35	148-8365	[1]	Elbow AS
	3J-1907	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	8T-6876	[1]	Lempung
36	148-8370	[3]	Elbow AS
			(SATU-SATU TERTINGGI)
	6V-8398	[1]	SEAL-O-RING
	6V-9851	[1]	Lempung
37	148-8392	[1]	Elbow AS
	6V-9746	[1]	SEAL-O-RING
	6V-9853	[1]	Lempung
38	148-8411	[1]	PLUG AS
	3K-0360	[1]	SEAL-O-RING
	9S-4185	[1]	PLUG (3/4-16-THD)
39	148-8435	[1]	TEE AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[2]	SEAL-O-RING
	6V-8781	[1]	TEE
40	148-8444	[3]	TEE AS-SWIVEL
			(SATU-SATU TERTINGGI)
	6V-8398	[2]	SEAL-O-RING
	6V-9837	[1]	TEE-SWIVEL
41	164-5567	[2]	Kopling AS-QUICK DISCONNECT (pria)
			(SATU-SATU TERTINGGI)
	6V-3965	[1]	FITNING (MEMPULANGKAN SEKARANG)
	214-7568	[1]	SEAL-O-RING
42	164-5624	[1]	Elbow AS
	3J-1907	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	9X-2085	[1]	Lempung
43	241-6215	[2]	Elbow AS
			(SATU-SATU TERTINGGI)
	3J-1907	[1]	SEAL-O-RING
	6V-8076	[1]	Lempung
44	164-8908	[2]	Konektor AS
			(SATU-SATU TERTINGGI)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	8T-0077	[1]	Konektor
45	168-1968	[1]	TEE AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	126-6872	[1]	TEE
47	198-4777	[1]	WASHER-HARD (11X25X10-MM THK)
48	1J-9671	[1]	SEAL-O-RING
49	200-6345	[2]	PEMANGKAT SEDEL (DUA SWIVEL)
50	204-2281	[6]	Kabel tali
51	307-5172	[4]	SPACER (13.5X25X60-MM THK)
52	313-9198	[2]	CLIP
53	344-5675 M	[4]	NUT (M10X1.5-THD)
54	3G-8054	[2]	CLIP (TAB)
55	3G-8057	[2]	CLIP (SLOT)
56	4S-1962	[2]	CLIP (Loop)
57	6D-4246	[4]	CLIP (Loop)
58	6V-0852	[2]	CAP-DUST
59	6V-0974	[2]	GROMMET
60	6V-9829	[1]	CAP (ORFS)
61	7D-7233	[1]	CLIP (Loop)
62	7S-1912	[6]	CLIP
63	7X-7729	[6]	WASHER (11X25X3-MM THK)
64	8T-4121	[26]	WASHER-HARD (11X21X2.5-MM THK)
65	8T-4136 M	[4]	BOLT (M10X1.5X25-MM)
66	8T-4139 M	[1]	BOLT (M12X1.75X30-MM)
67	8T-4172 M	[2]	BOLT (M10X1.5X80-MM)
68	8T-4178 M	[3]	BOLT (M10X1.5X90-MM)
69	8T-4185 M	[1]	BOLT (M10X1.5X50-MM)
70	8T-4186 M	[1]	BOLT (M10X1.5X40-MM)
71	8T-4195 M	[9]	BOLT (M10X1.5X30-MM)
72	8T-4196 M	[2]	BOLT (M10X1.5X35-MM)
73	8T-4223	[1]	WASHER-HARD (13.5X25.5X3-MM THK)
74	8T-5005 M	[1]	BOLT (M10X1.5X70-MM)
75	8T-6466 M	[5]	Bolt (M10X1.5X60-MM)
76	155-3502	[1]	Adapter AS
	3E-7403	[1]	Adaptor
	6V-8398	[1]	SEAL-O-RING
77	177-2215	[1]	Klem ganda tali
78	6V-8398	[4]	SEAL-O-RING
79	6D-4244	[6]	CLIP (Loop)

			KIT PEMBERAHAN yang tersedia:
	397-2326 J	[1]	KIT-SEAL
			(Termasuk O-RING, QUAD RING, BOOT & CUP)
	Aku		REFERENSI KE SISTEM INFORMASI HIDRAULIK
	J		KIT MARKED J SERVICES PART (s) MARKED J
	M		Bagian Metrik
	Y		Ilustrasi terpisah

2965270 296-5270 Sensor Tekanan Fitting Wheel Loader 950K 962K 966K 966M 966M XE 972K 972M 0

Kami bisa memasok suku cadang berikut

1 Bagian hidraulik: pompa hidraulik, katup utama, silinder hidraulik, drive akhir, motor perjalanan, mesin ayunan, motor ayunan dll.

2 Bagian mesin: mesin, piston, ring piston, blok silinder, kepala silinder, poros engkol, turbocharger, pompa injeksi bahan bakar, motor pemicu dan alternator dll.

3 Bagian bagian bawah karet: roller rel, roller Carrier, Track Link, sepatu rel, Sprocket, Idler dan bantalan Idler dll.

4 Bagian kabin: kabin operator, kabel, monitor, pengontrol, kursi, pintu dll.

5 Bagian pendingin: radiator, AC, kompresor, after cooler dll.

6 Bagian lain: Kit layanan, lingkaran ayunan, kap mesin, sendi ayunan, tangki bahan bakar, filter, boom, lengan, ember dll.
