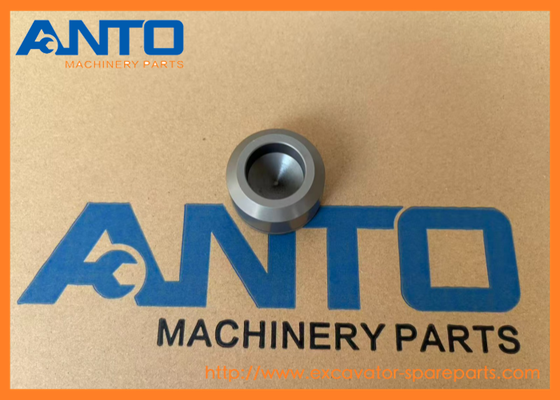

- 39Q8-41150 Piston Excavator Suku Cadang Pemasangan Untuk R260LC-9S R300LC-9A R320LC-9
| Nama |
Piston |
| Nomor Suku Cadang |
39Q8-41150 |
| Model Mesin |
R290LC7A R450LC7 R500LC7 RD340LC-7 |
| Kategori |
Motor Jalan |
| Waktu Tunggu |
1-3 HARI |
| Kualitas |
Baru, Kualitas OEM |
| MOQ |
1 PCS |
| Cara Transportasi |
Laut/udara, DHL FEDEX UPS TNT EMS |
| Pengemasan |
Sesuai permintaan atau kemasan standar |
| 1. Mengubah rotasi mekanis menjadi tekanan hidrolik. Piston bergerak bolak-balik di dalam lubang silinder, mengubah volume rongga tertutup untuk menyedot dan mengeluarkan oli hidrolik, menghasilkan aliran hidrolik bertekanan tinggi untuk menggerakkan aksi ekskavator. |
| |
| 2. Mentransmisikan beban tekanan. Menahan gaya hidrolik yang besar dan mentransfer daya antara pelat miring dan blok silinder. |
| |
| 3. Menyegel ruang oli. Bekerja sama dengan sepatu geser dan lubang silinder untuk mencegah kebocoran oli bertekanan tinggi, memastikan efisiensi volumetrik pompa hidrolik. |
| |
| 4. Mencocokkan sudut pelat miring. Langkah piston berubah dengan sudut kemiringan pelat miring, mewujudkan perpindahan variabel dan aliran keluaran pompa utama yang dapat disesuaikan. |
EKSCAVATOR BERODA SERI 7 R290LC7A R450LC7 R500LC7 RD340LC-7
EKSCAVATOR BERODA SERI 9 R250LC9 R250LC9A R260LC9S R290LC9 R290LC9MH R300LC9A R300LC9S R300LC9SH R320LC9 R330LC9A R330LC9S R330LC9SH R430LC9 R430LC9A R430LC9SH R480C9MH R480LC9 R480LC9A R480LC9S R520LC9 R520LC9A R520LC9S
EKSCAVATOR BERODA SERI F HX260L HX300L HX330L HX430L HX480L HX520L Hyundai
- Lebih banyak suku cadang piston lainnya cocok untuk mesin HYUNDAI
| 4934860 PISTON-ENGINE |
| 110D-7E, HL730-7A, HL730-9, HL730-9S, HL730-9SB, HL730TM-9, HL730TM7A, HL740-7A, HL740-9, HL740TM-7A, HL740TM-9, HL757-7A, HL757-9, HL757-9S, HL757-9SB, HL757TM-9, HL760-7A, HL760-9, HL760-9SB, R290LC... |
| |
| 3917707 PISTON |
| HL760-9S, R300LC9S, R320LC7, R330LC9S |
| |
| XKBN-01978 PISTON |
| R380LC9DM, R520LC9 |
| |
| ZTAJ-00088 PISTON-BRAKE |
| R480C9MH, R480LC9, R480LC9A, R480LC9S, R520LC9, R520LC9A, R520LC9S |
| |
| 31Y1-35586 PISTON |
| HX480L, HX520L, R500LC7, R800LC-9, R800LC7A, RD510LC-7 |
| |
| XKBN-02658 PISTON |
| BREAKER, R520LC9, R520LC9A, R520LC9S |
| |
| ZSAE-00245 PISTON |
| HL770-F, HL780-F, HX480L, HX520L, R700LC9 |
| |
| ZSAE-01084 PISTON |
| HL780-F, HX480L, HX520L |
| |
| ZSAE-01077 PISTON RING KIT |
| HL780-F, HX480L, HX520L |
| |
| 39K7-41380 PISTON-PARKING |
| HX235L, HX260L |
| |
| 39Q8-41332 PISTON |
| HX300L, HX330L, HX480L, HX520L, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH |
| |
| XJBN-01932 PISTON |
| R330LC9S |
| |
| 3930189 PISTON-ENGINE |
| R250LC3 |
| |
| 3930188 PISTON-ENGINE |
| R250LC3 |
| |
| 3930187 PISTON-ENGINE |
| R250LC3 |
| |
| 31Y1-12770 PISTON |
| R250LC3 |
| |
| 31Y1-09790 PISTON |
| R250LC3 |
| |
| 1320-159 PISTON |
| R250LC3, R450LC3A |
| |
| XKCD-03624 PISTON NUT |
| HX235L, R235LCR9, R235LCR9A |
| |
| XKCD-03622 PISTON |
| HX235L, R235LCR9, R235LCR9A |
| |
| XKDE-02389 PISTON-ENGINE |
| R210W9S |
| |
| XKDE-02386 PISTON-ENGINE |
| R210W9S |
| |
| XKDE-01277 PISTON-ENGINE |
| R260LC9S |
| |
| XJDD-01289 PISTON |
| HW210, R210W-9, R210W9A, R210W9AMH, R210W9MH |
| |
| 39Q8-41331 PISTON |
| R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, RD340LC-7 |
| |
| 39Q8-41370T1 PISTON-PARKING |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| |
| XKDE-01278 PISTON,ENGINE |
| R260LC9S |
| |
| 38A01-11 PISTON SUB |
| R280LC |
- Daftar suku cadang katalog
| Pos. |
Nomor Suku Cadang |
Jml |
Nama Suku Cadang |
Komentar |
| *. |
38K8-40100 |
[1] |
TRAVEL MOTOR ASSY |
|
| *. |
38K8-40101 |
[1] |
TRAVEL MOTOR ASSY |
|
| *-1. |
38K8-41100 |
[1] |
TRAVEL MOTOR |
|
| 1 |
39Q8-41110 |
[1] |
CASING |
|
| K2. |
39Q6-41120 |
[13] |
PLUG |
|
| 3 |
39Q8-41120 |
[1] |
SEAL-OIL |
|
| 4 |
39Q8-41130 |
[1] |
BLOCK-THRUST |
|
| NK5. |
S632-095004 |
[1] |
O-RING |
|
| 6 |
S602-100001 |
[1] |
RING-RETAINING,C TYPE |
|
| NK7. |
39Q8-41150 |
[1] |
PISTON |
|
| NK8. |
39Q8-41160 |
[1] |
SEAL-PISTON |
|
| 9 |
39Q8-41170 |
[1] |
SHAFT |
|
| 10 |
39Q8-41180 |
[1] |
BEARING-CYL.ROLLER |
|
| K11. |
39Q8-41190 |
[1] |
BEARING-NEEDLE |
|
| 12 |
S601-055001 |
[1] |
RING-RETAINING,C TYPE |
|
| 13 |
S751-040004 |
[1] |
RING-RETAINING,C TYPE |
|
| 14 |
39Q8-41210 |
[1] |
PLATE-THRUST |
|
| 15 |
39Q8-41220 |
[1] |
BALL-STEEL |
|
| 16 |
39Q8-41230 |
[2] |
PIVOT |
|
| 17 |
39Q8-41240 |
[1] |
PLATE-SWASH |
|
| NK18. |
39Q8-41270 |
[1] |
BLOCK-CYLINDER |
|
| NK19. |
39Q8-41280 |
[9] |
SPRING |
|
| NK20. |
39Q8-41300 |
[1] |
GUIDE-BALL |
|
| NK21. |
39Q8-41310 |
[1] |
PLATE-RETAINER |
|
| NK22. |
39Q8-41321 |
[9] |
PISTON ASSY |
|
| N22-1. |
39Q8-41332 |
[1] |
PISTON |
|
| N22-2. |
39Q8-41340 |
[1] |
SHOE |
|
| 23 |
39Q8-41351 |
[6] |
PLATE-FRICTION |
|
| 24 |
39Q8-41360 |
[7] |
PLATE-SEPARATE |
|
| 25 |
39Q8-41370 |
[1] |
PISTON-PARKING |
|
| 25 |
39Q8-41370T1 |
[1] |
PISTON-PARKING |
|
| NK26. |
39Q8-41380 |
[1] |
D-RING |
|
| NK27. |
39Q8-41390 |
[1] |
D-RING |
|
| 28 |
39Q8-41600 |
[1] |
PLATE-VALVE |
|
| 30 |
39Q8-41420 |
[14] |
SPRING |
|
| *-2. |
@ |
[1] |
TRAVEL REDUCTION GEAR |
|
| K. |
39Q8-41140 |
[1] |
PLUG KIT |
LIHAT ILUSTRASI |
| K. |
39Q8-41250 |
[1] |
ROTARY KIT |
LIHAT ILUSTRASI |
| K. |
39Q8-41260 |
[1] |
CYLINDER BLOCK KIT |
LIHAT ILUSTRASI |
| K. |
39Q8-41290 |
[1] |
RETAINER KIT |
LIHAT ILUSTRASI |
| K. |
39Q8-41560 |
[1] |
O-RING KIT |
LIHAT ILUSTRASI |
| K. |
39Q8-41570 |
[1] |
D-RING KIT |
LIHAT ILUSTRASI |
| K. |
38K8-41440K |
[1] |
COVER KIT-REAR |
LIHAT ILUSTRASI |
| N. |
@ |
[AR] |
SUKU CADANG TIDAK DIPASOK |
|
- Kami dapat menyediakan suku cadang berikut
1 Suku cadang hidrolik: pompa hidrolik, katup utama, silinder hidrolik, final drive, motor jalan, mesin ayun, motor ayun, dll.
2 Suku cadang mesin: rakitan mesin, piston, ring piston, blok silinder, kepala silinder, poros engkol, turbocharger, pompa injeksi bahan bakar, motor starter dan alternator, dll.
3 Suku cadang undercarriage: Roller track, Roller carrier, Track Link, Track shoe, Sprocket, Idler dan bantalan idler, dll.
4 Suku cadang kabin: kabin operator, harness kabel, monitor, kontroler, kursi, pintu, dll.
5 Suku cadang pendingin: Radiator, AC, kompresor, after cooler, dll.
6 Suku cadang lainnya: Service kit, swing circle, kap mesin, swing joint, tangki bahan bakar, filter, boom, arm, bucket, dll.
1. Tawarkan produk berkualitas tinggi & kompetitif
2. Dukungan garansi 12 bulan
3. 100% diuji sebelum pengiriman
4. Pengiriman tepat waktu
5. Berbagai macam Sensor Tekanan Oli, Sensor Level Bahan Bakar, Sensor Suhu, Sensor Kecepatan untuk ekskavator
6. Lebih dari 15 tahun pengalaman produksi dan 11 tahun pengalaman perdagangan luar negeri
7. Tim QC profesional
8. Tim penjualan terbaik, layanan 24 jam
- Pengemasan dan Pengiriman
Detail Kemasan :
kemasan dalam : film plastik untuk membungkus
kemasan luar : kayu
Pengiriman :
dalam waktu 3 hari setelah pembayaran diterima, melalui udara atau ekspres atau laut berdasarkan
jumlah dan keadaan darurat.
1. Melalui Kurir: DHL, UPS, FEDEX, TNT adalah perusahaan kurir utama yang kami ajak bekerja sama,
2. Melalui Udara: Pengiriman dari pelabuhan udara Guangzhou ke pelabuhan udara kota tujuan pelanggan.
3. Melalui Laut: Pengiriman dari pelabuhan Huangpu .
