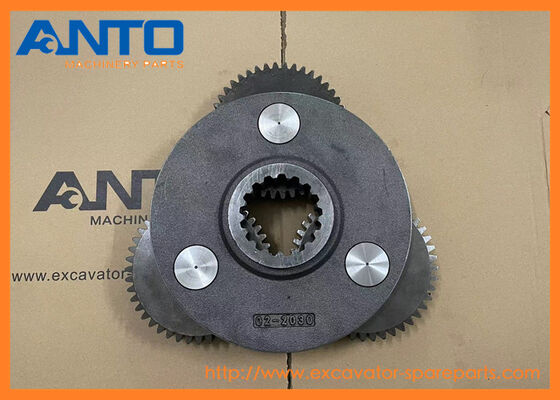

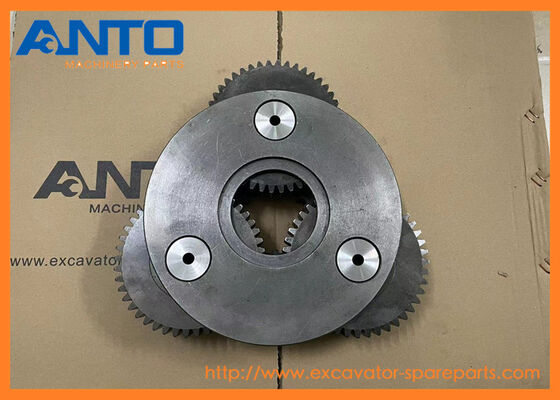

- 7Y-1432 7Y1432 Planet Carrier Excavator Spare Parts For 315C 318C 319C 320B 321B
| Name |
Planet Carrier |
| Parts No |
7Y-1432 7Y1432 |
| Machine Model |
315C 318B 318C 319C 320B 320B 320C 320E 321B 322B 323D L |
| Category |
Final Drive Parts |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
| It holds the planet gears in precise alignment around the sun gear. |
| It transmits torque from the gear set to the track drive sprocket, moving the machine. |
| It withstands extreme radial and axial loads during digging, traveling, and turning. |
EXCAVATOR 315C 315D L 318B 318C 318E L 319C 319D 319D L 319D LN 320 L 320B 320C 320C FM 320C L 320D 320D FM 320D GC 320D L 320D LN 320D LRR 320D RR 320D2 320D2 GC 320D2 L 320E 320E L 320E LN 320E LRR 320E RR 320N 321B 321C 321D LCR 322 322 FM L 322 LN 322B 322B L 322B LN 323D L 323D LN 323D2 L 323E L
UNDERCARRIAGE OEMS
- More other carrier parts fit for C A T machine
| 1218139 CARRIER |
| M315, M315C, M316C, M318 |
| |
| 8U5989 CARRIER-PLANETARY |
| 206B, 212B, M315, M315C, M316C, M318, M318C, M318C MH, M320, M322C |
| |
| 1324344 CARRIER |
| M312, M313C |
| |
| 1324288 CARRIER-PLANETARY |
| M312, M313C |
| |
| 1550823 CARRIER |
| M312, M313C, M313D, M315, M315C, M315D, M315D 2, M316C, M316D, M317D 2 |
| |
| 3756310 CARRIER-PLANETARY |
| M313C, M313D, M315C, M315D, M315D 2, M316C, M316D, M317D 2, M318C, M318D, M318D MH, M322C, M322D, M322D MH |
| |
| 1550823 CARRIER |
| M312, M313C, M313D, M315, M315C, M315D, M315D 2, M316C, M316D, M317D 2 |
| |
| 1484749 CARRIER-PLANETARY |
| 315C, 318B |
| |
| 1582457 CARRIER GP |
| 317B LN, 318B |
| |
| 7Y1433 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| |
| 7Y1432 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| |
| 1550173 CARRIER GP |
| 315B L, 317B LN, 318B |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
7Y-1434 |
[1] |
SPACER (40X69.5X6-MM THK) |
|
| 2 |
096-1773 B |
[1] |
SHIM (0.15-MM THK) |
|
| |
096-1774 B |
[1] |
SHIM (0.3-MM THK) |
|
| |
096-1775 B |
[1] |
SHIM (0.4-MM THK) |
|
| |
096-1776 B |
[1] |
SHIM (0.5-MM THK) |
|
| |
096-1777 B |
[1] |
SHIM (0.6-MM THK) |
|
| |
096-1778 B |
[1] |
SHIM (0.7-MM THK) |
|
| |
096-1779 B |
[1] |
SHIM (0.8-MM THK) |
|
| |
096-1780 B |
[1] |
SHIM (1-MM THK) |
|
| |
096-1781 B |
[1] |
SHIM (1.6-MM THK) |
|
| 3 |
114-1485 |
[1] |
HOUSING-MOTOR |
|
| 4 |
114-1497 |
[1] |
SEAL GP-DUO-CONE |
|
| 5 |
096-6412 |
[2] |
BALL BEARING |
|
| 6 |
114-1486 |
[1] |
HOUSING |
|
| 7 |
114-1539 |
[4] |
PIN-DOWEL |
|
| 8 |
7Y-1436 |
[1] |
GEAR-COUPLING |
|
| 9 |
6D-0692 |
[1] |
SEAL-O-RING |
|
| 10 |
095-1270 M |
[2] |
SETSCREW-SOCKET (M12X1.75X30-MM) |
|
| 11 |
6V-5686 M |
[16] |
BOLT (M16X2X50-MM) |
|
| 12 |
7Y-0223 |
[3] |
SHAFT-PLANETARY |
|
| 13 |
094-1542 |
[6] |
BEARING-ROLLER |
|
| 14 |
7Y-1431 |
[3] |
GEAR-PLANETARY (30-TEETH) |
|
| 15 |
094-1528 |
[6] |
WASHER (53X84X1-MM THK) |
|
| 16 |
095-0891 |
[6] |
PIN-SPRING |
|
| 17 |
6I-6585 |
[3] |
GEAR-PLANETARY (44-TEETH) |
|
| 18 |
094-0616 |
[3] |
BEARING AS-ROLLER |
|
| 19 |
3E-2338 |
[2] |
PLUG-PIPE |
|
| 20 |
7M-8485 |
[2] |
SEAL-O-RING |
|
| 21 |
7Y-1426 |
[1] |
COVER |
|
| 22 |
7Y-0225 |
[3] |
SHAFT-PLANETARY |
|
| 23 |
094-0611 |
[6] |
WASHER (47.3X76X1-MM THK) |
|
| 24 |
094-0580 |
[1] |
PLATE (10-MM THK) |
|
| 25 |
6I-6583 |
[1] |
GEAR-SUN (13-TEETH) |
|
| 26 |
7Y-1430 |
[1] |
GEAR-SUN (17-TEETH) |
|
| 27 |
7Y-1558 |
[1] |
SPACER (90X119.6X7.5-MM THK) |
|
| 28 |
7Y-1432 |
[1] |
CARRIER |
|
| 29 |
7X-2568 M |
[16] |
BOLT (M20X2.5X180-MM) |
|
| 30 |
8T-4123 |
[16] |
WASHER (3.62X5.75X0.375-MM THK) |
|
| 31 |
1U-8846 B |
|
SEALANT-GASKET |
|
| 32 |
102-6456 |
[1] |
GEAR-RING (79-TEETH) |
|
| 33 |
102-6454 |
[1] |
GEAR-RING (104-TEETH) |
|
| 34 |
7Y-1433 |
[1] |
CARRIER |
|
| |
B |
|
USE AS REQUIRED |
|
| |
M |
|
METRIC PART |
|
