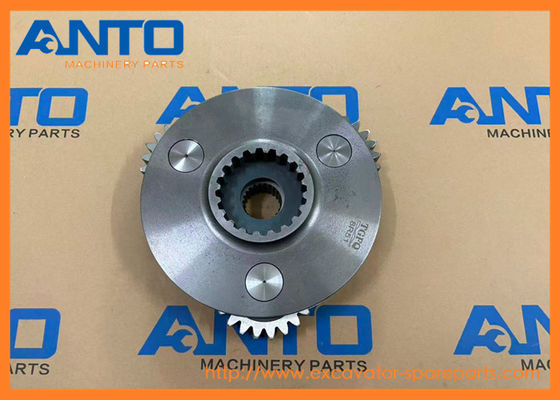

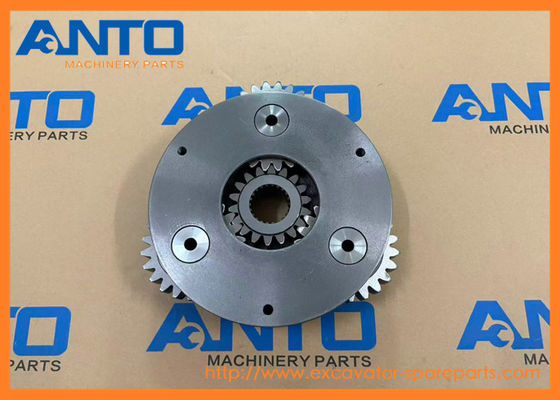

- 39Q6-12180 Carrier Assy Suku Cadang Excavator HYUNDAI Cocok Untuk R180LC-9S R210LC-9
| Nama |
Carrier Assy |
| Nomor Suku Cadang |
39Q6-12180 |
| Model Mesin |
R160W9A R170W9 R180W9A R180W9S R210W-9 |
| Kategori |
Gear Reduksi Ayun |
| Waktu Tunggu |
1-3 HARI |
| Kualitas |
Baru, kualitas OEM |
| MOQ |
1 PCS |
| Cara Transportasi |
Melalui laut/udara, DHL FEDEX UPS TNT EMS |
| Pengemasan |
Sesuai permintaan atau kemasan standar |
1. Kapasitas beban tinggi: Cocok untuk beban berat dan medan kasar.
2. Efisiensi transmisi tinggi: Lebih dari 96% untuk mengurangi konsumsi energi.
3. Struktur ringkas: Mudah dipasang dan dirawat di ruang terbatas.
4. Daya tahan tinggi: Terbukti melalui lebih dari 1.000 jam pengujian bangku dan lapangan.
EXCAVATOR RODA KETELURUSAN SERI 7 R215LC7 RD210-7 RD210-7V RD220-7
EXCAVATOR RODA KETELURUSAN SERI 9 R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A RB220LC9S RD220LC9
EXCAVATOR RODA BERODA SERI 9 R160W9A R170W9 R180W9A R180W9S R210W-9 R210W9A R210W9AMH R210W9MH R210W9S
EXCAVATOR RODA KETELURUSAN SERI F HX160L HX220L HX220NL
EXCAVATOR RODA BERODA SERI F HW210 Hyundai
- Lebih banyak carrier lain suku cadang cocok untuk mesin HYUNDAI
| XKAQ-00653 CARRIER 1 ASSY |
| R110-7, R110-7A, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC7A, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, RB220LC9S, RD210-7, RD210-7V, RD220-7, RD220LC9 |
| |
| ZGAQ-04465 CARRIER-PLANET |
| R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180W9A, R180W9S |
| |
| ZGAQ-04466 CARRIER-PLANET |
| R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180W9A, R180W9S |
| |
| ZGAQ-03984 CARRIER-PLANETARY |
| R170W9S, R180W9S |
| |
| 39Q6-12190 CARRIER 2 |
| HW210, HX160L, HX220L, HX220NL, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9... |
| |
| 39Q6-12260 CARRIER NO.1 |
| HW210, HX160L, HX220L, HX220NL, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9... |
| |
| 39Q6-12180 CARRIER ASSY KIT 1 |
| HW210, HX160L, HX220L, HX220NL, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W... |
| |
| 39Q6-42190 CARRIER 2 |
| HX220L, HX220NL, HX235L, HX260L, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD210-7, RD210... |
| |
| 39Q6-42260 CARRIER 1 |
| HX220L, HX220NL, HX235L, HX260L, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD210-7, RD210... |
| |
| 39Q6-42250 CARRIER ASSY KIT 1 |
| HX220L, HX220NL, HX235L, HX260L, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD210-7, RD210... |
| |
| 39Q6-42180 CARRIER ASSY KIT 2 |
| HX220L, HX220NL, HX235L, HX260L, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB220LC9S |
- Daftar suku cadang katalog
| Pos. |
Nomor Suku Cadang |
Jml |
Nama Suku Cadang |
Komentar |
| *. |
39K6-10150 |
[1] |
SWING MOTOR ASSY |
*-1, *-2, TIPE 1 |
| *. |
39K6-10151 |
[1] |
SWING MOTOR ASSY |
*-1, *-2, TIPE 1 |
| *. |
38K6-10150 |
[1] |
SWING MOTOR ASSY |
*-1, *-2, TIPE 2 |
| *. |
38K6-10151 |
[1] |
SWING MOTOR ASSY |
*-1, *-2, TIPE 2 |
| *-2. |
39K6-12100 |
[1] |
SWING REDUCTION GEAR |
|
| *-2. |
39K6-12101 |
[1] |
SWING REDUCTION GEAR |
|
| 1 |
39Q6-12110 |
[1] |
GEAR-RING |
|
| 2 |
39K6-12120 |
[1] |
SHAFT-DRIVE |
|
| 3 |
39Q6-12130 |
[1] |
BEARING-TAPER.MAIN |
|
| 4 |
39Q6-12140 |
[1] |
BEARING-TAPER |
|
| 5 |
39Q6-12150 |
[1] |
NUT-RING |
|
| 6 |
39Q6-12161 |
[1] |
PLATE-LOCK |
|
| 7 |
S017-120166 |
[4] |
BOLT-HEX |
|
| 8 |
39Q6-12171 |
[1] |
CASING |
|
| 8 |
39Q6-12172 |
[1] |
CASING |
|
| 9 |
S109-100306 |
[10] |
BOLT-SOCKET |
|
| K10. |
39Q6-12190 |
[1] |
CARRIER 2 |
|
| K11. |
39Q6-12200 |
[3] |
GEAR-PLANETARY 2 |
|
| K12. |
39Q6-12210 |
[6] |
BEARING-NEEDLE 2 |
|
| K13. |
39Q6-12220 |
[6] |
WASHER-THRUST 2 |
|
| K14. |
39Q6-12230 |
[3] |
PIN-CARRIER 2 |
|
| K15. |
S472-800364 |
[3] |
PIN-SPRING |
|
| K16. |
39Q6-12240 |
[1] |
GEAR-SUN 2 |
|
| K17. |
39Q6-12260 |
[1] |
CARRIER 1 |
|
| K18. |
39Q6-12271 |
[3] |
GEAR-PLANETARY 1 |
|
| K19. |
39Q6-12280 |
[3] |
BEARING-NEEDLE 1 |
|
| K20. |
39Q6-12290 |
[3] |
WASHER-THRUST 1,UPP |
|
| K21. |
39Q6-12300 |
[3] |
WASHER-THRUST 1,LOW |
|
| K22. |
39Q6-12310 |
[3] |
PIN-CARRIER 1 |
|
| K23. |
S472-600364 |
[3] |
PIN-SPRING |
|
| K24. |
39Q6-12320 |
[1] |
GEAR-SUN 1 |
|
| K25. |
39Q6-12330 |
[2] |
PLATE-THRUST |
|
| 26 |
39Q6-12340 |
[1] |
SLEEVE |
|
| 27 |
S631-120001 |
[1] |
O-RING |
|
| 28 |
39Q6-12350 |
[1] |
SEAL-OIL |
|
| 29 |
39Q6-41450 |
[2] |
PIN-PARALLEL |
|
| 30 |
S109-16045D |
[12] |
BOLT-SOCKET |
|
| 31 |
39K6-12360 |
[1] |
NAME PLATE |
|
| 31 |
39K6-12361 |
[1] |
NAME PLATE |
|
| 32 |
39Q6-41800 |
[2] |
RIVET |
|
| 33 |
P220-430204 |
[1] |
PLUG-HEX |
|
| *-1. |
39K6-11100 |
[1] |
SWING MOTOR UNIT |
TIPE 1 |
| *-1. |
38K6-11100 |
[1] |
SWING MOTOR UNIT |
TIPE 2 |
| *-1. |
38K6-11100 |
[1] |
SWING MOTOR UNIT |
TIPE 2 |
| K1. |
39Q6-12180 |
[1] |
CARRIER ASSY KIT 1 |
LIHAT ILUSTRASI |
| K2. |
39Q6-12250 |
[1] |
CARRIER ASSY KIT 2 |
LIHAT ILUSTRASI |
- Kami dapat menyediakan suku cadang berikut
1 Suku cadang hidrolik: pompa hidrolik, katup utama, silinder hidrolik, final drive, motor travel, mesin ayun, motor ayun, dll.
2 Suku cadang mesin: ass’y mesin, piston, ring piston, blok silinder, kepala silinder, poros engkol, turbocharger, pompa injeksi bahan bakar, motor starter dan alternator, dll.
3 Suku cadang undercarriage: Roller track, Roller carrier, Track Link, Track shoe, Sprocket, Idler dan bantalan idler, dll.
4 Suku cadang kabin: kabin operator, harness kabel, monitor, kontroler, kursi, pintu, dll.
5 Suku cadang pendingin: Radiator, AC, kompresor, after cooler, dll.
6 Suku cadang lainnya: Service kit, swing circle, kap mesin, swing joint, tangki bahan bakar, filter, boom, arm, bucket, dll.
1. Tawarkan produk berkualitas tinggi & kompetitif
2. Dukungan garansi 12 bulan
3. 100% diuji sebelum pengiriman
4. Pengiriman tepat waktu
5. Berbagai macam Sensor Tekanan Oli, Sensor Level Tangki Bahan Bakar, Sensor Suhu, Sensor Kecepatan untuk excavator
6. Lebih dari 15 tahun pengalaman produksi dan 11 tahun pengalaman perdagangan luar negeri
7. Tim QC profesional
8. Tim penjualan terbaik, layanan 24 jam
- Pengemasan dan Pengiriman
Detail Kemasan :
kemasan dalam : film plastik untuk membungkus
kemasan luar : kayu
Pengiriman :
dalam waktu 3 hari setelah menerima pembayaran, melalui udara atau ekspres atau laut berdasarkan
jumlah dan keadaan darurat.
1. Melalui Kurir: DHL, UPS, FEDEX, TNT adalah perusahaan kurir utama yang kami ajak kerja sama,
2. Melalui Udara: Pengiriman dari pelabuhan udara Guangzhou ke pelabuhan udara kota tujuan pelanggan.
3. Melalui Laut: Pengiriman dari pelabuhan Huangpu.
