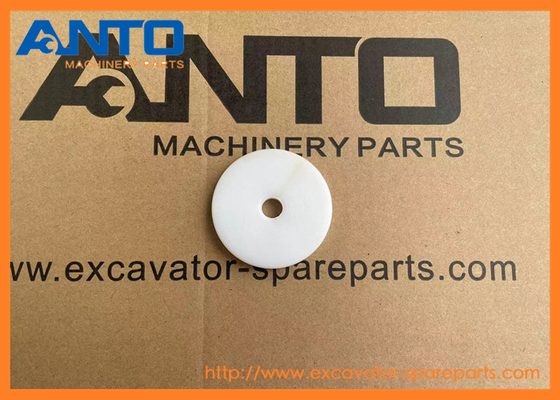

XKAQ-00076 XKAQ00076 Thrust Plate Excavator Swing Motor For HYUNDAI R170W7 R170W7A

Gambar besar : XKAQ-00076 XKAQ00076 Thrust Plate Excavator Swing Motor For HYUNDAI R170W7 R170W7A

Detail produk:

Place of Origin:	China
Nama merek:	OEM
Model Number:	XKAQ-00076 XKAQ00076

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 PCS
Harga:	USD 6/PCS
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100-2000

Kontak

Detil Deskripsi produk

Category:	HYUNDAI Excavator Swing Motor	Parts name:	Thrust plate
PAH01054 XKAH-01054arts number:	XKAQ-00076 XKAQ00076	Models:	R170W7 R170W7A R200W7 R200W7A
Lead time:	Stock for soon delivery	Warranty:	6/12 Months
Menyoroti:	HYUNDAI excavator swing motor , thrust plate swing motor , R170W7 excavator motor

XKAQ-00076 XKAQ00076 Thrust Plate Excavator Swing Motor For HYUNDAI R170W7 R170W7A

Specification

spare parts name	Thrust plate
Equipment Model	R170W7 R170W7A R200W7 R200W7A
Parts Category	HYUNDAI Excavator Swing Motor
Spare parts Condition	Brand new, OEM quality
MOQ of order(PCS, SET)	1 PCS
Parts Availability	In stock
Delivery Lead time	1-3 days

Function

1.Axial Load Support: It is designed to bear significant axial loads. During the operation of the excavator, many rotating components will generate axial forces, and the thrust plate can effectively support these forces, preventing the components from being damaged due to excessive axial loads. For example, in the transmission system, it can bear the axial force generated by gears, ensuring the normal operation of the gears.

2.Reducing Friction: Made of materials with excellent wear - resistance and low friction coefficients, the thrust plate can reduce the friction between components.

Compatible models

7 SERIES WHEEL EXCAVATOR R170W7 R170W7A R200W7 R200W7A

7-SERIES CRAWLER EXCAVATOR R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R250LC7 R250LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7

More other plate parts applicable for HYUNDAI machine

24L3-30710 PLATE

100D-7, 110D-7E, 15BT-9, 16B-9, 180D-9, 22B-9, 22BH-9, 250D-9, 40B-9, 50D-7A, 50D-7K, 50DE, 50DEACE, 50DF, 80D-9, 80DE, 80DEACE, H70, H80, HL720-3, HL720-3C, HL730-7, HL730-7A, HL7303, HL7303C, HL730T...

21EM-45070 PLATE-VANE

33HDLL, 42HDLL, HX180L, R110-7, R110-7A, R125LCR-9A, R130LC3, R130W3, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140W7, R140W7A, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R160LC3, R160LC7, ...

XKBH-01795 PLATE-THRUST

R210LC7H, R210LC9BH

XKBH-02012 PLATE-OIL CAUTION

R210LC7H, R210LC9BH, R380LC9SH, R430LC9SH

XKBH-01598 PLATE-REAR

R210LC7H, R210LC9BH

XKBH-02093 PLATE-WASHER

R210LC7H, R210LC9BH

XKBH-02227 PLATE-ADJUSTING

R210LC7H, R210LC9BH

39QB-11270 PLATE-VALVE

HW210, HX235L, HX480L, HX520L, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S, R215LC7, R250LC9, R250LC9A, R260LC9S, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R450LC7, R480LC9, R480LC9A, R480...

71N6-DA0060 PLATE

R215LC7, RD110-7, RD210-7

Parts list diagram

Pos.	Part No	Qty	Parts name	Comments
*.	@	[1]	SWING MOTOR ASSY
*-2.	31N6-10160	[1]	SWING REDUCTION GEAR
*-2.	31N6-10161	[1]	SWING REDUCTION GEAR
1	XKAQ-00771	[1]	CASING
1	XKAQ-00962	[1]	CASING
2	XKAQ-00331	[1]	SHAFT-DRIVE
2	XKAQ-00780	[1]	SHAFT-DRIVE
3	XKAQ-00018	[1]	SPACER
5	XKAQ-00026	[1]	BEARING-ROLLER
6	XKAQ-00032	[1]	SEAL-OIL
7	XKAQ-00029	[1]	BEARING-ROLLER
7	XKAQ-00647	[1]	BEARING-ROLLER
7	XKAQ-00961	[1]	BEARING-ROLLER
8	XKAQ-00076	[1]	PLATE-THRUST
9	XKAQ-00075	[1]	CARRIER 2
10	XKAQ-00074	[1]	RING-STOP
11	XKAQ-00284	[1]	GEAR-RING
11	XKAQ-00779	[1]	GEAR-RING
12	XKAQ-00072	[4]	PIN-KNOCK
13	XKAQ-00781	[1]	GEAR-PINION
13	XKAQ-00976	[1]	GEAR-PINION
14	XKAQ-00071	[6]	WASHER-THRUST
15	XKAQ-00023	[3]	GEAR-PLANET 2
16	XKAQ-00070	[3]	PIN 2	INCL 23
17	XKAQ-00048	[6]	PIN-SPRING
18	XKAQ-00011	[1]	GEAR-SUN 2
19	XKAQ-00015	[1]	CARRIER 1
20	XKAQ-00057	[3]	PLATE-SIDE 1
21	XKAQ-00019	[3]	PIN 1
22	XKAQ-00030	[3]	CAGE-NEEDLE
N23.	@	[3]	BUSHING 2
24	XKAQ-00025	[3]	GEAR-PLANET 1
25	XKAQ-00292	[1]	WASHER-LOCK
26	XKAQ-00068	[1]	PLATE-SIDE 3
27	XKAQ-00010	[1]	GEAR-SUN 1
29	XKAQ-00049	[1]	PLUG
30	XKAQ-00066	[2]	PLUG
31	XKAQ-00065	[2]	BOLT-SOCKET
32	XKAQ-00035	[1]	PIPE-GAUGE
33	XKAQ-00034	[1]	BAR-GAUGE
34	XKAQ-00031	[1]	PLATE-COVER
35	XKAQ-00064	[8]	BOLT-HEX
36	XKAQ-00043	[1]	PLATE-LOCK
37	XKAQ-00042	[2]	BOLT-HEX
38	XKAQ-00041	[3]	RING-STOP
39	XKAQ-00040	[3]	PLATE-SIDE 2
40	XKAQ-00143	[1]	POST-AIR BREATHER
*-1.	@	[1]	SWING MOTOR UNIT	SEE 4100

XKAQ-00076 XKAQ00076 Thrust Plate Excavator Swing Motor For HYUNDAI R170W7 R170W7A 0

Advantage

1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX

Label:
