| Aplikasi |
Final drive ekskavator C A T |
| Nama |

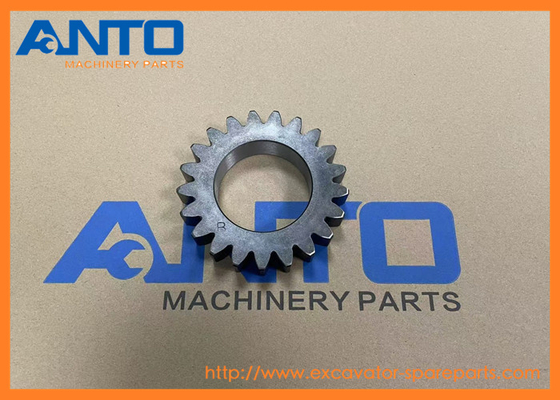

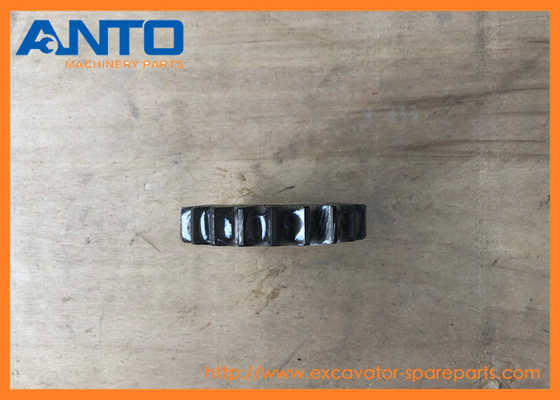

Planetary Gear |
| Nomor Suku Cadang |
1912684 191-2684 |
| Model |
320C 320C FM 320D 320D FM 320D FM RR 322C 323D LN 323D SA 323E L 325C 325C FM 325D 325D L 325D MH 329D 329D L 329D LN 329E 329E L 329E LN
|
| Waktu Pengiriman |
Stok untuk pengiriman mendesak |
| Kualitas |
Baru, kualitas OEM |
| MOQ |
1 PCS |
| Desain |
buatan China |
| Cara Pengangkutan |
Melalui laut/udara, DHL FEDEX UPS TNT Express |
| Pengepakan |
Sesuai permintaan atau pengepakan standar |
1. Transmisi Daya: Ini adalah bagian penting dari sistem transmisi daya. Biasanya, daya dimasukkan dari roda gigi matahari, dan kemudian ditransmisikan ke roda gigi cincin atau pembawa planet melalui roda gigi planet, dan akhirnya dikeluarkan ke komponen kerja yang relevan, memastikan transmisi daya yang lancar dalam peralatan.
2. Konversi Kecepatan dan Torsi: Dengan mengubah komponen tetap dan komponen input dan output daya dalam mekanisme roda gigi planet, rasio roda gigi yang berbeda dapat diperoleh, sehingga mencapai konversi kecepatan dan torsi.
EKSKAVATOR 320C 320C FM 320D 320D FM 320D FM RR 322C 323D LN 323D SA 323E L 325C 325C FM 325D 325D L 325D MH 329D 329D L 329D LN 329E 329E L 329E LN
UNIT DAYA HIDRAULIK MOBILE 325D 329D L
UNDERCARRIAGE OEMS
- Lebih banyak roda gigi suku cadang yang dipasok ke mesin C A T
| 1912684 GEAR-PLANETARY |
| 320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 323D LN, 323D SA, 323E L, 325C, 325C FM, 325D, 325D L, 325D MH, 329D, 329D L, 329D LN, 329E, 329E L, 329E LN, OEMS |
| |
| 1695592 GEAR-PLANETARY |
| 320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 322C FM, 323D LN, 323D SA, 323E L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325C FM, 325D, 325D L, 325D MH, 326D L, 329D, 329D L, 329D LN, 32... |
| |
| 1695593 GEAR-PLANETARY |
| 320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 322C FM, 323D LN, 323D SA, 323E L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325C FM, 325D, 325D L, 325D MH, 326D L, 329D, 329D L, 329D LN, 32... |
| |
| 1695594 GEAR-RING |
| 322C, 322C FM, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 326D L |
| |
| 1912675 GEAR-PLANETARY |
| 322C, 322C FM, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 326D L |
| |
| 7Y0663 GEAR-PLANET |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| |
| 7Y0676 GEAR-PLANET |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| |
| 7Y0659 GEAR-PLANET |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| |
| 7Y0639 GEAR-SUN |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| |
| 7Y0673 GEAR-RING |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| Pos. |
No. Bagian |
Jumlah |
Nama bagian |
Komentar |
| 1 |
3E-2338 |
[2] |
PLUG-PIPE |
|
| 2 |
267-6863 BJ |
[1] |
SHIM (0.75-MM THK) |
|
| |
7Y-0752 BJ |
[1] |
SHIM (0.8-MM THK) |
|
| |
267-6864 BJ |
[1] |
SHIM (0.85-MM THK) |
|
| |
267-6865 BJ |
[1] |
SHIM (0.9-MM THK) |
|
| |
267-6866 BJ |
[1] |
SHIM (0.95-MM THK) |
|
| |
7Y-0753 BJ |
[1] |
SHIM (1-MM THK) |
|
| |
267-6867 BJ |
[1] |
SHIM (1.2-MM THK) |
|
| |
267-6868 BJ |
[1] |
SHIM (1.4-MM THK) |
|
| |
7Y-0754 BJ |
[1] |
SHIM (1.6-MM THK) |
|
| |
267-6869 BJ |
[1] |
SHIM (1.8-MM THK) |
|
| |
267-6870 BJ |
[1] |
SHIM (2-MM THK) |
|
| |
267-6871 BJ |
[1] |
SHIM (2.3-MM THK) |
|
| 5 |
094-0578 B |
[1] |
PLATE (8-MM THK) |
|
| |
094-0579 B |
[1] |
PLATE (9-MM THK) |
|
| |
094-0580 B |
[1] |
PLATE (10-MM THK) |
|
| 8 |
094-1528 |
[12] |
WASHER (53X84X1-MM THK) |
|
| 9 |
114-1540 J |
[4] |
PIN-DOWEL |
|
| 10 |
168-8452 J |
[2] |
BALL BEARING |
|
| 11 |
169-5589 |
[1] |
GEAR-SUN (24-TEETH) |
|
| 12 |
169-5590 |
[1] |
GEAR-SUN (24-TEETH) |
|
| 13 |
169-5592 |
[3] |
GEAR-PLANETARY (23-TEETH) |
|
| 14 |
169-5593 |
[3] |
GEAR-PLANETARY (23-TEETH) |
|
| 15 |
169-5601 |
[3] |
SHAFT-PLANETARY |
|
| 16 |
169-5602 |
[3] |
SHAFT-PLANETARY |
|
| 17 |
171-9387 |
[1] |
GEAR-RING (64-TEETH) |
|
| 18 |
191-2569 |
[3] |
BEARING AS (CAGED ROLLER) |
|
| 19 |
191-2570 |
[6] |
BEARING AS (CAGED ROLLER) |
|
| 20 |
191-2571 |
[1] |
CARRIER-PLANETARY |
|
| 21 |
191-2676 |
[1] |
GEAR-RING (72-TEETH) |
|
| 22 |
191-2683 |
[1] |
GEAR-SUN (20-TEETH) |
|
| 23 |
191-2684 |
[3] |
GEAR-PLANETARY (21-TEETH) |
|
| 24 |
191-2685 |
[3] |
BEARING AS |
|
| 25 |
191-2686 |
[1] |
CARRIER AS |
|
| |
191-2687 |
[3] |
RACE-BEARING |
|
| 26 |
191-2689 |
[3] |
WASHER (34X70X1-MM THK) |
|
| 27 |
191-2690 |
[3] |
WASHER (42.3X70X1-MM THK) |
|
| 28 |
199-4503 |
[1] |
COVER |
|
| 29 |
207-1571 J |
[1] |
SEAL GP-DUO-CONE |
|
| |
214-3570 |
[2] |
RING-TORIC |
|
| 30 |
267-6797 J |
[1] |
HOUSING-MOTOR |
|
| 31 |
267-6798 J |
[1] |
HOUSING |
|
| 32 |
267-6799 |
[1] |
CARRIER-PLANETARY |
|
| 33 |
267-6800 J |
[1] |
GEAR-COUPLING |
|
| 43 |
093-1731 |
[2] |
RING-RETAINING |
|
| 44 |
095-0891 |
[6] |
PIN-SPRING |
|
| 45 |
096-0433 |
[3] |
RING-RETAINING |
|
| 46 |
096-3216 M |
[2] |
SETSCREW-SOCKET (M12X1.75X12-MM) |
|
| 47 |
171-9298 |
[1] |
SEAL-O-RING |
|
| 48 |
179-8733 M |
[16] |
BOLT (M20X2.5X170-MM) |
|
| 49 |
7M-8485 |
[2] |
SEAL-O-RING |
|
| 50 |
7Y-0595 |
[3] |
SPACER (58X79.6X6-MM THK) |
|
| 51 |
7Y-5217 JM |
[16] |
BOLT-SOCKET HEAD (M20X2.5X70-MM) |
|
| 52 |
8T-3282 J |
[16] |
WASHER-HARD (22X35X3.5-MM THK) |
|
| 53 |
8T-4123 |
[16] |
WASHER (22X35X3.5-MM THK) |
|
| 54 |
9X-6032 M |
[12] |
BOLT-SOCKET HEAD (M10X1.5X30-MM) |
|
| 55 |
1U-8846 B |
|
SEALANT-GASKET |
|
| |
|
|
|
| |
|
|
KIT PERBAIKAN YANG TERSEDIA: |
| |
267-6818 J |
[1] |
KIT-FINAL DRIVE BEARING |
|
| |
B |
|
GUNAKAN SEPERTI YANG DIPERLUKAN |
| |
J |
|
KIT BERTANDA J BAGIAN LAYANAN(S) BERTANDA J |
| |
M |
|
BAGIAN METRIK |
- Bagian penjualan panas lainnya
1. Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2. Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3. Suku Cadang Undercarriage: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4. Suku cadang hidrolik: Pompa hidrolik, Katup Utama, Silinder hidrolik
5. Suku cadang mesin: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6. Suku cadang listrik: Wiring harness, Controller, Monitor
7. Lainnya: Cylinder Seal Kits, Tangki bahan bakar, Filter, Boom, Arm, Bucket dll.
- Kami dapat menyediakan suku cadang berikut
1 Suku cadang hidrolik: pompa hidrolik, katup utama, silinder hidrolik, final drive, motor perjalanan, mesin ayun, motor ayun dll.
2 Suku cadang mesin: engine ass’y, piston, ring piston, blok silinder, kepala silinder, crankshaft, turbocharger, pompa injeksi bahan bakar, motor starter dan alternator dll.
3 Suku cadang Undercarriage: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler dan Idler cushion dll.
4 Suku cadang Kabin: kabin operator’s, wiring harness, monitor, controller, jok, pintu dll.
5 Suku cadang pendingin: Radiator, AC, kompresor, after cooler dll.
6 Suku cadang lainnya: Service kit, swing circle, engine hood, swing joint, tangki bahan bakar, filter, boom, arm, bucket dll.
1. Menawarkan produk berkualitas & kompetitif
2. Mendukung garansi 6 bulan
3. 100% diuji sebelum pengiriman
4. Pengiriman tepat waktu
5. Berbagai macam Sensor Tekanan Oli, Sensor Level Tangki Bahan Bakar, Sensor Suhu, Sensor Kecepatan untuk ekskavator
6. Lebih dari 15 tahun produksi dan 11 tahun pengalaman perdagangan luar negeri
7. Tim QC profesional
8. Tim penjualan terbaik, layanan 24 jam
- Pengepakan dan Pengiriman
Detail Pengepakan :
kemasan dalam : film plastik untuk pembungkus
kemasan luar : kayu
Pengiriman :
dalam 3 hari setelah menerima pembayaran, melalui udara atau ekspres atau melalui laut berdasarkan
kuantitas dan keadaan darurat.
1. Melalui Kurir: DHL, UPS, FEDEX, TNT adalah perusahaan kurir utama yang kami bekerja sama,
2. Melalui Udara: Pengiriman dari bandara Guangzhou ke bandara kota tujuan pelanggan.
3. Melalui Laut: Pengiriman dari pelabuhan Huangpu.
