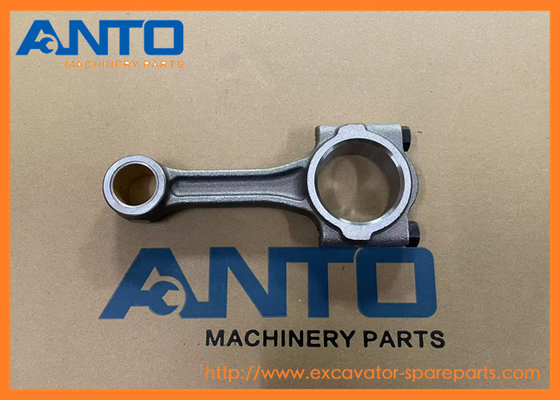

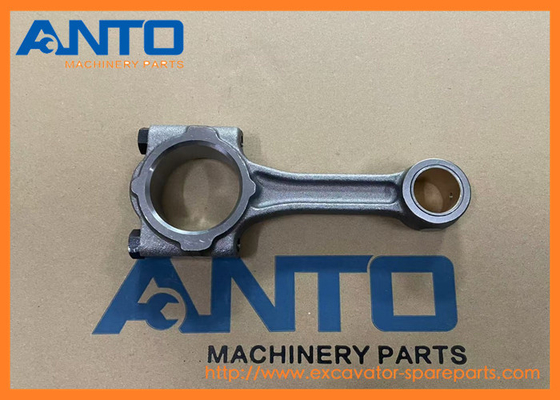

- 16292-22016 Bagian-bagian suku cadang excavator yang cocok untuk U25-3S U27-4
| Nama |
Pengumpulan batang penghubung |
| Bagian No |
16292-22016 |
| Model Mesin |
U25 U27 |
| Kategori |
Piston dan Crankshaft |
| Waktu lead |
1-3 HARI |
| Kualitas |
Baru, kualitas OEM |
| MOQ |
1 PCS |
| Alat transportasi |
Perjalanan laut/udara, DHL FEDEX UPS TNT EMS |
| Pengemasan |
Sesuai permintaan atau kemasan standar |
B, BX Seri B2320HSD B2601HSD B2630HSD B3000HSDCC B3030HSDC B3150HD B3150HDCC B3150SUHD BX2670
Excavator ((K / KH / KX / U SERIES) KX71
Ekskavator (KH / KX / K / U SERIES) U25 U27
PEMATIK FRONT ((SERI F / FZ / GF) F2880 F2890 F3680 F3690
Generator (diesel) J112
Generator (diesel) J116
Generator (diesel) J315 J320
Tractor B SERIES B2301HSD B26 B2920HSD B3030HSD B3300SUHSD BX2660D BX2670 BX2680
RTV kendaraan utilitas
Kendaraan utilitas
Kendaraan utilitas
Kendaraan utilitas RTV1100MCW
Kendaraan utilitas
RTV1140CPX
Zero Turn Mower ZD1211 ZD1221L ZD1221R ZD1221RL
Zero Turn Mower ZD331LP
Zero Turn Mower ZD331P
ZERO TURN MOWER ZD331RP Kubota
- Lebih banyak bagian batang penghubung lain yang cocok untuk mesin KUBOTA
| 6C070-42880 ROD,DIFF.LOCK |
| B2320HSD, B2710HSD, B2910HSD, B2920HSD |
| |
| 6C200-18833 ROD,PTO |
| B26, B2630HSD, B3000HSDCC, B3030HSD, B3030HSDC, B3150HD, B3150SUHD |
| |
| 6C200-19370 ROD, FRONT |
| B3030HSDC |
| |
| 6C200-19420 ROD,Release Belakang |
| B2630HSD, B3000HSDCC, B3030HSD, B3030HSDC |
| |
| 6C300-42114 ROD, CLUTCH FRONT |
| B2320HSD, B2920HSD, B3300SUHSD |
| |
| 6C530-54140 ROD ((BONNET) |
| B2301HSD, B2601HSD |
| |
| K2063-16520 ROD SUB-ASSY |
| BX1860, BX1870, BX1880, BX2360, BX2370, BX2380, BX23S, BX25D, BX25DLB, BX2660D, BX2670, BX2680, G23 |
| |
| K2581-43523 ROD, CRUSE LOWER |
| BX2360, BX25D, BX2660D |
| |
| K2871-61140 ROD ((baterai) |
| BX1880, BX2380, BX23S, BX2680 |
| |
| K3211-42080 ROD END,5/16-24UNF LH |
| BX1850D, BX1860, BX1870, BX2350D, BX2360, BX2370, BX24D, BX25D, BX25DLB, BX2660D, BX2670, G23, ZG20F |
| |
| K3511-90272 ROD |
| F2560, F2560E, F2880, F2890, F3060, F3560, F3680, F3690 |
| |
| RB411-65320 ROD |
| KX71, U25 |
| |
| 16241-22141 ROD BOLT |
| J116, J320 |
| |
| 16241-22140 ROD BOLT |
| ASK, B21, B2710HSD, B2910HSD, B7500D, B7500DTN, B7500HSD, F2400, FZ2100, FZ2400, J112, J315, KX41, KX41H, KX61, KX61(H), KX71, KX91, R310(OLD, R310BH(OLD |
| |
| 16241-22012 ROD,CONNECTING,ASSY |
| B1700D, B1700HSD, B1700HSDB, B1700HSE, B21, B2100D, B2100HSD, B2100HSDB, B2400HSD, B2400HSDB, B2410HSDB, B2630HSD, B2710HSD, B2910HSD, B3030HSD, B3030HSDC, B7500D, B7500DTN, B7500HSD,B7510DAku tidak tahu. |
| |
| 16241-15110 ROD, PUSH |
| B1700D, B1700HSD, B1700HSDB, B1700HSE, B21, B2100D, B2100HSD, B2100HSDB, B2320HSD, B2400HSD, B2400HSDB, B2410HSD, B2410HSDB, B26, B2630HSD, B2710HSD, B2910HSD, B3030HSD, B3030HSDC, B7500D, B7500DTN,BAku tidak tahu. |
| |
| 15628-60150 ROD Hentikan |
| GV1160, GV3200 |
| |
| 15451-15110 ROD PUSH |
| M125XDT, M5500, M5500DT, M5950, M5950DT, M5970DT, M5970DT(BI, M6030, M6030DT, M6950, M6950DT, M6970DT, M6970DT(BI, M7030, M7030DT, M7500, M7500DT, M7580DT, M7950, M7950DT, M7970DT, M7970DT, M7970DT(BI, M8030, Aku tidak tahu. |
| |
| 15221-53160 ROD PUSH |
| Adapun jenis-jenis produk yang dapat digunakan adalah: |
| Posisi. |
Bagian No. |
Qty |
Nama bagian |
Komentar |
| 10 |
16060-21114 |
[3] |
Piston |
Penyakit menular seksual |
| 10 |
16060-21914 |
[3] |
Piston |
+0,50mm |
| 20 |
16292-21050 |
[3] |
Cincin, piston, ASSY |
Penyakit menular seksual |
| 20 |
16292-21090 |
[3] |
Cincin, piston, ASSY |
+0,50mm |
| 30 |
16241-21310 |
[3] |
PIN, PISTON |
|
| 40 |
16241-21330 |
[6] |
CIRCLIP ((PIN,PISTON) |
|
| 50 |
16241-22012 |
[3] |
ROD, CONNECTING, ASSY |
<= 6V9999 |
| 50 |
1G700-22010 |
[3] |
ROD, ASSY ((CONNECTING)) |
>=6W0001 |
| 50 |
16292-22016 |
[3] |
ROD, CONNECTING, ASSY |
>=AU0001 |
| 60 |
16241-21982 |
[3] |
BUSHING ((PIN, PISTON) |
<= 7HZ999 |
| 60 |
1G700-21980 |
[3] |
BUSH, PISTON PIN |
>=7J0001 |
| 70 |
16241-22142 |
[6] |
BOLT ((PENGANTAR ROD) |
|
| 80 |
16241-22980 |
[3] |
METAL, CRANKPIN |
-0,40mm SET <= ATZ999 |
| 80 |
16241-22970 |
[3] |
METAL, CRANKPIN |
-0,20mm SET <= ATZ999 |
| 80 |
16292-22972 |
[3] |
METAL, CRANKPIN |
-0,20mm SET >=AU0001 |
| 80 |
16292-22982 |
[3] |
METAL, CRANKPIN |
-0,40mm SET >=AU0001 |
| 80 |
16241-22310 |
[3] |
METAL, CRANKPIN |
SET STD <=ATZ999 |
| 80 |
16292-22310 |
[3] |
METAL ((PIN, Crank) |
SET STD >=AU0001 |
| 90 |
16265-23013 |
[1] |
Crankshaft, COMP |
<= 9BZ999 |
| 90 |
1G065-23010 |
[1] |
COMP. Crankshaft |
PEMERINTAHAN DARI BAGIAN No.1G065-2301-2 >=9C0001 |
| 90 |
1G065-23012 |
[1] |
Crankshaft, COMP |
>=9W0001 |
| 90 |
1G065-23013 |
[1] |
COMP. Crankshaft |
>=1CW0001 |
| 100 |
07715-00401 |
[3] |
Bola 1/4 |
<= 6X9999 |
| 110 |
16241-24110 |
[1] |
Gear, crank. |
<= 8XZ999 |
| 110 |
1A055-24110 |
[1] |
Gear ((Crankshaft) |
>=8Y0001 |
| 120 |
16271-95230 |
[1] |
Kunci |
|
| 130 |
16241-35630 |
[1] |
Gear ((OIL PUMP DRIVE) |
<= 1CVZ999 |
| 130 |
1J050-35630 |
[1] |
Gear ((OIL PUMP DRIVE) |
>=1CW0001 |
| 140 |
16241-23280 |
[1] |
Sleeve, Crankshaft |
|
| 150 |
16241-23250 |
[1] |
KOLER, Crankshaft |
<= 1CVZ999 |
| 150 |
1J050-23250 |
[1] |
KOLER (Crankshaft) |
>=1CW0001 |
| 160 |
04814-10280 |
[1] |
RING |
|
| 170 |
16241-23470 |
[1] |
METAL (crankshaft) |
STD <=ATZ999 |
| 170 |
16241-23910 |
[1] |
METAL (crankshaft) |
-0,20mm <= ATZ999 |
| 170 |
16241-23920 |
[1] |
METAL (crankshaft) |
-0,40mm <=ATZ999 |
| 170 |
16292-23923 |
[1] |
METAL (crankshaft) |
- 0,40 mm >= AU0001 |
| 170 |
16292-23913 |
[1] |
METAL (crankshaft) |
-0,20 mm >= AU0001 |
| 170 |
16292-23473 |
[1] |
METAL (crankshaft) |
STD >=AU0001 |
| 200 |
15521-23530 |
[2] |
Metal, sisi |
STD <=ATZ999 |
| 200 |
15521-23960 |
[2] |
Metal, sisi |
+0,40mm <=ATZ999 |
| 200 |
15521-23950 |
[2] |
Metal, sisi |
+0,20mm <=ATZ999 |
| 200 |
15521-23953 |
[2] |
Metal, sisi |
+0,20mm >=AU0001 |
| 200 |
15521-23533 |
[2] |
Metal, sisi |
STD >=AU0001 |
| 200 |
15521-23963 |
[1] |
Metal, sisi |
+0,40mm >=AU0001 |
| 210 |
1920-23540 |
[2] |
Metal, sisi |
STD <=ATZ999 |
| 210 |
1920-23970 |
[2] |
Metal, sisi |
+0,20mm <=ATZ999 |
| 210 |
1920-23980 |
[2] |
Metal, sisi |
+0,40mm <=ATZ999 |
| 210 |
1920-23983 |
[2] |
Metal, sisi |
+0,40mm >=AU0001 |
| 210 |
1920-23973 |
[2] |
Metal, sisi |
+0,20mm >=AU0001 |
| 210 |
1920-23543 |
[2] |
Metal, sisi |
STD >=AU0001 |
| 220 |
1G069-21774 |
[3] |
PISTON, KIT (STD) |
STD <= 7HZ999 |
| 220 |
1G069-21794 |
[3] |
PISTON,KIT ((050) |
+0,50mm <= 7HZ999 |
| 220 |
1G069-21795 |
[3] |
PISTON,KIT ((050) |
+0,50mm >=7J0001 |
| 220 |
1G069-21775 |
[3] |
PISTON, KIT (STD) |
STD >=7J0001 |
| 230 |
1G069-23755 |
[1] |
METAL,KIT (mesin) |
STD <=ATZ999 |
| 230 |
1G069-23766 |
[1] |
METAL,KIT (mesin) |
-0,20mm/+0,20mm <= ATZ999 |
| 230 |
1G069-23776 |
[1] |
METAL,KIT (mesin) |
-0,40mm/+0,40mm <= ATZ999 |
| 230 |
1G993-23775 |
[1] |
METAL,KIT (mesin) |
-0,40mm/+0,40mm >=AU0001 |
| 230 |
1G993-23765 |
[1] |
METAL,KIT (mesin) |
-0,20mm/+0,20mm >=AU0001 |
| 230 |
1G995-23755 |
[1] |
METAL,KIT (mesin) |
STD >=AU0001 |
- Kami bisa memasok suku cadang berikut
1 Bagian hidraulik: pompa hidraulik, katup utama, silinder hidraulik, drive akhir, motor perjalanan, mesin ayunan, motor ayunan dll.
2 Bagian mesin: bagian mesin, piston, ring piston, blok silinder, kepala silinder, poros engkol, turbocharger, pompa injeksi bahan bakar, motor starter dan alternator dll.
3 Bagian bagian bawah karet: roller rel, roller Carrier, Track Link, sepatu rel, Sprocket, Idler dan bantalan Idler dll.
4 Bagian kabin: kabin operator, kabel, monitor, pengontrol, kursi, pintu dll.
5 Bagian pendingin: radiator, AC, kompresor, after cooler dll.
6 Bagian lain: Kit layanan, lingkaran ayunan, kap mesin, sendi ayunan, tangki bahan bakar, filter, boom, lengan, ember dll.
1. Menawarkan produk berkualitas tinggi & kompetitif
2. Dukungan garansi 12 bulan
3. 100% diuji sebelum pengiriman
4Pengiriman tepat waktu.
5. Berbagai sensor tekanan minyak, Fuel Tank Level Sensor, Sensor Suhu, Sensor Kecepatan untuk excavator
6. Lebih dari 15 tahun produksi dan 11 tahun pengalaman perdagangan luar negeri
7Tim QC profesional.
8Tim penjualan terbaik, layanan 24 jam.
- Pengemasan dan Pengiriman
Rincian kemasan:
Kemasan dalam: film plastik untuk pembungkus
Pengemasan luar: kayu
Pengiriman:
Dalam waktu 3 hari setelah menerima pembayaran, melalui udara atau ekspres atau laut berdasarkan
jumlah dan keadaan darurat.
1. Dengan kurir: DHL, UPS, FEDEX, TNT adalah perusahaan kurir utama kami bekerja sama,
2. Dengan Air: Pengiriman dari bandara Guangzhou ke bandara kota tujuan pelanggan.
3Dengan laut: Pengiriman dari pelabuhan Huangpu.
