| Aplikasi |
C A T Bagian pendingin udara excavator |
| Nama |

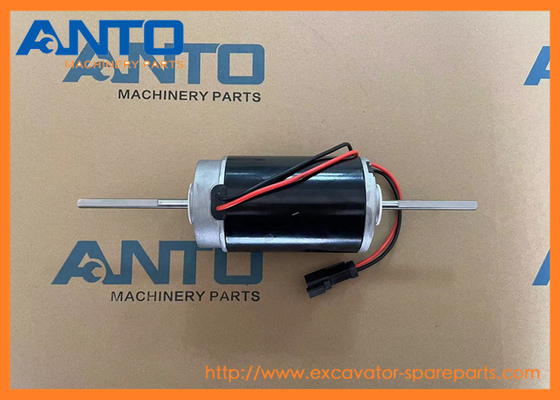

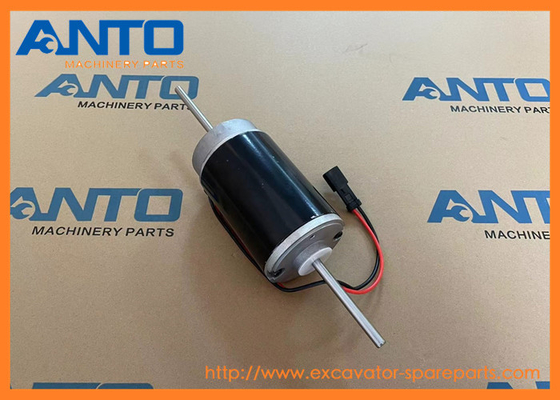

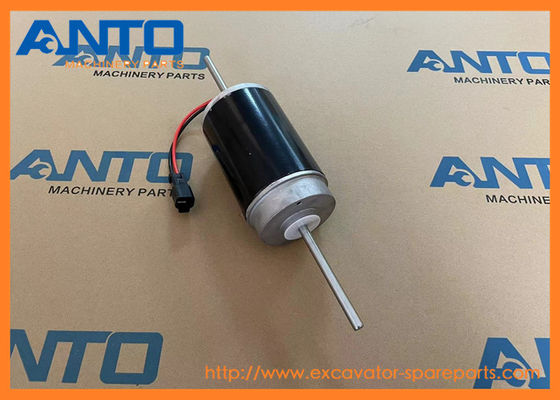

Motor Blower |
| Bagian No |
385-0244 3850244 |
| Model |
120H 120H ES 120H NA 120K 120K 2 12H 12H ES 12H NA 12K 135H 135H NA 140H 140H ES 140H NA 140K 140K 2 143H 14H NA 160H 160H ES 160H NA 160K 163H 163H NA 16H 16H
|
| Waktu pengiriman |
Stok untuk pengiriman mendesak |
| Kualitas |
Baru, kualitas OEM |
| MOQ |
1 PCS |
| Desain |
dibuat di Cina |
| Alat transportasi |
Perjalanan laut/udara, DHL FEDEX UPS TNT Express |
| Pengemasan |
Sesuai permintaan atau kemasan standar |
Motor Grader 120H 120H ES 120H NA 120K 120K 2 12H 12H ES 12H NA 12K 135H 135H NA 140H 140H ES 140H NA 140K 140K 2 143H 14H NA 160H 160H ES 160H NA 160K 163H 163H NA 16H 16H NA
- Daftar bagian katalogAku tidak tahu.
| Posisi. |
Bagian No. |
Qty |
Nama bagian |
Komentar |
| 1 |
2V-0099 |
[1] |
KNOB-CONTROL (kecepatan kipas angin) |
|
| 1A. |
2V-0099 |
[1] |
KNOB-CONTROL (KONTROL TEMPERATURE) |
|
| 2 |
3E-0400 |
[2] |
Roda AS-Blower |
|
| |
|
|
(SATU-SATU TERTINGGI) |
| |
037-4838 |
[1] |
Clamp |
|
| 3 |
3E-3890 |
[1] |
Pengidentifikasian film (kecepatan kipas, suhu) |
|
| 4 |
3S-2093 |
[5] |
Kabel tali |
|
| 5 |
3T-3197 |
[1] |
GROMMET |
|
| 6 |
3T-3198 |
[1] |
GROMMET |
|
| 7 |
5P-7803 |
[2] |
Tombol colokan |
|
| 8 |
6T-5345 |
[1] |
BUSHING-TERMINAL |
|
| 9 |
6T-6708 |
[2] |
WASHER (7X28.6X4.1-MM THK) |
|
| 10 |
7T-9793 |
[2] |
VALVE-CHECK (DRAIN EVAPORATOR) |
|
| 11 |
8C-4586 |
[2] |
Clamp |
|
| 13 |
163-1883 |
[1] |
LAMP (24-Volt) |
|
| 14 |
9G-1950 |
[1] |
Resistor |
|
| 15 |
9X-9653 |
[1] |
Coil AS-Evaporator |
|
| 16 |
123-4618 |
[1] |
PELUAR |
|
| 17 |
123-4701 |
[1] |
SEAL |
|
| 18 |
124-1431 |
[1] |
BRACKET |
|
| 19 |
124-1432 |
[1] |
Perumahan AS |
|
| 20 |
124-3137 |
[1] |
BRACKET |
|
| 21 |
124-3138 |
[1] |
SEAL |
|
| 22 |
124-9006 |
[1] |
SHAFT |
|
| 23 |
125-0438 |
[1] |
GASKET |
|
| 24 |
129-4935 |
[1] |
SEAL |
|
| 25 |
142-4940 |
[1] |
PLATE AS |
|
| 26 |
191-0027 |
[1] |
PAD |
|
| 27 |
204-4376 |
[1] |
CAP-PROTECTIVE |
|
| 28 |
238-0415 |
[1] |
VALVE AS-WATER |
|
| 29 |
238-0417 |
[1] |
Inti sebagai pemanas |
|
| 30 |
385-0244 |
[1] |
MOTOR AS-BLOWER (27-VOLT, A/C, PEMANAS) |
|
| |
9W-0852 |
[2] |
PIN-CONNECTOR (14-GA ke 16-GA) |
|
| |
102-8802 |
[1] |
KIT-RECEPTACLE (2-PIN) |
|
| |
|
|
(Termasuk resep AS & WEDGE) |
| 31 |
422-2152 |
[4] |
LOUVER AS-VENT |
|
| 32 |
423-6697 |
[1] |
SHAFT AS |
|
| |
4L-5966 |
[2] |
SETSCREW (10-32X0.25-IN) |
|
| 33 |
448-0024 |
[1] |
Sensor AS-TEMPERATURE (CAB AIR) |
|
| |
230-4012 |
[1] |
Reseptor sebagai konektor (2-PIN) |
|
| |
|
|
(Termasuk plug AS, PIN konektor & PLUG SEAL) |
| 34 |
518-9609 |
[1] |
Dukungan AS |
|
| 35 |
518-9611 |
[1] |
PELUAR |
|
| 36 |
518-9612 |
[2] |
PELAT |
|
| 37 |
518-9613 |
[1] |
PELUAR |
|
| 38 |
518-9614 |
[1] |
PELUAR |
|
| 39 |
518-9616 |
[1] |
COVER AS |
|
| |
7T-1099 |
[1] |
LINK |
|
| |
8T-3490 M |
[4] |
NUT-WELD (M10X1.5-THD) |
|
| 40 |
525-6949 Y |
[1] |
Harness sebagai pemanas & AC |
|
| 41 |
104-2091 |
[8] |
Kepala sekrup flat (6-20X0.5-IN) |
|
| 42 |
129-3178 M |
[4] |
LOCKNUT (M6X1-THD) |
|
| 43 |
130-5300 |
[1] |
CLIP |
|
| 44 |
7X-0490 M |
[1] |
BOLT (M6X1X200-MM) |
|
| 45 |
248-6772 |
[4] |
Mesin sekrup (8-16X7.75-IN) |
|
| 46 |
2P-4339 |
[1] |
NUT-JAM (7/16-28-THD) |
|
| 47 |
3H-2900 |
[1] |
GROMMET |
|
| 48 |
3S-9557 |
[8] |
Kepala sekrup-pan (4-40X0.5-IN) |
|
| 49 |
4M-6582 |
[2] |
SEAL-O-RING |
|
| 50 |
5C-2890 M |
[1] |
NUT (M6X1-THD) |
|
| 51 |
5P-1075 |
[13] |
WASHER-HARD (10.2X22.5X3-MM THK) |
|
| 52 |
5P-9135 |
[1] |
GROMMET |
|
| 53 |
6P-3236 |
[1] |
Switch AS-ROTARY (kecepatan kipas) |
|
| |
6V-8362 |
[5] |
Mesin sekrup (8-32X0.31-IN) |
|
| |
9B-7233 |
[5] |
PENGEMAS KELUAR |
|
| 54 |
6V-1668 |
[2] |
WASHER (6,5X29.1X3-MM THK) |
|
| 55 |
6V-7728 M |
[1] |
Bolt (M6X1X45-MM) |
|
| 56 |
6V-8801 |
[13] |
NUT (3/8-16-THD) |
|
| 57 |
8P-5141 |
[2] |
Plat-orifice |
|
| 58 |
8T-4171 M |
[2] |
Bolt (M6X1X12-MM) |
|
| 59 |
8T-4205 |
[15] |
WASHER-HARD (7.2X14.5X2-MM THK) |
|
| 60 |
9M-8406 |
[1] |
CLIP (Loop) |
|
| 61 |
9X-2040 M |
[9] |
Kepala sekrup (M10X1.5X25-MM) |
|
| 62 |
9X-2045 M |
[6] |
Kepala skru-truss (M6X1X20-MM) |
|
| 63 |
9X-2185 |
[4] |
PELUANG (8-15X0.44-IN) |
|
| 64 |
9X-2488 |
[4] |
KELAMP-HOSE |
|
| 65 |
5P-5908 D |
|
SEAL (0.2-M) |
|
| 66 |
9X-2126 E |
|
SEAL (20,5 cm masing-masing) |
|
| 66A. |
9X-2126 E |
|
SEAL (32,7 cm masing-masing) |
|
| 67 |
5P-5637 D |
|
SEAL (0.8-M) |
|
| 67A. |
5P-5637 D |
|
SEAL (0,4-M SEHARU) |
|
| 67B. |
5P-5637 D |
|
SEAL (0,2-M SEHARU) |
|
| 67C. |
5P-5637 D |
|
SEAL (0.3-M) |
|
| 67D. |
5P-5637 D |
|
SEAL (1-M) |
|
| 67E. |
5P-5637 D |
|
SEAL (0.4-M) |
|
| 68 |
136-1953 E |
|
HOSE (17-CM Tiap-tiap) |
|
| 69 |
267-8575 E |
|
TUBE (7-CM) |
|
| 69A. |
267-8575 E |
|
TUBE (6-CM) |
|
| |
D |
|
Perintah Per Meter |
| |
E |
|
Perintah PER CENTIMETER |
| |
M |
|
Bagian Metrik |
| |
Y |
|
Ilustrasi terpisah |
Aku tidak tahu.
- Lebih banyak suku cadang motor yang dikirimkan ke mesin CAT
| 1173915 MOTOR GP-ELECTRIC |
| 1090, 1190, 1190T, 120G, 120H, 120H ES, 120H NA, 1290T, 12H, 12H ES, 12H NA, 135H, 135H NA, 1390, 140H, 140H ES, 140H NA, 143H, 14H, 14H NA, 160H, 160H ES, 160H NA, 163H, 163H NA, 16G, 16H, 16H NA, 16... |
| |
| 1053196 MOTOR GP-GEROTOR |
| 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 14Aku tidak tahu. |
| |
| 1705335 MOTOR GP-ELECTRIC |
| 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 135H, 135H NA, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 143H, 14H, 14H NA, 14M, 160H, 160H ES,160HAku tidak tahu. |
| |
| 1350611 MOTOR GP-WINDOW WIPER |
| 120H, 120K, 120K 2, 120M, 120M 2, 12H, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 135H, 140H, 140K, 140K 2, 140M 2, 140M 3, 140M 3 AWD, 143H, 14H, 14M, 160H, 160K, 160M 2, 160M 3, 160M 3 AWD,163HAku tidak tahu. |
| |
| 1741494 MOTOR AS-BLOWER |
| 120H, 120H ES, 120H NA, 12H, 12H ES, 12H NA, 135H, 140H, 140H ES, 140H NA, 160H, 160H ES, 160H NA, 312B L, 315B L, 317B LN, 318B, 375 L, 5130, 5230, 611, 613C II, 615C, 621F, 621G, 623F, 623G, 627F, 6Aku tidak tahu. |
| |
| 9X3392 MOTOR AS-WIPER |
| 120G, 120H, 120H ES, 120H NA, 12G, 12H, 12H ES, 12H NA, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 143H, 14G, 14H NA, 160H, 160H ES, 160H NA, 163H NA, 16G, 16H NA, 229, 518C, 528B, 530B, 621F,Aku tidak tahu. |
| |
| 3086335 MOTOR GP-ELECTRIC |
| 135H, 135H NA, 143H, 14H, 14H NA, 160H ES, 160H NA, 163H NA, 517, 527, 539, 572R, 816F, 816F II, 824H, 826C, 826G, 826G II, 826H, 834G, 834H, 836, 836G, 836H, 950H, 963C, 966H, 973C, 988G, 988H,Aku tidak tahu. |
| |
| 1010744 MOTOR GP-WINDOW WIPER |
| 120H, 120H ES, 120H NA, 12H, 12H ES, 12H NA, 135H, 135H NA, 140H, 140H ES, 140H NA, 143H, 14H NA, 160H, 160H ES, 160H NA, 163H NA, 16H NA, 517, 527, 611, 613C, 613C II, 615C, 621E, 621F, 621G, 623E, 6Aku tidak tahu. |
| |
| 3161927 MOTOR AS-BLOWER |
| 120H, 120H ES, 120H NA, 12H, 12H ES, 12H NA, 135H, 135H NA, 140H, 140H ES, 140H NA, 143H, 14H, 14H NA, 160H, 160H ES, 160H NA, 163H, 163H NA, 16H, 16H NA, 24H, 611 |
- Bagian jual panas lainnya
1Penggerak akhir: gearbox perjalanan, gearbox perjalanan dengan motor, Carrier ass'y, batang gigi matahari
2.Swing gear: pusat sendi punggung, Swing gearbox, Swing motor, Gear pengurangan punggung
3. Bagian-bagian kereta bawah tanah: Rol Track, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4Bagian hidraulik: Pompa hidraulik, katup utama, silinder hidraulik
5. Bagian mesin: Mesin Assety, Crankshaft, Turbocharger, Injektor bahan bakar, Flywheel, motor starter, kipas pendingin, katup solenoid
6Bagian-bagian listrik: kabel, pengontrol, monitor
7.Lainnya: Kit Seal Silinder, Tangki Bahan Bakar, Filter, Boom, Arm, Bucket dll.
- Kami bisa memasok suku cadang berikut
1 Bagian hidraulik: pompa hidraulik, katup utama, silinder hidraulik, drive akhir, motor perjalanan, mesin ayunan, motor ayunan dll.
2 Bagian mesin: bagian mesin, piston, ring piston, blok silinder, kepala silinder, poros engkol, turbocharger, pompa injeksi bahan bakar, motor starter dan alternator dll.
3 Bagian bagian bawah karet: roller rel, roller Carrier, Track Link, sepatu rel, Sprocket, Idler dan bantalan Idler dll.
4 Bagian kabin: kabin operator, kabel, monitor, pengontrol, kursi, pintu dll.
5 Bagian pendingin: radiator, AC, kompresor, after cooler dll.
6 Bagian lain: Kit layanan, lingkaran ayunan, kap mesin, sendi ayunan, tangki bahan bakar, filter, boom, lengan, ember dll.
1. Menawarkan produk berkualitas tinggi & kompetitif
2. Dukungan 6 bulan garansi
3. 100% diuji sebelum pengiriman
4Pengiriman tepat waktu.
5. Berbagai sensor tekanan minyak, Fuel Tank Level Sensor, Sensor Suhu, Sensor Kecepatan untuk excavator
6. Lebih dari 15 tahun produksi dan 11 tahun pengalaman perdagangan luar negeri
7Tim QC profesional.
8Tim penjualan terbaik, layanan 24 jam.
- Pengemasan dan Pengiriman
Rincian kemasan:
Kemasan dalam: film plastik untuk pembungkus
Pengemasan luar: kayu
Pengiriman:
Dalam waktu 3 hari setelah menerima pembayaran, melalui udara atau ekspres atau laut berdasarkan
jumlah dan keadaan darurat.
1. Dengan kurir: DHL, UPS, FEDEX, TNT adalah perusahaan kurir utama kami bekerja sama,
2. Dengan Air: Pengiriman dari bandara Guangzhou ke bandara kota tujuan pelanggan.
3Dengan laut: Pengiriman dari pelabuhan Huangpu.
