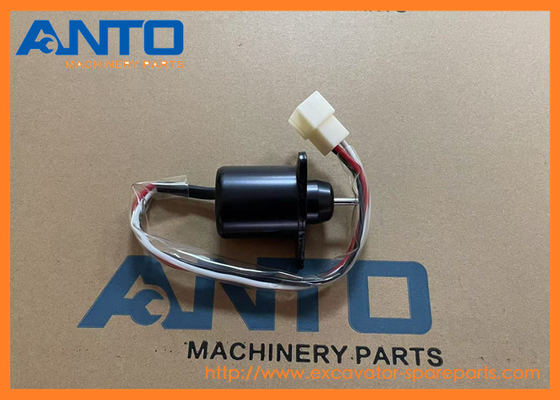

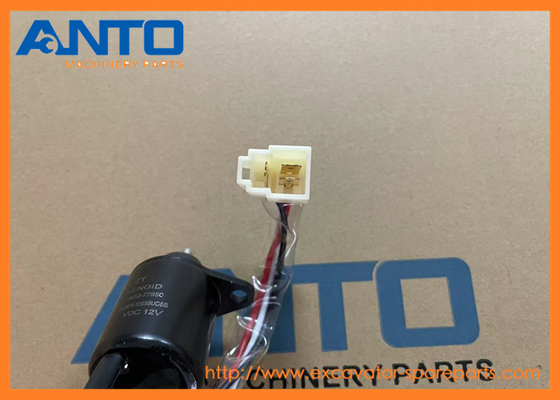

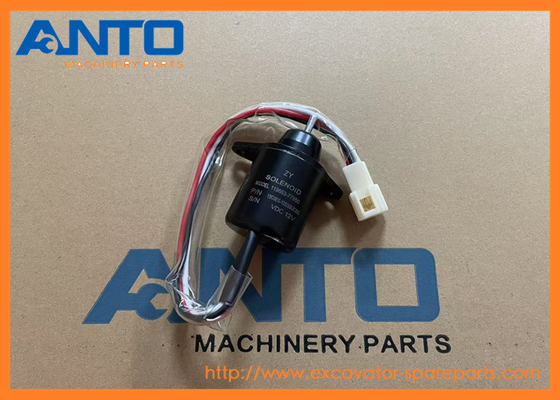

- 119653-77950 Fuel stop control Solenoid Valve HYUNDAI Loader Spare Parts Untuk HSL610
| Kategori |
Gubernur |
| Nama |
Fuel Stop Control Solenoid Valve |
| Nomor Suku Cadang |
119653-77950 |
| Model Mesin |
HSL610 |
| Waktu Tunggu |
1-3 HARI |
| Kualitas |
Baru, kualitas OEM |
| MOQ |
1 PCS |
| Cara Pengangkutan |
Melalui laut/udara, DHL FEDEX UPS TNT EMS |
| Pengepakan |
Sesuai permintaan atau pengepakan standar |
1. Kontrol Bahan Bakar: Katup solenoid ini berfungsi sebagai mekanisme pemutus pasokan bahan bakar. Saat diberi energi (selama pengoperasian mesin), katup ini terbuka untuk memungkinkan aliran bahan bakar ke injektor. Saat tidak diberi energi (selama pemadaman atau keadaan darurat), katup ini segera menutup, menghentikan pengiriman bahan bakar dan memaksa mesin berhenti.
2. Pemadaman Darurat: Jika terjadi kerusakan mesin, katup ini memicu pemutusan bahan bakar otomatis untuk mencegah kerusakan.
3. Kompatibilitas Tegangan: Beroperasi pada sistem 12V atau 24V, tergantung pada mode mesin.
OLD SKID STEER LOADER HSL610 Hyundai
- Lebih banyak solenoid katup lainnyacocok untuk mesin HYUNDAI
| 3802355 VALVE-INTAKE |
| 100D-7, 33HDLL, H70, H80, HDF35A-2, HL17C, HL720-3C, HL7303C, HL730TM3C, HL740-3, HL740-3ATM, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL750, HL750-3, HL750TM3, HL757-7S |
| |
| 3802356 VALVE-EXHAUST |
| 100D-7, 33HDLL, H70, H80, HDF35A-2, HL17C, HL720-3C, HL7303C, HL730TM3C, HL740-3, HL740-3ATM, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL750, HL750-3, HL750TM3, HL757-7S |
| |
| 21M5-50260 VALVE-CHECK |
| HX140L, HX160L, HX180L, HX235L, R110-7, R110-7A, R125LCR-9A, R130W3, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140W7, R140W7A, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R160LC3, R160LC7 |
| |
| 81EK-00030 VALVE CHECK |
| R170W3 |
| |
| 003001-19025 VALVE-STOP |
| R170W3, R180LC3, R200NLC3 |
| |
| 003001-25025 VALVE-STOP |
| R170W3, R180LC3, R200NLC3 |
| |
| 717522 VALVE |
| R170W3, R180LC3, R200NLC3, R210LC3H |
| |
| 000.944.08.20 VALVE-BRAKE |
| R170W3 |
| |
| 4143-221-006 VALVE-THROTTLE |
| R170W3, R200W2 |
| |
| 4143-242-007 VALVE-RELIEF |
| R170W3, R200W2 |
| |
| 4501-210-906 VALVE-PRESS RELEASE |
| R200W3 |
| |
| 3926559 VALVE-CHECK |
| R200W3, R250LC3 |
| |
| 31EK-21080 VALVE-SOLENOID(6) |
| R170W3 |
| |
| 31EK-21071 VALVE-SOLENOID(5) |
| R170W3 |
- Daftar suku cadang katalog
| Pos. |
No. Suku Cadang |
Jumlah |
Nama suku cadang |
Komentar |
| *. |
@ |
[1] |
PUMP ASSY-F.INJECT |
LIHAT 0110 |
| N1. |
129053-61000 |
[1] |
GOVERNOR ASSY |
|
| 2 |
129155-51280 |
[1] |
O-RING S6 |
|
| N3. |
129052-61010 |
[1] |
CASE-GOVERNOR |
|
| 4 |
129052-61050 |
[1] |
PACKING |
|
| 5 |
129052-61060 |
[1] |
COVER |
|
| 6 |
129052-61070 |
[1] |
PACKING |
|
| 7 |
129155-61120 |
[1] |
LINK L=30(MARK 0) |
|
| 8 |
129155-61130 |
[1] |
LINK L=30(MARK 1) |
|
| 9 |
129155-61140 |
[1] |
LINK L=30.5(MARK 05) |
|
| 10 |
129155-61201 |
[1] |
WEIGHT ASSY |
|
| N11. |
129155-61211 |
[3] |
WEIGHT |
|
| N12. |
129155-61221 |
[3] |
PIN-WEIGHT |
|
| N13. |
129155-61292 |
[1] |
SUPPORT-WEIGHT |
|
| 14 |
129155-61341 |
[1] |
SLEEVE |
|
| 15 |
129155-61350 |
[1] |
SLEEVE |
|
| 16 |
129155-61360 |
[1] |
SLEEVE |
|
| 17 |
129100-61400 |
[1] |
SHAFT ASSY-COMTROL |
|
| N18. |
129155-61410 |
[1] |
SHAFT |
|
| N19. |
129100-61420 |
[1] |
HOOK |
|
| 20 |
129155-61430 |
[1] |
SPACER-SHAFT |
|
| N21. |
129156-61430 |
[1] |
SPACER(1.6T) |
|
| N22. |
129156-61440 |
[1] |
SPACER(2.0T) |
|
| N23. |
129156-61450 |
[1] |
SPACER(2.3T) |
|
| 24 |
129155-61450 |
[1] |
BOLT-REVOL.LIMIT |
|
| 25 |
129155-61460 |
[1] |
BOLT-IDLE LIMIT |
|
| 26 |
129155-61480 |
[2] |
SPACER ASSY |
|
| N27. |
129156-61460 |
[2] |
SPACER(0.6T) |
|
| N28. |
129156-61470 |
[2] |
SPACER(0.7T) |
|
| N29. |
129156-61480 |
[2] |
SPACER(1.2T) |
|
| N30. |
129156-61490 |
[2] |
SPACER(0.8T) |
|
| 31 |
129052-61390 |
[1] |
SHAFT-GOV.LEVER |
|
| 32 |
129052-61500 |
[1] |
LEVER ASSY-GOVERNOR |
|
| 33 |
174307-51700 |
[2] |
SHIM SET |
|
| N34. |
174307-51710 |
[2] |
SHIM(0.1T) |
|
| N35. |
174307-51720 |
[2] |
SHIM(0.2T) |
|
| N36. |
174307-51730 |
[2] |
SHIM(0.3T) |
|
| N37. |
174307-51740 |
[2] |
SHIM(0.5T) |
|
| N38. |
174307-51750 |
[2] |
SHIM(0.05T) |
|
| N39. |
174307-51760 |
[2] |
SHIM(0.25T) |
|
| N40. |
174307-51770 |
[2] |
SHIM(0.35T) |
|
| N41. |
174307-51780 |
[2] |
SHIM(0.40T) |
|
| N42. |
174307-51790 |
[2] |
SHIM(0.45T) |
|
| N43. |
174307-51800 |
[2] |
SHIM(0.50T) |
|
| N44. |
129052-61510 |
[1] |
LEVER |
|
| N45. |
119843-61520 |
[1] |
LEVER A-GOVERNOR |
|
| N46. |
129052-61530 |
[1] |
LEVER (B) |
|
| 47 |
129052-61540 |
[1] |
SPRING |
|
| N48. |
129155-61540 |
[1] |
SHIFTER |
|
| N49. |
119843-61550 |
[2] |
BUSH |
|
| N50. |
129052-61590 |
[1] |
RETAINER |
|
| N51. |
171353-61910 |
[1] |
HOOK-TENSION LEVER |
|
| N52. |
129100-61920 |
[1] |
PIN |
|
| 53 |
22272-000040 |
[1] |
CIRCLIP |
|
| N54. |
26116-050102 |
[2] |
BOLT |
|
| 55 |
26106-060102 |
[1] |
BOLT-PLATED |
|
| 56 |
22217-050000 |
[2] |
WASHER-SPRING |
|
| 57 |
119660-61901 |
[1] |
RETAINER-SHAFT |
|
| 58 |
129155-61950 |
[1] |
BOLT-WASHER BASED |
|
| 59 |
124550-66370 |
[1] |
LOCK NUT M6 |
|
| 60 |
22117-040000 |
[1] |
WASHER |
|
| 61 |
22190-060002 |
[1] |
WASHER-SEAL |
|
| 61-1. |
22190-060003 |
[1] |
WASHER-SEAL |
|
| 62 |
22190-100002 |
[1] |
WASHER-SEAL |
|
| 63 |
22190-120002 |
[2] |
WASHER-SEAL |
|
| 64 |
22287-120000 |
[1] |
WASHER |
|
| 65 |
22372-040000 |
[2] |
PIN-SNAP |
|
| 66 |
23887-100002 |
[1] |
PLUG |
|
| 67 |
24341-000280 |
[1] |
O-RING |
|
| 68 |
26106-060102 |
[1] |
BOLT-PLATED |
|
| 69 |
26106-060102 |
[1] |
BOLT-PLATED |
|
| 70 |
26106-060102 |
[4] |
BOLT-PLATED |
|
| 71 |
26106-060142 |
[2] |
BOLT-PLATED |
|
| 72 |
26106-060202 |
[6] |
BOLT |
|
| 73 |
26756-060002 |
[1] |
NUT-LOCK |
|
| 74 |
26776-120002 |
[2] |
LOCK NUT M12 PLATED |
|
| 75 |
129155-61830 |
[1] |
O-RING S10 |
|
| 76 |
129100-61440 |
[1] |
LEVER-CONTROL |
|
| 77 |
129100-61650 |
[1] |
SPRING-FUEL CONTROL |
|
| 78 |
129489-61700 |
[1] |
SPRING-GOVERNOR |
|
| 79 |
119653-77950 |
[1] |
SOLENOID-STOP |
|
| 80 |
26687-120002 |
[1] |
CAP-NUT M12 |
|
| 80A. |
129100-61930 |
[1] |
NUT-CAP |
|
| 81 |
129155-61470 |
[1] |
BOLT-FUEL CONTROL |
|
| 82 |
26366-080002 |
[1] |
NUT |
|
| 83 |
171353-61550 |
[1] |
ANGLEICH ASSY |
|
| N84. |
129155-61570 |
[1] |
CASE-ANGLEICH |
|
| N85. |
129155-61580 |
[1] |
SHIFTER-ANGLEICH |
|
| N86. |
129156-61580 |
[1] |
SPRING-ANGLEICH |
|
| N87. |
129155-61590 |
[1] |
NUT |
|
| N88. |
129555-61800 |
[1] |
SHIM(0.95T) |
|
| N89. |
112100-51630 |
[1] |
SHIM-FUEL CONTROL |
|
| N90. |
112100-51640 |
[1] |
SHIM |
|
| N91. |
112100-51650 |
[1] |
SHIM-FUEL CONTROL |
|
| N92. |
129555-61810 |
[1] |
SHIM(0.6T) |
|
| N93. |
129555-61820 |
[1] |
SHIM(0.65T) |
|
| N94. |
129555-61830 |
[1] |
SHIM(0.7T) |
|
| N95. |
129555-61840 |
[1] |
SHIM(0.75T) |
|
| N96. |
129555-61850 |
[1] |
SHIM(0.8T) |
|
| N97. |
129555-61860 |
[1] |
SHIM(0.85T) |
|
| N98. |
129555-61870 |
[1] |
SHIM(0.9T) |
|
| N99. |
129555-61800 |
[1] |
SHIM(0.95T) |
|
| N100. |
129555-61890 |
[1] |
SHIM(1.0T) |
|
| N101. |
129555-61900 |
[1] |
SHIM(1.05T) |
|
| N102. |
129555-61910 |
[1] |
SHIM(1.1T) |
|
| N103. |
129555-61920 |
[1] |
SHIM(1.15T) |
|
| N104. |
129555-61930 |
[1] |
SHIM(1.2T) |
|
| N105. |
22117-050000 |
[1] |
WASHER |
|
| 106 |
22272-000040 |
[1] |
CIRCLIP |
|
| N107. |
135210-61090 |
[1] |
LEAD |
|
| N108. |
22541-060000 |
[1] |
WIRE |
|
| N. |
@ |
[1] |
NOT SUPPLIED PARTS |
|
- Kami dapat menyediakan suku cadang berikut
1 Suku cadang hidrolik: pompa hidrolik, katup utama, silinder hidrolik, final drive, motor perjalanan, mesin ayun, motor ayun, dll.
2 Suku cadang mesin: perakitan mesin, piston, ring piston, blok silinder, kepala silinder, poros engkol, turbocharger, pompa injeksi bahan bakar, motor starter dan alternator, dll.
3 Suku cadang Undercarriage: Roller Track, Roller Pembawa, Tautan Track, Sepatu Track, Sprocket, Idler dan Bantalan Idler, dll.
4 Suku cadang Kabin: kabin operator, kabel, monitor, pengontrol, jok, pintu, dll.
5 Suku cadang Pendingin: Radiator, AC, kompresor, pendingin setelahnya, dll.
6 Suku cadang lainnya: Kit servis, lingkaran ayun, penutup mesin, sambungan ayun, tangki bahan bakar, filter, boom, lengan, ember, dll.
1. Menawarkan produk berkualitas & kompetitif
2. Mendukung garansi 12 bulan
3. 100% diuji sebelum pengiriman
4. Pengiriman tepat waktu
5. Berbagai Sensor Tekanan Oli, Sensor Level Tangki Bahan Bakar, Sensor Suhu, Sensor Kecepatan untuk excavator
6. Lebih dari 15 tahun produksi dan 11 tahun pengalaman perdagangan luar negeri
7. Tim QC profesional
8. Tim penjualan terbaik, layanan 24 jam
- Pengepakan dan Pengiriman
Detail Pengepakan:
pengepakan dalam: film plastik untuk pembungkus
pengepakan luar: kayu
Pengiriman:
dalam 3 hari setelah menerima pembayaran, melalui udara atau ekspres atau melalui laut berdasarkan
kuantitas dan keadaan darurat.
1. Melalui Kurir: DHL, UPS, FEDEX, TNT adalah perusahaan kurir utama yang kami bekerja sama,
2. Melalui Udara: Pengiriman dari bandara Guangzhou ke bandara kota tujuan pelanggan.
3. Melalui Laut: Pengiriman dari pelabuhan Huangpu.
