Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| aplikasi: | Penggalian | Model mesin: | CX210B CX210BNLC |
|---|---|---|---|

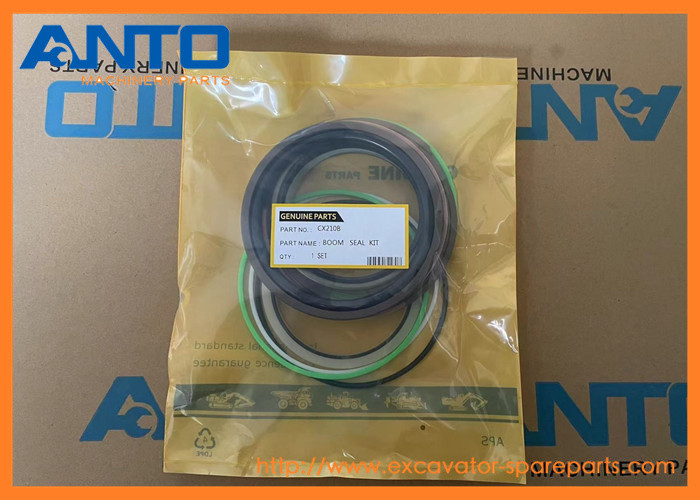

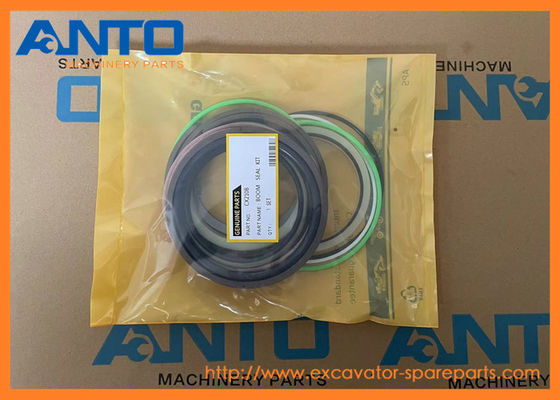

| Nomor Bagian: | LZ007630 | Nama produk: | Kit Segel |
| Waktu Pimpin: | 1-3 hari untuk pengiriman | Pengemasan: | Karton ekspor standar |
| Menyoroti: | LZ007630 Boom Seal Kit,CX210B Boom Seal Kit,Kit segel boom |
||
| Aplikasi | Penggalian |
| Nama | Kit Seal |
| Bagian No | LZ007630 |
| Model Mesin | CX210B CX210BNLC |
| Kategori | Cylinder ASSY, BOOM, Tangan Kanan |
| Waktu lead | 1-3 HARI |
| Kualitas | Baru, kualitas OEM |
| MOQ | 1 PCS |
| Alat transportasi | Perjalanan laut/udara, DHL FEDEX UPS TNT EMS |
| Pengemasan | Sesuai permintaan atau kemasan standar |
Peralatan berat CX210B CX210BNLC CX210BLR kasus
| 87596010 SEAL |
| CX240BLR, CX250C, CX210B, CX210C LC, CX210BLR, CX210C LR, CX225SR, CX210BNLC, CX210C NLC, AQ-4HK1XASS01, CX240B, CX235C SR |
| 87336448 SEAL |
| CX240BLR, CX250C, CX330, CX290B, CX300C, CX350B, CX350C, CX210B, CX210C LC, CX210BLR, CX210C LR, CX225SR, CX210BNLC, CX210C NLC, AQ-4HK1XASS01, CX240B, CX235C SR, AQ-6HK1XASS01-02 |
| 151814A1 SEAL, 72mm ID x 84mm OD x 11mm Thk |
| CX250C, CX130B, CX130D LC, CX160B, CX160D LC, CX130, CX210B, CX210D LC, CX135SR, 9007B, CX210BLR, CX210D LC LR, 9010, CX210BNLC, CX210D NLC, CX160, CX240B, CX250D LC, CX210, 9020, CX240BLR |
| 160674A1 SEAL,65mm ID x 80mm OD x 5mm Thk |
| CX250C, CX130D, CX130B, CX130D LC, CX160B, CX160D LC, CX130, CX135SR, 9007B, CX210BLR, CX210D LC LR, CX160, 9010B, CX210, CX240BLR, CX250D LC LR, CX210LR, 9020B, 9030B, CX240, 9040B, CX240LR, CX130C |
| 161295A1 SEAL, 70mm ID x 85mm OD x 5mm Thk |
| CX240BLR, CX250C, CX130B, CX145C SR, CX130D LC, 9020B, CX130, CX250D LC LR, CX135SR, CX210BLR, CX210C LR, CX210D LC LR, CX130C, CX240, CX210LR, CX240LR, CX210, |
| 160397A1 SEAL,95mm ID x 114mm OD x 32mm Thk |
| CX250C, CX160B, CX160D LC, CX210B, CX210D LC, CX210BLR, CX210D LC LR, CX210BNLC, CX210D NLC, CX160, CX240B, CX210, CX240BLR, CX210LR, 9020B, CX210N, CX225SR, 9030B, CX240, CX240LR, CX750D RTC, CX160C |
| 159399A1 SEAL,56mm ID x 76mm OD x 25mm Thk |
| CX250C, CX160B, CX160D LC, CX210B, CX210D LC, CX210BLR, CX210D LC LR, CX210BNLC, CX210D NLC, CX160, CX240B, CX250D LC, CX210, CX240BLR, CX250D LC LR, CX210LR, 9020B, CX210N, CX225SR, 9030B, CX240 |
| 159648A1 SEAL, 90mm ID x 105mm OD x 5mm Thk |
| 9060B, CX250C, CX300C, CX350C, CX210B, CX210D LC, CX210BLR, CX210D LC LR, CX210BNLC, CX210D NLC, CX240B, CX250D LC, CX210, CX210LR, CX290B, CX300D LC, CX210N, CX350B, CX350D LC, CX225SR, 9030B, CX240 |
| 160401A1 SEAL, 85mm ID x 100mm OD x 5mm Thk |
| CX350C, CX330, CX210N, CX210B, CX350B, CX350D LC, CX210C LC, 9030B, CX225SR, CX350, CX210D LC, CX210BNLC, CX210C NLC, CX210D NLC, CX235C SR, CX210 |
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
| . . | KRV19520 | [1] | Silinder hidraulik | SUM Termasuk 3 - 42 Diganti dengan nomor bagian: 47760164 |
| . . | KRV19520R | [1] | Silinder REMAN-HYD | RAC CX210B CRAWLER EXCAVATOR TIER 3 (NA) (1/07-) |
| . . | KRV19520C | [1] | CILINDER HIDRO-KOR | Nomor Pengembalian RAC |
| . . | KRV32981R | [1] | Silinder REMAN-HYD | RAC CX210B CRAWLER EXCAVATOR TIER 3 (NA), TANGAN HAK (1/07-), Reman untuk PN Baru KRV19520 |
| . . | KRV32981C | [1] | CILINDER HIDRO-KOR | Nomor Pengembalian RAC |
| 3 | LU00106 | [1] | Tutup ujung silinder | SUM |
| 4 | 155419A1 | [1] | BUSHING | SUM |
| 5 | 155697A1 | [1] | Ring, SNAP | SUM RING SNAP |
| 6 | LE013140 | [1] | RING | SUM |
| 7 | LE013150 | [1] | RING | SUM |
| 8 | 155232A1 | [1] | RING BACKUP | SUM |
| 9 | 158147A1 | [1] | WIPER SEAL | SUM Digantikan oleh nomor bagian: LE019440 |
| 10 | 154753A1 | [1] | O-RING,114.4mm ID x 3,1mm Lebar | SUM |
| 11 | 155234A1 | [1] | RING BACKUP | SUM |
| 12 | 161059A1 | [12] | Bolt, Hex Skt, M16 x 70mm, Cl 12.9 | SUM |
| 13 | LE013160 | [1] | RING BACKUP | SUM |
| 14 | LE00704 | [1] | SEAL | SUM |
| 15 | LJ014150 | [1] | Piston | SUM |
| 16 | 155313A1 | [1] | RING SEALING | SUM |
| 17 | LE00705 | [2] | RING BACKUP | SUM |
| 18 | LE013170 | [2] | RING BACKUP | SUM |
| 19 | 155308A1 | [2] | RING | SUM |
| 20 | 156223A1 | [1] | SET SCREW | SUM |
| 21 | 155977A1 | [1] | Bola | SUM |
| 22 | 160483A1 | [2] | RING BACKUP | SUM |
| 23 | 160484A1 | [2] | WIPER SEAL | SUM |
| 24 | LR014050 | [1] | HYD TUBE | SUM |
| 25 | LR014060 | [1] | HYD TUBE | SUM |
| 26 | 154528A1 | [2] | O-RING | SUM |
| 27 | 87016471 | [8] | Sekrup HEX SOC, M10 x 30mm, Cl 12.9 | RAC |
| 28 | LD001370 | [1] | Clamp Bracket | SUM |
| 29 | LD00040 | [1] | Clamp Bracket | SUM |
| 30 | 158131A1 | [2] | Bolt, kekuatan tinggi, M10 x 1.5 x 35mm, Cl 10.9 | SUM |
| 31 | 156227A1 | [2] | PEMANAS | SUM |
| 32 | 155701A1 | [2] | KOLER | SUM |
| 33 | 153910A1 | [1] | BOLT, High Strength, Hex, M14 x 80mm | SUM |
| 34 | 892-16014 | [1] | M14, Hvy. | SUM |
| 35 | 153630A1 | [1] | Lube Nipple | SUM |
| . . | LR014070 | [1] | HYD CYL SLEEVE | SUM Termasuk 38, 39 |
| 38 | NSS | [1] | TIDAK DIJUAL SEPARAT | Tabung CON, Silinder |
| 39 | KRV2401 | [1] | SELF LUB RING | SUM |
| . . | LB011320 | [1] | PISTON ROD | SUM Termasuk 41, 42 |
| 41 | NSS | [1] | TIDAK DIJUAL SEPARAT | CON Rod, Piston |
| 42 | KRV2395 | [1] | SELF LUB RING | SUM |
| . . | LZ007630 | [1] | SEAL KIT | SUM Termasuk 6 - 11, 14, 16 - 19 Digantikan dengan nomor bagian: MMV80010 |
1 Bagian hidraulik: pompa hidraulik, katup utama, silinder hidraulik, drive akhir, motor perjalanan, mesin ayunan, motor ayunan dll.
2 Bagian mesin: bagian mesin, piston, ring piston, blok silinder, kepala silinder, poros engkol, turbocharger, pompa injeksi bahan bakar, motor starter dan alternator dll.
3 Bagian bagian bawah karet: roller rel, roller Carrier, Track Link, sepatu rel, Sprocket, Idler dan bantalan Idler dll.
4 Bagian kabin: kabin operator, kabel, monitor, pengontrol, kursi, pintu dll.
5 Bagian pendingin: radiator, AC, kompresor, after cooler dll.
6 Bagian lain: Kit layanan, lingkaran ayunan, kap mesin, sendi ayunan, tangki bahan bakar, filter, boom, lengan, ember dll.
Keuntungan
1. Menawarkan produk berkualitas tinggi & kompetitif
2. Dukungan garansi 12 bulan
3. 100% diuji sebelum pengiriman
4Pengiriman tepat waktu.
5. Berbagai sensor tekanan minyak, Fuel Tank Level Sensor, Sensor Suhu, Sensor Kecepatan untuk excavator
6. Lebih dari 15 tahun produksi dan 11 tahun pengalaman perdagangan luar negeri
7Tim QC profesional.
8Tim penjualan terbaik, layanan 24 jam.
Rincian kemasan:
Kemasan dalam: film plastik untuk pembungkus
Pengemasan luar: kayu
Pengiriman:
Dalam waktu 3 hari setelah menerima pembayaran, melalui udara atau ekspres atau laut berdasarkan
jumlah dan keadaan darurat.
1. Dengan kurir: DHL, UPS, FEDEX, TNT adalah perusahaan kurir utama kami bekerja sama,
2. Dengan Air: Pengiriman dari bandara Guangzhou ke bandara kota tujuan pelanggan.
3Dengan laut: Pengiriman dari pelabuhan Huangpu.
