| Aplikasi |

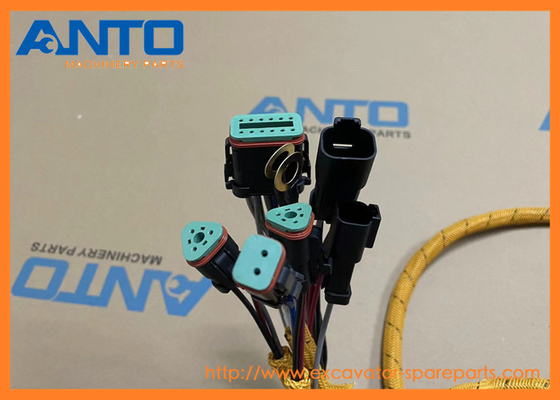

C A T bagian dari pompa hidraulik excavator |
| Nama |
Pengaman |
| Bagian No |
204-0008 2040008 |
| Model |
322C 325C
|
| Waktu pengiriman |
Stok untuk pengiriman mendesak |
| Kualitas |
Baru, kualitas OEM |
| MOQ |
1 PCS |
| Desain |
dibuat di Cina |
| Alat transportasi |
Perjalanan laut/udara, DHL FEDEX UPS TNT Express |
| Pengemasan |
Sesuai permintaan atau kemasan standar |
Ekskavator 322C 325C
Unit Daya HYD MOBILE
Penggali beroda M325C MH
- Lebih banyak bagian sabuk yang dikirimkan ke mesin C A T
| 1957336 HARNESS sebagai MOTOR |
| 120H, 135H, 3126B, 322C, 322C FM, 325C, 325C FM, 561N, 570B, 580B, 938G II, 950G II, 953C, 962G II, 963C, D5N, D6N, IT38G II, IT62G II, M325C MH, SPP101 |
| |
| 2118002 HARNESS sebagai WINDOW WIPER |
| 320C, 322C, 325C, 330C, 330C L |
| |
| 2397167 HARNESS AS-PANEL |
| M325C MH |
| |
| 2641960 HARNESS AS-WIRING |
| M325C MH |
| |
| 2641959 HARNESS sebagai kotak |
| M325C MH |
| |
| 2373554 HARNESS AS |
| M325C MH |
| |
| 2427407 HARNESS AS |
| M325C MH |
| |
| 2373555 HARNESS AS |
| M325C MH |
| |
| 2621888 HARNESS AS-CONTROL |
| M325C MH |
| |
| 2637951 HARNESS AS-PANEL |
| M325C MH |
| |
| 2349342 HARNESS AS-SOLENOID |
| M325C MH, M325D L MH, M330D |
| |
| 3040704 HARNESS AS-WIRING |
| M325C MH, M325D L MH, M325D MH |
| Posisi. |
Bagian No. |
Qty |
Nama bagian |
Komentar |
| 1 |
111-4837 |
[10] |
CLIP |
|
| 2 |
8T-4137 M |
[41] |
BOLT (M10X1.5X20-MM) |
|
| 3 |
8T-4121 |
[90] |
WASHER-HARD (11X21X2.5-MM THK) |
|
| 4 |
204-0005 Y |
[1] |
Panel GP-CIRCUT BREAKER |
|
| 5 |
167-3583 |
[1] |
TANGAN AS-GROUND |
|
| 6 |
111-4838 |
[20] |
CLIP |
|
| 7 |
111-4839 |
[20] |
TANGAN |
|
| 8 |
3S-2093 |
[31] |
Kabel tali |
|
| 9 |
210-7236 |
[1] |
CABLE AS |
|
| |
1S-7251 |
[1] |
Terminal-kabel (00-GA, 1/2-IN screw) |
|
| |
5P-0761 E |
|
Kabel (00-GA, Merah) |
|
| |
8N-0869 |
[1] |
COVER-TERMINAL (Merah) |
|
| |
8N-1725 |
[1] |
COVER AS-TERMINAL (Merah) |
|
| |
3S-6049 |
[1] |
Terminal sebagai baterai (positif) |
|
| |
1M-6119 |
[1] |
BOLT (5/16-18X1.375-IN) |
|
| |
1M-6120 |
[1] |
NUT (5/16-18-THD) |
|
| 10 |
8T-4191 M |
[8] |
BOLT (M10X1.5X16-MM) |
|
| 11 |
170-6929 |
[1] |
CABLE AS |
|
| |
5P-0761 E |
|
Kabel (00-GA, Merah) |
|
| |
9G-0002 |
[1] |
COVER AS-TERMINAL (Merah) |
|
| |
9G-0005 |
[1] |
COVER AS-TERMINAL (HITAM) |
|
| |
8C-5918 |
[1] |
Terminal AS-baterai (negatif) |
|
| |
8T-9756 |
[1] |
Terminal sebagai baterai (positif) |
|
| |
1M-6119 |
[2] |
BOLT (5/16-18X1.375-IN) |
|
| |
1M-6120 |
[2] |
NUT (5/16-18-THD) |
|
| 12 |
128-8928 |
[1] |
BRACKET AS |
|
| 13 |
2G-8767 |
[3] |
WASHER (10,5X60X3-MM THK) |
|
| 14 |
128-8886 |
[1] |
TANGAN AS-GROUND |
|
| 15 |
8T-4182 M |
[1] |
BOLT (M10X1.5X45-MM) |
|
| 16 |
197-4435 |
[1] |
CABLE AS |
|
| |
1S-7252 |
[1] |
Terminal-kabel (00-GA, 3/8-IN screw) |
|
| |
5P-0747 E |
|
Kabel (00-GA, HITAM) |
|
| |
7N-5274 |
[1] |
COVER AS-TERMINAL (HITAM) |
|
| |
9G-8909 |
[1] |
Cover-terminal (hitam) |
|
| |
3S-6050 |
[1] |
Terminal AS-baterai (negatif) |
|
| |
1M-6119 |
[1] |
BOLT (5/16-18X1.375-IN) |
|
| |
1M-6120 |
[1] |
NUT (5/16-18-THD) |
|
| 17 |
3T-5760 |
[2] |
Baterai GP (12-Volt, 750-CCA) |
|
| 18 |
6W-6005 |
[1] |
Baterai yang ditahan |
|
| 19 |
5I-8270 |
[1] |
Baterai penutup |
|
| 20 |
6G-2256 |
[2] |
Clamp |
|
| 21 |
4K-8864 |
[2] |
CLIP |
|
| 22 |
6K-8178 |
[1] |
CLIP (Loop) |
|
| 23 |
213-0646 |
[1] |
STRIP AS |
|
| 24 |
8T-4136 M |
[16] |
BOLT (M10X1.5X25-MM) |
|
| 25 |
227-8670 |
[1] |
Harness AS-CHASSIS |
|
| |
102-8802 |
[6] |
KIT-RECEPTACLE (2-PIN) |
|
| |
102-8803 |
[1] |
KIT-RECEPTACLE (3-PIN) |
|
| |
102-8804 |
[2] |
KIT-RECEPTACLE (4-PIN) |
|
| |
102-8805 |
[3] |
KIT-RECEPTACLE (6-PIN) |
|
| |
102-8801 |
[4] |
KIT-RECEPTACLE (12-PIN) |
|
| |
|
|
(Setiap kit resep termasuk resep AS & WEDGE) |
| |
155-2255 |
[2] |
KIT-CONNECTING PLUG (12-PIN) |
|
| |
155-2260 |
[1] |
KIT-CONNECTING PLUG (3-PIN) |
|
| |
155-2270 |
[14] |
KIT-CONNECTING PLUG (2-PIN) |
|
| |
155-2271 |
[3] |
KIT-CONNECTING PLUG (4-PIN) |
|
| |
155-2274 |
[3] |
KIT-CONNECTING PLUG (6-PIN) |
|
| |
|
|
(Setiap kit colokan termasuk colokan AS & WEDGE) |
| 26 |
7Y-8165 |
[3] |
GROMMET |
|
| 27 |
7C-4354 |
[1] |
CLIP |
|
| 28 |
7X-2621 M |
[8] |
BOLT (M10X1.5X12-MM) |
|
| 29 |
116-0118 |
[19] |
CLIP |
|
| 30 |
111-4836 |
[21 ] |
CLIP |
|
| 31 |
219-0268 |
[1] |
Harness AS-Platform |
|
| |
102-8802 |
[5] |
KIT-RECEPTACLE (2-PIN) |
|
| |
102-8805 |
[1] |
KIT-RECEPTACLE (6-PIN) |
|
| |
102-8801 |
[2] |
KIT-RECEPTACLE (12-PIN) |
|
| |
|
|
(Setiap kit resep termasuk resep AS & WEDGE) |
| |
155-2255 |
[2] |
KIT-CONNECTING PLUG (12-PIN) |
|
| |
155-2260 |
[3] |
KIT-CONNECTING PLUG (3-PIN) |
|
| |
155-2270 |
[9] |
KIT-CONNECTING PLUG (2-PIN) |
|
| |
155-2271 |
[1] |
KIT-CONNECTING PLUG (4-PIN) |
|
| |
155-2274 |
[2] |
KIT-CONNECTING PLUG (6-PIN) |
|
| |
|
|
(Setiap kit colokan termasuk colokan AS & WEDGE) |
| 32 |
7G-1060 |
[1] |
TANGAN AS-GROUND |
|
| 33 |
087-6598 |
[1] |
GROMMET |
|
| 34 |
193-3564 |
[1] |
BRACKET AS |
|
| 35 |
8T-4195 M |
[9] |
BOLT (M10X1.5X30-MM) |
|
| 36 |
163-6786 |
[1] |
BRACKET |
|
| 37 |
6V-5683 M |
[4] |
Bolt (M6X1X16-MM) |
|
| 38 |
9X-8256 |
[4] |
WASHER (6,6X12X2-MM THK) |
|
| 39 |
8T-4189 M |
[1] |
BOLT (M8X1.25X20-MM) |
|
| 40 |
7K-1181 |
[4] |
Kabel tali |
|
| 41 |
5C-7261 M |
[1] |
NUT (M8X1.25-THD) |
|
| 42 |
8T-4226 |
[1] |
Dilapisi dengan kain (10,5X45X3-MM THK) |
|
| 43 |
8T-4133 M |
[2] |
NUT (M10X1.5-THD) |
|
| 44 |
5I-8304 |
[1] |
ROD |
|
| 45 |
6G-2263 |
[2] |
SPACER (10.5X19X28.5-MM THK) |
|
| 46 |
224-2898 |
[1] |
BRACKET |
|
| 47 |
163-6750 |
[1] |
Harness sebagai alarm (horn) |
|
| |
155-2270 |
[1] |
KIT-CONNECTING PLUG (2-PIN) (Termasuk PLUG AS & WEDGE) |
|
| 48 |
5P-4116 |
[1] |
WASHER-HARD (8.8X20.5X2-MM THK) |
|
| 49 |
186-4623 |
[1] |
BRACKET |
|
| 50 |
170-9336 |
[1] |
BRACKET AS |
|
| 51 |
7I-2673 |
[4] |
Kabel tali |
|
| 52 |
081-6344 |
[1] |
SPACER (13.3X21.3X25-MM THK) |
|
| 53 |
093-2065 |
[1] |
GROMMET |
|
| 54 |
7Y-8167 |
[1] |
GROMMET (50-MM ID) |
|
| 55 |
204-0008 |
[1] |
Harness AS-CHASSIS |
|
| |
102-8802 |
[4] |
KIT-RECEPTACLE (2-PIN) |
|
| |
102-8805 |
[1] |
KIT-RECEPTACLE (6-PIN) |
|
| |
102-8801 |
[2] |
KIT-RECEPTACLE (12-PIN) |
|
| |
|
|
(Setiap kit resep termasuk resep AS & WEDGE) |
| 56 |
4I-7889 |
[5] |
SPACER (11X25X45-MM THK) |
|
| 57 |
7Y-8171 |
[1] |
GROMMET |
|
| 58 |
8T-5005 M |
[4] |
BOLT (M10X1.5X70-MM) |
|
| 60 |
8T-4185 M |
[1] |
BOLT (M10X1.5X50-MM) |
|
| 61 |
8T-4200 M |
[1] |
BOLT (M8X1.25X16-MM) |
|
| 62 |
8T-4172 M |
[1] |
BOLT (M10X1.5X80-MM) |
|
| 63 |
8T-6466 M |
[1] |
Bolt (M10X1.5X60-MM) |
|
| 64 |
3E-5169 |
[1] |
Pengganti Penjaga |
|
| 65 |
4D-1836 |
[1] |
Switch-TOGGLE (Switch PEMUTUSAN sekunder) |
|
| 66 |
204-1816 |
[1] |
Harness AS-Switch (SEKUNDARY SHUTDOWN) |
|
| |
102-8802 |
[1] |
KIT-RECEPTACLE (2-PIN) ((Termasuk RECEPTACLE AS & WEDGE) |
|
| 67 |
136-0344 |
[1] |
GROMMET |
|
| 68 |
204-1868 |
[1] |
Insulator |
|
| 69 |
8T-4224 |
[1] |
WASHER-HARD (8,8X16X2-MM THK) |
|
| |
E |
|
Perintah PER CENTIMETER |
| |
M |
|
Bagian Metrik |
| |
Y |
|
Ilustrasi terpisah |
- Bagian jual panas lainnya
1Penggerak akhir: gearbox perjalanan, gearbox perjalanan dengan motor, Carrier ass'y, batang gigi matahari
2.Swing gear: pusat sendi punggung, Swing gearbox, Swing motor, Gear pengurangan punggung
3. Bagian-bagian kereta bawah tanah: Rol Track, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4Bagian hidraulik: Pompa hidraulik, katup utama, silinder hidraulik
5. Bagian mesin: Mesin Assety, Crankshaft, Turbocharger, Injektor bahan bakar, Flywheel, motor starter, kipas pendingin, katup solenoid
6Bagian-bagian listrik: kabel, pengontrol, monitor
7.Lainnya: Kit Seal Silinder, Tangki Bahan Bakar, Filter, Boom, Arm, Bucket dll.
- Kami bisa memasok suku cadang berikut
1 Bagian hidraulik: pompa hidraulik, katup utama, silinder hidraulik, drive akhir, motor perjalanan, mesin ayunan, motor ayunan dll.
2 Bagian mesin: bagian mesin, piston, ring piston, blok silinder, kepala silinder, poros engkol, turbocharger, pompa injeksi bahan bakar, motor starter dan alternator dll.
3 Bagian bagian bawah karet: roller rel, roller Carrier, Track Link, sepatu rel, Sprocket, Idler dan bantalan Idler dll.
4 Bagian kabin: kabin operator, kabel, monitor, pengontrol, kursi, pintu dll.
5 Bagian pendingin: radiator, AC, kompresor, after cooler dll.
6 Bagian lain: Kit layanan, lingkaran ayunan, kap mesin, sendi ayunan, tangki bahan bakar, filter, boom, lengan, ember dll.
1. Menawarkan produk berkualitas tinggi & kompetitif
2. Dukungan 6 bulan garansi
3. 100% diuji sebelum pengiriman
4Pengiriman tepat waktu.
5. Berbagai sensor tekanan minyak, Fuel Tank Level Sensor, Sensor Suhu, Sensor Kecepatan untuk excavator
6. Lebih dari 15 tahun produksi dan 11 tahun pengalaman perdagangan luar negeri
7Tim QC profesional.
8Tim penjualan terbaik, layanan 24 jam.
- Pengemasan dan Pengiriman
Rincian kemasan:
Kemasan dalam: film plastik untuk pembungkus
Pengemasan luar: kayu
Pengiriman:
Dalam waktu 3 hari setelah menerima pembayaran, melalui udara atau ekspres atau laut berdasarkan
jumlah dan keadaan darurat.
1. Dengan kurir: DHL, UPS, FEDEX, TNT adalah perusahaan kurir utama kami bekerja sama,
2. Dengan Air: Pengiriman dari bandara Guangzhou ke bandara kota tujuan pelanggan.
3Dengan laut: Pengiriman dari pelabuhan Huangpu.
