| Aplikasi |
Peralatan ayunan excavator |
| Nama |

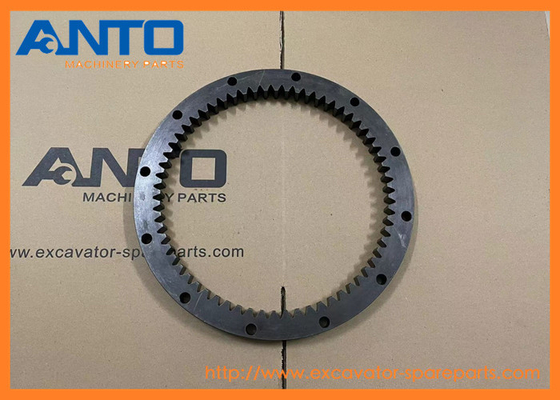

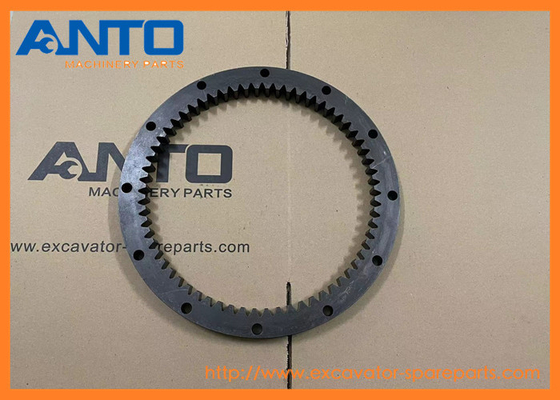

Gelang Gir |
| Bagian No |
1719387 171-9387 |
| Model |
320C 320C FM 320D 320D FM 320D FM RR 322C 323D LN 323D SA 323E L 325C 325C FM 325D 325D L 325D MH 329D 329D L 329D LN 329E 329E L 329E L
|
| Waktu pengiriman |
Stok untuk pengiriman mendesak |
| Kualitas |
Baru, kualitas OEM |
| MOQ |
1 PCS |
| Desain |
dibuat di Cina |
| Alat transportasi |
Perjalanan laut/udara, DHL FEDEX UPS TNT Express |
| Pengemasan |
Sesuai permintaan atau kemasan standar |
Ekskavator 320C 320C FM 320D 320D FM 320D FM RR 322C 323D LN 323D SA 323E L 325C 325C FM 325D 325D L
325D MH 329D 329D L 329D LN 329E 329E L 329E
- Lebih banyak suku cadang yang dikirimkan ke mesin CATAku tidak tahu.
| 1912684 Gear-planetary |
| 320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 323D LN, 323D SA, 323E L, 325C, 325C FM, 325D, 325D L, 325D MH, 329D, 329D L, 329D LN, 329E, 329E L, 329E LN, OEMS |
| |
| 1695592 Gear-planetary |
| 320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 322C FM, 323D LN, 323D SA, 323E L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325C FM, 325D, 325D L, 325D MH, 326D L, 329D, 329D L, 329D L, 32Aku tidak tahu. |
| |
| 1695593 Gear-planetary |
| 320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 322C FM, 323D LN, 323D SA, 323E L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325C FM, 325D, 325D L, 325D MH, 326D L, 329D, 329D L, 329D L, 32Aku tidak tahu. |
| |
| 1695594 GEAR-RING |
| 322C, 322C FM, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 326D L |
| |
| 1912675 Gear-Planetary |
| 322C, 322C FM, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 326D L |
| |
| 7Y0663 GEAR-PLANET |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| |
| 7Y0676 GEAR-PLANET |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| |
| 7Y0659 GEAR-PLANET |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| |
| 7Y0639 GEAR-SUN |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
- Daftar bagian katalogAku tidak tahu.
| Posisi. |
Bagian No. |
Qty |
Nama bagian |
Komentar |
| 1 |
3E-2338 |
[2] |
pipa colokan |
|
| 2 |
267-6863 BJ |
[1] |
SHIM (0,75-MM THK) |
|
| |
7Y-0752 BJ |
[1] |
SHIM (0,8-MM THK) |
|
| |
267-6864 BJ |
[1] |
SHIM (0,85-MM THK) |
|
| |
267-6865 BJ |
[1] |
SHIM (0,9-MM THK) |
|
| |
267-6866 BJ |
[1] |
SHIM (0,95-MM THK) |
|
| |
7Y-0753 BJ |
[1] |
SHIM (1-MM THK) |
|
| |
267-6867 BJ |
[1] |
SHIM (1,2-MM THK) |
|
| |
267-6868 BJ |
[1] |
SHIM (1,4-MM THK) |
|
| |
7Y-0754 BJ |
[1] |
SHIM (1,6-MM THK) |
|
| |
267-6869 BJ |
[1] |
SHIM (1.8-MM THK) |
|
| |
267-6870 BJ |
[1] |
SHIM (2-MM THK) |
|
| |
267-6871 BJ |
[1] |
SHIM (2.3-MM THK) |
|
| 5 |
094-0578 B |
[1] |
PLATE (8-MM THK) |
|
| |
094-0579 B |
[1] |
PLATE (9-MM THK) |
|
| |
094-0580 B |
[1] |
PLATE (10-MM THK) |
|
| 8 |
094-1528 |
[12] |
WASHER (53X84X1-MM THK) |
|
| 9 |
114-1540 J |
[4] |
PIN-DOWEL |
|
| 10 |
168-8452 J |
[2] |
Bantalan bola |
|
| 11 |
169-5589 |
[1] |
Gear-SUN (24-TEETH) |
|
| 12 |
169-5590 |
[1] |
Gear-SUN (24-TEETH) |
|
| 13 |
169-5592 |
[3] |
Gear-Planetary (23-TIH) |
|
| 14 |
169-5593 |
[3] |
Gear-Planetary (23-TIH) |
|
| 15 |
169-5601 |
[3] |
SHAFT-PLANETARY |
|
| 16 |
169-5602 |
[3] |
SHAFT-PLANETARY |
|
| 17 |
171-9387 |
[1] |
RING-GEAR (64-TEETH) |
|
| 18 |
191-2569 |
[3] |
Bantalan AS (ROLLER KAGIS) |
|
| 19 |
191-2570 |
[6] |
Bantalan AS (ROLLER KAGIS) |
|
| 20 |
191-2571 |
[1] |
Pembawa-Planetary |
|
| 21 |
191-2676 |
[1] |
GANG-RING (72-TEETH) |
|
| 22 |
191-2683 |
[1] |
Gear-SUN (20-TEETH) |
|
| 23 |
191-2684 |
[3] |
Gear-Planetary (21-TEETH) |
|
| 24 |
191-2685 |
[3] |
AS BEARING |
|
| 25 |
191-2686 |
[1] |
CARRIER AS |
|
| |
191-2687 |
[3] |
MEMBERANGKAN RACE |
|
| 26 |
191-2689 |
[3] |
WASHER (34X70X1-MM THK) |
|
| 27 |
191-2690 |
[3] |
WASHER (42.3X70X1-MM THK) |
|
| 28 |
199-4503 |
[1] |
PELUAR |
|
| 29 |
207-1571 J |
[1] |
SEAL GP-DUO-CONE |
|
| |
214-3570 |
[2] |
RING-TORIC |
|
| 30 |
267-6797 J |
[1] |
Rumah-Motor |
|
| 31 |
267-6798 J |
[1] |
Perumahan |
|
| 32 |
267-6799 |
[1] |
Pembawa-Planetary |
|
| 33 |
267-6800 J |
[1] |
GANG-CUPLING |
|
| 43 |
093-1731 |
[2] |
Pengendalian cincin |
|
| 44 |
095-0891 |
[6] |
Pin-SPRING |
|
| 45 |
096-0433 |
[3] |
Pengendalian cincin |
|
| 46 |
096-3216 M |
[2] |
SETSCREW-SOCKET (M12X1.75X12-MM) |
|
| 47 |
171-9298 |
[1] |
SEAL-O-RING |
|
| 48 |
179-8733 M |
[16] |
BOLT (M20X2.5X170-MM) |
|
| 49 |
7M-8485 |
[2] |
SEAL-O-RING |
|
| 50 |
7Y-0595 |
[3] |
SPACER (58X79.6X6-MM THK) |
|
| 51 |
7Y-5217 JM |
[16] |
Kepala Bolt-Socket (M20X2.5X70-MM) |
|
| 52 |
8T-3282 J |
[16] |
WASHER-HARD (22X35X3.5-MM THK) |
|
| 53 |
8T-4123 |
[16] |
WASHER (22X35X3.5-MM THK) |
|
| 54 |
9X-6032 M |
[12] |
Kepala soket baut (M10X1.5X30-MM) |
|
| 55 |
1U-8846 B |
|
SEALANT-GASKET |
|
| |
|
|
|
| |
|
|
KIT PEMBERAHAN yang tersedia: |
| |
267-6818 J |
[1] |
KIT-FINAL Drive BEARING |
|
| |
B |
|
Gunakan sesuai kebutuhan |
| |
J |
|
KIT MARKED J SERVICES PART (s) MARKED J |
| |
M |
|
Bagian Metrik |
- Kami bisa memasok suku cadang berikut
1 Bagian hidraulik: pompa hidraulik, katup utama, silinder hidraulik, drive akhir, motor perjalanan, mesin ayunan, motor ayunan dll.
2 Bagian mesin: bagian mesin, piston, ring piston, blok silinder, kepala silinder, poros engkol, turbocharger, pompa injeksi bahan bakar, motor starter dan alternator dll.
3 Bagian bagian bawah karet: roller rel, roller Carrier, Track Link, sepatu rel, Sprocket, Idler dan bantalan Idler dll.
4 Bagian kabin: kabin operator, kabel, monitor, pengontrol, kursi, pintu dll.
5 Bagian pendingin: radiator, AC, kompresor, after cooler dll.
6 Bagian lain: Kit layanan, lingkaran ayunan, kap mesin, sendi ayunan, tangki bahan bakar, filter, boom, lengan, ember dll.
1. Menawarkan produk berkualitas tinggi & kompetitif
2. Dukungan 6 bulan garansi
3. 100% diuji sebelum pengiriman
4Pengiriman tepat waktu.
5. Berbagai sensor tekanan minyak, Fuel Tank Level Sensor, Sensor Suhu, Sensor Kecepatan untuk excavator
6. Lebih dari 15 tahun produksi dan 11 tahun pengalaman perdagangan luar negeri
7Tim QC profesional.
8Tim penjualan terbaik, layanan 24 jam.
- Pengemasan dan Pengiriman
Rincian kemasan:
Kemasan dalam: film plastik untuk pembungkus
Pengemasan luar: kayu
Pengiriman:
Dalam waktu 3 hari setelah menerima pembayaran, melalui udara atau ekspres atau laut berdasarkan
jumlah dan keadaan darurat.
1. Dengan kurir: DHL, UPS, FEDEX, TNT adalah perusahaan kurir utama kami bekerja sama,
2. Dengan Air: Pengiriman dari bandara Guangzhou ke bandara kota tujuan pelanggan.
3Dengan laut: Pengiriman dari pelabuhan Huangpu.
