Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Kategori: | BLOK SILINDER | Model mesin: | DD80 MEGA 160 MEGA 160 |
|---|---|---|---|

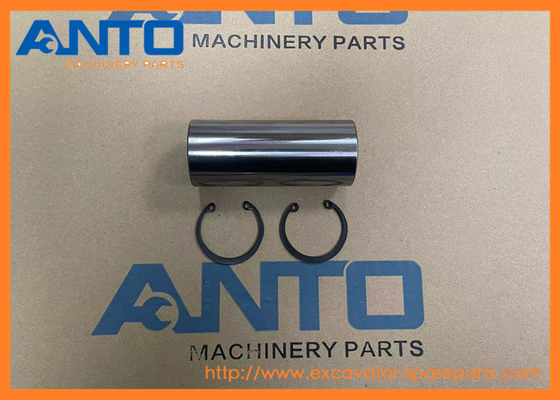

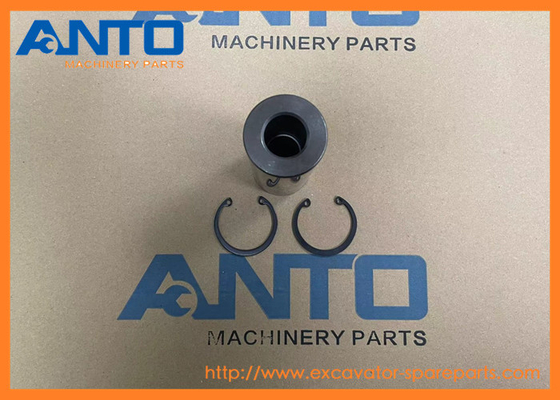

| Aplikasi: | Penggalian | Nama produk: | Pin piston |
| Nomor Bagian: | 65.02502-0002 | Pengemasan: | Karton ekspor standar |
| Nama | Pin piston |
| Bagian No | 65.02502-0002 |
| Model Mesin | DD80 MEGA 160 MEGA 160 |
| Kategori | DOOSAN suku cadang, blok silinder |
| Waktu lead | 1-3 hari |
| Kualitas | Baru, kualitas OEM |
| MOQ | 1 PCS |
| Alat transportasi | Perjalanan laut/udara, DHL FEDEX UPS TNT EMS |
| Pengemasan | Sesuai permintaan atau kemasan standar |
Excavator DD80 MEGA 160 MEGA 160 TIER-II MEGA 160TC SOLAR 130-2 SOLAR 130-III SOLAR 130LC-V Doosan
| 123-00078B PIN |
| Doosan |
| 123-00078A PIN |
| Doosan |
| 123-00254 PIN ((LIFT ARM) |
| Doosan |
| 123-00074B PIN ((BUCKET - LINK) |
| Doosan |
| 123-00077A PIN |
| Doosan |
| 123-00146 PIN |
| Doosan |
| 2123-6105 PIN |
| Doosan |
| 123-00357A PIN ((LIFT ARM - BUCKET) |
| Doosan |
| 123-00076A PIN |
| Doosan |
| 123-00173A PIN ((BUCKET CYLINDER ROD) |
| Doosan |
| 123-00501 PIN |
| Doosan |
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
| 1 | 65.01101-6054G | [1] | Blok silinder ASS'Y | 65.01101-6054H |
| 1 | 65.01101-6054H | [1] | Blok silinder ASS'Y | |
| 10 | 65.04410-0006A | [5] | BUSH;CAM SHAFT | |
| 11 | 65.90302-0009 | [2] | . Plug; Core | |
| 12 | 06.15091-0319 | [2] | Plug;CORE | |
| 13 | 06.15091-0322 | [3] | Plug;CORE | |
| 15 | 65.90310-0030 | [1] | PENGELUAR M12X1.25 | |
| 16 | 06.56190-0704 | [1] | . cincin; SEAL | |
| 17 | 65.90320-0019 | [1] | PT3/8 | |
| 18 | 06.15091-0313 | [2] | Plug;CORE | |
| 19 | 65.90320-0022 | [10] | PELUANG PELUT | |
| 2 | 65.01101-0031D | [1] | BLOCK;CYLINDER | |
| 20 | 65.90201-0058 | [1] | BOLT;STUD M14X12.5X45 | |
| 21 | 65.91605-0001 | [1] | PELUAR | 65.91605-0001E |
| 21 | 65.91605-0001E | [1] | PELUAR | |
| 22 | 06.01913-3113 | [2] | .. BOLT ASS ≠ Y M8X20 | |
| 23 | 65.01112-0021 | [2] | COVER; PUSH ROD CHAMBER | |
| 23 | 65.01112-0021A | [3] | COVER; PUSH ROD CHAMBER | |
| 24 | 65.01112-6003 | [1] | COVER; PUSH ROD CHAMBER | |
| 25 | 65.90020-0049 | [6] | Bolt; Hex. | |
| 26 | 65.96507-0007 | [6] | Pengemasan;PUSH ROD CHAMBER | |
| 27 | 65.01110-6090B | [1] | METAL;Crank STD | |
| 27 | 65.01110-6091B | [1] | Berorientasi, utama 0.25 | |
| 27 | 65.01110-6092B | [1] | Berorientasi, utama 0.50 | |
| 28 | 65.01150-6010A | [2] | WASHER;THRUST STD | |
| 28 | 65.01150-6034A | [2] | WASHER; THRUST 0.25 | |
| 28 | 65.01150-6035A | [2] | WASHER; THRUST 0.50 | |
| 29 | 65.91615-0011 | [1] | COVER; BLIND | |
| 3 | 65.01105-1004 | [6] | Cap;Bearing ((F.M.R.) | |
| 30 | 06.01913-3113 | [2] | .. BOLT ASS ≠ Y M8X20 | |
| 31 | 65.01201-0029B | [6] | Liner;silinder | 65.01201-0067 |
| 31 | 65.01201-0067 | [6] | Liner; Silinder (ALTV.) | |
| 31 | 65.01201-0068 | [6] | Liner;silinder ((1A) | |
| 31 | 65.01201-0069 | [6] | Liner;CYLINDER ((1B) | |
| 31 | 65.01201-0070 | [6] | Liner;silinder ((2A) | |
| 31 | 65.01201-0071 | [6] | Liner; Silinder ((2B) | |
| 36 | 65.01901-0004 | [3] | GASKET;CAMBER COVER | 65.01901-0020 |
| 36 | 65.01901-0020 | [3] | GASKET;PUSH ROD CHAMBER (Kamar tongkat dorong) | |
| 37 | 06.56021-0106 | [1] | O-RING;O/P DRIVE FLANGE | |
| 38 | 65.90310-0135 | [1] | Plug;Screw | |
| 39 | 06.56190-0706 | [1] | Segel cincin | |
| 40 | 65.05903-0013 | [1] | GASKET | 65.05903A0013 |
| 40 | 65.05903A0013 | [1] | GASKET;Flanges | |
| 41 | 65.98130-0040A | [1] | Adaptor | |
| 42 | 65.06310-6003 | [1] | Plug;Drain | |
| 44 | 04.50010-0811 | [1] | HOSE;VINYL | |
| 45 | 06.56190-0713 | [1] | RING;SEAL | |
| 48 | 06.56021-0102 | [1] | . O-RING | |
| 5 | 65.01105-1003 | [1] | Cap;Bearing ((NO.4) | |
| 52 | 65.05401-5002 | [1] | Katup bantuan ASS'Y | 65.05401-5002F |
| 52 | 65.05401-5002F | [1] | Katup bantuan ASS'Y | |
| 53 | 65.27441-7006 | [1] | Switch;OIL PRESS | |
| 55 | 65.97401-0050 | [1] | Klip;pipa | |
| 7 | 65.91710-0001 | [2] | .. RING; STOPPER | |
| 8 | 65.90020-0029 | [14] | Bolt, Hex. | 65.90020-0066A |
| 8 | 65.90020-0066A | [14] | . BOLT;BRG CAP | |
| 9 | 65.04410-0012 | [1] | BUSH;CAM SHAFT | 65.04410-0007A |
| 9 | 65.04410-0007A | [1] | BUSH;CAM SHAFT |
1 Bagian hidraulik: pompa hidraulik, katup utama, silinder hidraulik, drive akhir, motor perjalanan, mesin ayunan, motor ayunan dll.
2 Bagian mesin: mesin, piston, ring piston, blok silinder, kepala silinder, poros engkol, turbocharger, pompa injeksi bahan bakar, motor pemicu dan alternator dll.
3 Bagian bawah kereta: Rol Track, Rol Carrier, Track Link, Sepatu Track, Sprocket, Idler dan bantalan Idler dll.
4 Bagian kabin: kabin operator, kabel, monitor, pengontrol, kursi, pintu dll.
5 Bagian pendingin: radiator, AC, kompresor, after cooler dll.
6 Bagian lain: Kit layanan, lingkaran ayunan, kap mesin, sendi ayunan, tangki bahan bakar, filter, boom, lengan, ember dll.
Keuntungan
1. Menawarkan produk berkualitas tinggi & kompetitif
2. Dukungan garansi 12 bulan
3. 100% diuji sebelum pengiriman
4Pengiriman tepat waktu.
5. Berbagai sensor tekanan minyak, Fuel Tank Level Sensor, Sensor Suhu, Sensor Kecepatan untuk excavator
6. Lebih dari 15 tahun produksi dan 11 tahun pengalaman perdagangan luar negeri
7Tim QC profesional.
8Tim penjualan terbaik, layanan 24 jam.
Rincian kemasan:
Kemasan dalam: film plastik untuk pembungkus
Pengemasan luar: kayu
Pengiriman:
Dalam waktu 3 hari setelah menerima pembayaran, melalui udara atau ekspres atau laut berdasarkan
jumlah dan keadaan darurat.
1. Dengan kurir: DHL, UPS, FEDEX, TNT adalah perusahaan kurir utama yang kita bekerja sama,
2. Dengan Air: Pengiriman dari bandara Guangzhou ke bandara kota tujuan pelanggan.
3Dengan laut: Pengiriman dari pelabuhan Huangpu.
