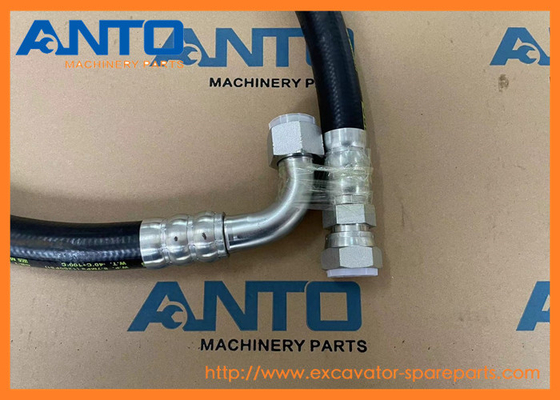

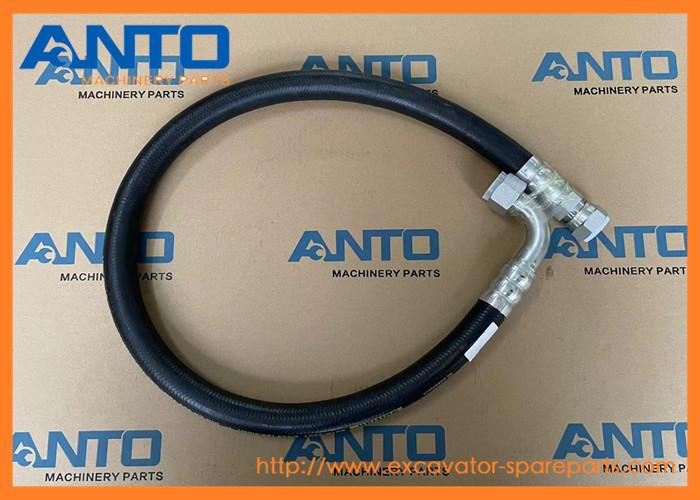

Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Kategori: | Garis Gp-Kembali | Model mesin: | 330D 330D FM 330D L 330D LN 336D 336D L |
|---|---|---|---|
| Aplikasi: | Penggalian | Nama produk: | Selang |
| Nomor Bagian: | 275-1675 2751675 | Pengemasan: | Karton ekspor standar |
| Menyoroti: | C9 330D suku cadang excavator,275-1675 suku cadang excavator,2751675 suku cadang excavator |
||
| Nama | Selang |
| Bagian No | 275-1675 2751675 |
| Model Mesin | 330D 330D FM 330D L 330D LN 336D 336D L |
| Kategori | Garis Gp-Return |
| Waktu lead | 1-3 hari |
| Kualitas | Baru, kualitas OEM |
| MOQ | 1 PCS |
| Alat transportasi | Perjalanan laut/udara, DHL FEDEX UPS TNT EMS |
| Pengemasan | Sesuai permintaan atau kemasan standar |
Ekskavator 330D 330D FM 330D L 330D LN 336D 336D L 336D LN 336D2 336D2 L 340D L 340D2 L
MOBILE HYD POWER UNIT 330D 330D L 336D L
Penggali beroda M330D Cater.pillar.
| 2352470 HOSE AS |
| 365C, 365C L, 365C L MH, 374D L, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L |
| 2181223 HOSE AS |
| 345C L, 365B, 365B II, 365B L, 365C, 365C L, 365C L MH |
| 2125334 HOSE AS |
| 365B, 365B II, 365B L, 365C, 365C L, 365C L MH |
| 3402958 HOSE AS |
| 336E, 336E L, 336E LN, 390D, 390D L |
| 2181230 HOSE AS |
| 365B, 365B II, 365C, 365C L, 385B, 385C, 385C L |
| 2125540 HOSE AS |
| 375, 385B, 385C, 385C L |
| 2125539 HOSE AS |
| 375, 385B, 385C, 385C L |
| 2181227 HOSE AS |
| 328D LCR, 365B, 365B II, 365B L, 365C, 365C L |
| 2125330 HOSE AS |
| 330C, 365B, 365B II, 365B L, 365C L MH |
| 2125328 HOSE AS |
| 365B, 365B II, 365B L, 365C, 365C L |
| 1960498 HOSE AS |
| 325C, 330C, 330C FM, 330C L |
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
| 1 | 7Y-5247 M | [1] | U-BOLT (M10X1.5-THD) | |
| 2 | 173-4816 | [1] | Dukungan AS | |
| 3 | 190-7745 | [1] | VALVE GP-CHECK (OIL COOLER BYPASS) | |
| 4 | 194-0242 | [1] | Flang | |
| 5 | 227-0428 | [1] | Selang | |
| 6 | 241-6215 | [2] | Elbow AS | |
| (SATU-SATU TERTINGGI) | ||||
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8076 | [1] | Lempung | ||
| 7 | 255-1971 | [1] | TUBE AS | |
| 8 | 255-1981 | [1] | Dukungan AS | |
| 9 | 255-1986 I | [1] | Selang AS | |
| 10 | 255-1989 I | [1] | Selang AS | |
| 11 | 275-1675 I | [1] | Selang AS | |
| 12 | 338-6971 Y | [1] | SENSOR GP-PRESSURE (HYDRAULIC OIL) | |
| 12A. | 338-6971 Y | [1] | Sensor GP-Pressure (HYDRAULIC OIL) | |
| 13 | 471-6813 | [1] | PIPE AS | |
| 14 | 471-9901 | [1] | Blok | |
| 15 | 471-9902 | [2] | Blok | |
| 16 | 481-2758 | [1] | PIPE AS | |
| 17 | 096-4883 M | [2] | LOCKNUT (M10X1.5-THD) | |
| 18 | 101-7402 M | [12] | Kepala soket baut (M12X1.75X30-MM) | |
| 19 | 105-3489 M | [16] | Kepala soket baut (M12X1.75X80-MM) | |
| 20 | 144-0367 | [2] | KELAMP-HOSE | |
| 21 | 148-8357 | [1] | Elbow AS | |
| 5K-9090 | [1] | SEAL-O-RING | ||
| 6V-9008 | [1] | Lempung | ||
| 7M-8485 | [1] | SEAL-O-RING | ||
| 22 | 148-8364 | [1] | Elbow AS | |
| 3K-0360 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 6V-8625 | [1] | Lempung | ||
| 23 | 148-8407 | [1] | PLUG AS | |
| 3J-1907 | [1] | SEAL-O-RING | ||
| 9S-4191 | [1] | PLUG (9/16-18-THD) | ||
| 24 | 164-4180 | [1] | PLUG AS | |
| 7M-8485 | [1] | SEAL-O-RING | ||
| 9S-4181 | [1] | PLUG (1-5/16-12-THD) | ||
| 25 | 164-5616 | [1] | PLUG AS | |
| 2S-4078 | [1] | SEAL-O-RING | ||
| 9S-6130 | [1] | PLUG | ||
| 26 | 1P-3703 | [4] | SEAL-REKTANGULER | |
| 27 | 1P-3704 | [4] | SEAL-REKTANGULER | |
| 28 | 1P-5767 | [4] | Flang-Half | |
| 29 | 4J-0524 | [1] | SEAL-O-RING | |
| 30 | 4J-0527 | [1] | SEAL-O-RING | |
| 31 | 5P-7468 | [1] | CLIP (SLOT) | |
| 32 | 5P-7469 | [1] | CLIP (TAB) | |
| 33 | 5P-8444 | [1] | GROMMET (37-MM ID) | |
| 34 | 6J-2680 | [2] | SEAL-O-RING | |
| 35 | 6V-1572 | [2] | CLIP (SLOT) | |
| 36 | 6V-1573 | [2] | CLIP (TAB) | |
| 37 | 6V-1875 | [2] | GROMMET | |
| 38 | 7X-2546 M | [4] | BOLT (M10X1.5X180-MM) | |
| 39 | 8T-4121 | [8] | WASHER-HARD (11X21X2.5-MM THK) | |
| 40 | 8T-4139 M | [4] | BOLT (M12X1.75X30-MM) | |
| 41 | 8T-4186 M | [2] | BOLT (M10X1.5X40-MM) | |
| 42 | 8T-4194 M | [8] | BOLT (M12X1.75X50-MM) | |
| 43 | 8T-4223 | [13] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 44 | 8T-4956 M | [1] | BOLT (M12X1.75X35-MM) | |
| Aku | REFERENSI KE SISTEM INFORMASI HIDRAULIK | |||
| M | Bagian Metrik | |||
| Y | Ilustrasi terpisah |
1 Bagian hidraulik: pompa hidraulik, katup utama, silinder hidraulik, drive akhir, motor perjalanan, mesin ayunan, motor ayunan dll.
2 Bagian mesin: mesin, piston, ring piston, blok silinder, kepala silinder, poros engkol, turbocharger, pompa injeksi bahan bakar, motor pemicu dan alternator dll.
3 Bagian bawah kereta: Rol Track, Rol Carrier, Track Link, Sepatu Track, Sprocket, Idler dan bantalan Idler dll.
4 Bagian kabin: kabin operator, kabel, monitor, pengontrol, kursi, pintu dll.
5 Bagian pendingin: radiator, AC, kompresor, after cooler dll.
6 Bagian lain: Kit layanan, lingkaran ayunan, kap mesin, sendi ayunan, tangki bahan bakar, filter, boom, lengan, ember dll.
Keuntungan
1. Menawarkan produk berkualitas tinggi & kompetitif
2. Dukungan garansi 12 bulan
3. 100% diuji sebelum pengiriman
4Pengiriman tepat waktu.
5. Berbagai sensor tekanan minyak, Fuel Tank Level Sensor, Sensor Suhu, Sensor Kecepatan untuk excavator
6. Lebih dari 15 tahun produksi dan 11 tahun pengalaman perdagangan luar negeri
7Tim QC profesional.
8Tim penjualan terbaik, layanan 24 jam.
Rincian kemasan:
Kemasan dalam: film plastik untuk pembungkus
Pengemasan luar: kayu
Pengiriman:
Dalam waktu 3 hari setelah menerima pembayaran, melalui udara atau ekspres atau laut berdasarkan
jumlah dan keadaan darurat.
1. Dengan kurir: DHL, UPS, FEDEX, TNT adalah perusahaan kurir utama kami bekerja sama,
2. Dengan Air: Pengiriman dari bandara Guangzhou ke bandara kota tujuan pelanggan.
3Dengan laut: Pengiriman dari pelabuhan Huangpu.
