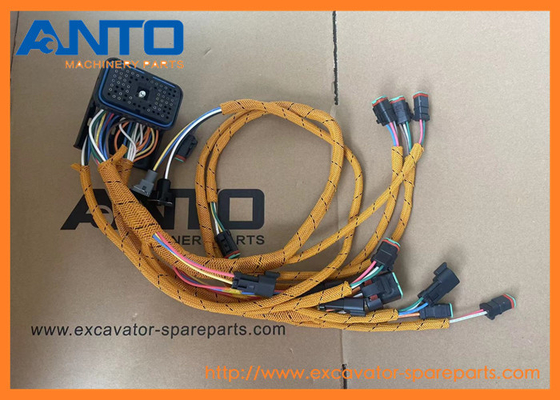

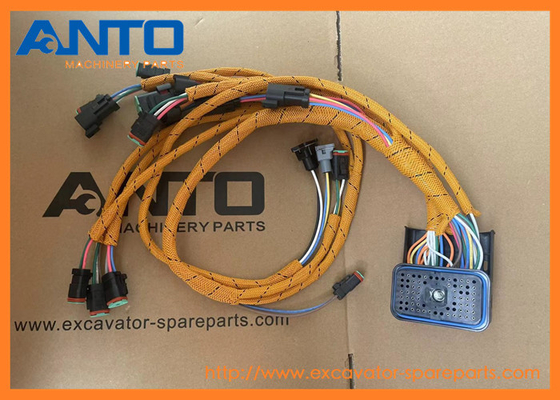

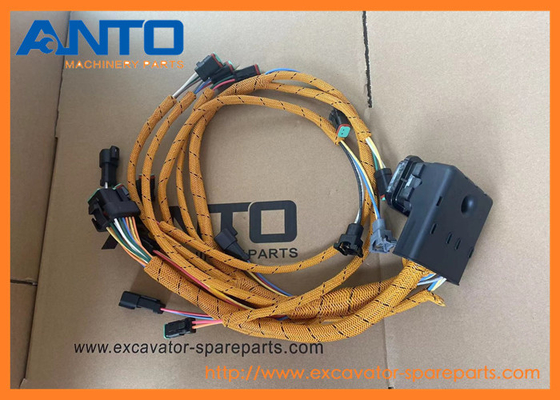

- 230-6279 2306279 Wiring Harness Excavator Spare Parts Cocok Untuk C-9 E330C
| Nama |
Wiring Harness |
| Nomor Suku Cadang |
230-6279 2306279 |
| Model Mesin |
330C 330C FM 330C L 330C MH |
| Model Mesin |
C-9 |
| Waktu tunggu |
1-3 HARI |
| Kualitas |
Baru, kualitas OEM |
| MOQ |
1 PCS |
| Cara transportasi |
Melalui laut/udara, DHL FEDEX UPS TNT EMS |
| Pengepakan |
Sesuai permintaan atau pengepakan standar |
| 1. Distribusi Daya: Memasok tegangan stabil ke injektor bahan bakar, modul pengapian, sensor, dan unit kontrol. |
| |
| 2. Transmisi Sinyal: Membawa data analog/digital antara sensor (misalnya, suhu, tekanan, kecepatan) dan modul kontrol mesin (ECM/ECU). |
| |
| 3. Integrasi Sistem: Memungkinkan komunikasi antara mesin dan sistem kontrol kendaraan/mesin. |
| |
| 4. Keandalan: Melindungi kabel dari getaran, panas, oli, dan abrasi di lingkungan operasi yang keras. |
CHALLENGER MTC735
EXCAVATOR 330C 330C FM 330C L 330C MH
MESIN INDUSTRI C-9
UNIT DAYA HIDROLIK MOBILE 330C
MOBIL GRADER 12H
TRACK FELLER BUNCHER TK711 TK721 TK722 TK732 TK741 TK751 TK752
TRACK-TYPE TRACTOR D6R II
WHEEL SCRAPER 627G 637D 637G
- Lebih banyak wiring harness lainnya suku cadang cocok untuk mesin C A T
| 4190841 HARNESS AS-ENGINE |
| 140M, 140M 2, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 511, 521, 521B, 522, 5... |
| |
| 2153249 HARNESS AS-ENGINE |
| 12H, 140M, 140M 2, 160M, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 340D L, 511, 521, 521B, 522, 522B, 532, 541, 541 ... |
| |
| 2011283 HARNESS ASSEMBLY |
| 12H, 330C, 330C FM, 330C L, 330C MH, 627G, 637G, C-9, D6R II, MTC735, TK711, TK721, TK722, TK732 |
| |
| 2306279 HARNESS AS-ENGINE |
| 12H, 330C, 330C FM, 330C L, 330C MH, 627G, 637D, 637G, C-9, D6R II, MTC735, TK711, TK721, TK722, TK732, TK741, TK751, TK752 |
| |
| 2118002 HARNESS AS-WINDOW WIPER |
| 320C, 322C, 325C, 330C, 330C L |
| |
| 2183573 HARNESS AS-CHASSIS |
| 330C |
| |
| 2200920 HARNESS AS-BOX |
| 330C |
| |
| 2256266 HARNESS AS-SWITCH |
| 330C |
| |
| 2256265 HARNESS AS-PANEL |
| 330C |
| |
| 2335018 HARNESS AS |
| 330C |
| |
| 2041829 HARNESS AS |
| 330C L |
| |
| 2041830 HARNESS AS |
| 330C L |
- Daftar suku cadang Catalog
| Pos. |
Nomor Suku Cadang |
Qty |
Nama Suku Cadang |
Komentar |
| 1 |
3S-2093 C |
[24] |
STRAP-CABLE |
|
| 3 |
188-9865 |
[1] |
HARNESS AS-ENGINE (FUEL INJECTOR) |
|
| |
3S-2093 |
[5] |
STRAP-CABLE |
|
| |
105-1797 |
[5] |
MOUNT |
|
| |
191-7823 |
[1] |
RECEPTACLE AS |
|
| 4 |
226-0903 C |
[1] |
CABLE AS |
|
| 5 |
230-6279 C |
[1] |
HARNESS AS-ENGINE (ELECTRONIC CONTROL MODULE) |
|
| |
214-7170 L |
[1] |
KIT-REPAIR (ELECTRICAL CONNECTORS)(FOR EXTREME COLD CLIMATES) |
|
| |
102-8803 |
[2] |
KIT-RECEPTACLE (3-PIN) |
|
| |
|
|
(EACH INCLUDES RECEPTACLE AS & WEDGE) |
|
| |
3E-3371 |
[2] |
WEDGE-RECEPTACLE LOCK (3-PIN) |
|
| |
8T-8737 |
[8] |
PLUG-SEAL |
|
| |
155-2276 |
[3] |
WEDGE-PLUG LOCK (3-PIN) |
|
| |
155-2260 |
[3] |
KIT-CONNECTING PLUG (3-PIN) |
|
| |
|
|
(EACH INCLUDES PLUG AS & WEDGE) |
|
| |
194-5226 |
[8] |
WIRE AS (16-GA) |
|
| |
102-8802 |
[2] |
KIT-RECEPTACLE (2-PIN) |
|
| |
|
|
(EACH INCLUDES RECEPTACLE AS & WEDGE) |
|
| |
102-8803 |
[3] |
KIT-RECEPTACLE (3-PIN) |
|
| |
|
|
(EACH INCLUDES RECEPTACLE AS & WEDGE) |
|
| |
100-3320 |
[1] |
PLUG AS-CONNECTOR (2-PIN) |
|
| |
126-5011 |
[1] |
SEAL-CONNECTOR |
|
| |
111-2416 |
[1] |
PLUG AS-CONNECTOR (2-PIN) |
|
| |
126-5011 |
[1] |
SEAL-CONNECTOR |
|
| |
8T-8737 |
[35] |
PLUG-SEAL |
|
| |
3S-2093 |
[3] |
STRAP-CABLE |
|
| |
155-2270 |
[4] |
KIT-CONNECTING PLUG (2-PIN) |
|
| |
160-7690 |
[1] |
PLUG AS-CONNECTOR (70-PIN) |
|
| 6 |
223-4453 Y |
[1] |
SWITCH GP-MAGNETIC (24-VOLT)(AIR INLET HEATER) |
|
| 7 |
3E-4353 |
[2] |
WASHER-HARD (11X25X3-MM THK) |
|
| 8 |
4P-7581 C |
[5] |
CLIP (LADDER) |
|
| 9 |
4P-8134 C |
[3] |
CLIP (LADDER) |
|
| 10 |
5P-7970 CM |
[1] |
NUT (M8X1.25-THD) |
|
| 11 |
6V-4369 |
[1] |
CLIP |
|
| 12 |
6V-5839 C |
[3] |
WASHER (11X21X2.5-MM THK) |
|
| 13 |
6V-6317 CM |
[4] |
BOLT (M10X1.5X20-MM) |
|
| 14 |
7I-2272 M |
[2] |
BOLT (M5X0.8X12-MM) |
|
| 15 |
8T-0328 |
[2] |
WASHER-HARD (5.5X10X1-MM THK) |
|
| 16 |
8T-4137 CM |
[1] |
BOLT (M10X1.5X20-MM) |
|
| 17 |
8T-4205 |
[1] |
WASHER-HARD (7.2X14.5X2-MM THK) |
|
| 18 |
8T-5451 M |
[1] |
BOLT (M6X1X12-MM) |
|
| 19 |
9M-1974 |
[1] |
WASHER-HARD (8.8X16X2-MM THK) |
|
| |
C |
|
PERUBAHAN DARI TIPE SEBELUMNYA |
|
| |
L |
|
KIT DENGAN TANDA "L" MENYEDIAKAN SUMBAT KELAS OLI UNTUK KELAS OLI 0W20, 10W30, 15W40 |
|
| |
M |
|
BAGIAN METRIK |
|
| |
Y |
|
ILUSTRASI TERPISAH |
|
- Kami dapat memasok suku cadang berikut
1 Suku cadang hidrolik: pompa hidrolik, katup utama, silinder hidrolik, final drive, motor travel, mesin ayun, motor ayun dll.
2 Suku cadang mesin: rakitan mesin, piston, ring piston, blok silinder, kepala silinder, poros engkol, turbocharger, pompa injeksi bahan bakar, motor starter dan alternator dll.
3 Suku cadang undercarriage: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler dan Idler cushion dll.
4 Suku cadang kabin: kabin operator, wiring harness, monitor, controller, jok, pintu dll.
5 Suku cadang pendingin: Radiator, AC, kompresor, after cooler dll.
6 Suku cadang lainnya: Service kit, swing circle, kap mesin, swing joint, tangki bahan bakar, filter, boom, arm, bucket dll.
