Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Kategori: | Motor Perjalanan | Model mesin: | R210LC7 R210LC7A R210LC7H RC215C7 |
|---|---|---|---|
| Aplikasi: | Penggalian | Nama produk: | Kit Segel |
| Nomor Bagian: | XKAH01054 | Pengemasan: | Karton ekspor standar |
| Menyoroti: | Seal Kit Excavator Spare Parts,Suku Cadang Ekskavator HYUNDAI,R210LC-7 suku cadang excavator |
||

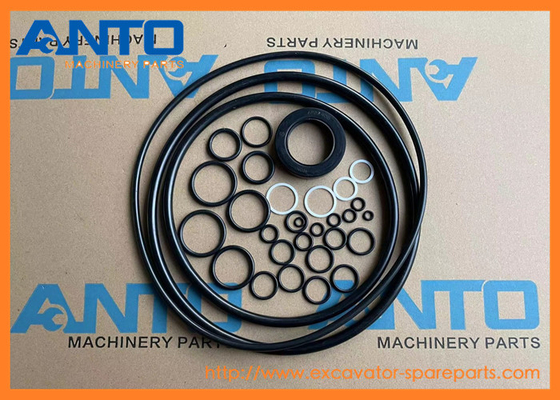

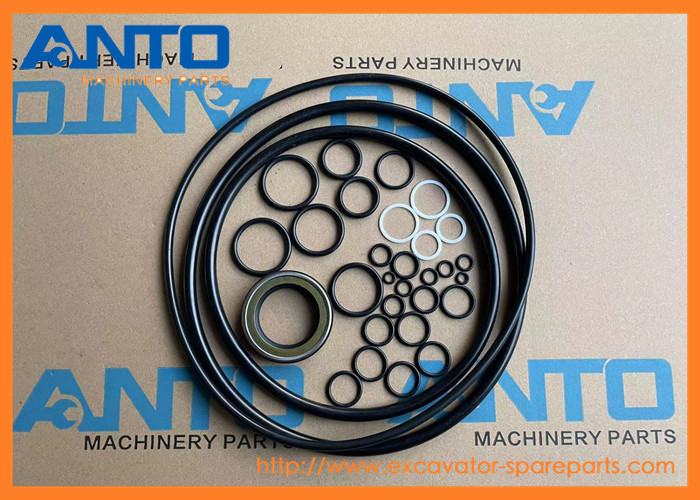

| Nama | Kit Seal |
| Bagian No | XKAH01054 |
| Model Mesin | R210LC7 R210LC7A |
| Kategori | Motor perjalanan |
| Waktu lead | 1-3 hari |
| Kualitas | Baru, kualitas OEM |
| MOQ | 1 PCS |
| Alat transportasi | Perjalanan laut/udara, DHL FEDEX UPS TNT EMS |
| Pengemasan | Sesuai permintaan atau kemasan standar |
7-SERI CRAWLER EXCAVATOR R210LC7 R210LC7A R210LC7H RC215C7 RC215C7H Hyundai
| XKAY-00014 SEAL-DUST |
| H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2O, H2OR140LC9Aku tidak tahu. |
| XKAH-00031 SEAL-FLOATING |
| R140LC-7, R210LC7, R210NLC7 |
| XKAH-00916 SEAL-FLOATING |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R180LC7, R180LC7A, R210LC7, R210LC7A, R210LC7H, R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S, RC215C7, RC215C7H |
| XKAQ-00219 SEAL-FLOATING |
| H1N1, H1N2, H1N2, H1N3, H1N1, H1N1, H1N1, H1N1, H1N1, H1N2, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N2, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1N1, H1NR210Aku tidak tahu. |
| 31Y1-15885 SEAL KIT |
| R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, RC215C7, RC215C7H, RD210-7, RD210-7V, RD220-7 |
| 31Y1-15230 SEAL KIT |
| R200W7, R210LC7, R210LC7H, R210NLC7 |
| 31Y1-15235 SEAL KIT |
| R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, RC215C7, RC215C7H |
| 31Y1-15236 SEAL KIT |
| R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, RC215C7, RC215C7H, RD210-7, RD220-7 |
| 31Y1-15700 SEAL KIT |
| R200W7, R210LC7, R210LC7H, R210NLC7 |
| 31Y1-15705 SEAL KIT |
| R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, R290LC7A, R305LC7, R450LC7, R450LC7A, RC215C7, RC215C7H, RD210-7, RD220-7 |
| 31Y1-15880 SEAL KIT |
| R210LC7, R210LC7H |
| 31Y1-06731 SEAL KIT |
| HW210, HX220L, R200W3, R210LC3, R210LC3H, R210LC7, R210LC7A, R210LC7H, RC215C7, RC215C7H, RD220-7 |
| XJBN-00973 SEAL KIT-EPPR CASING |
| HW210, HX220L, HX220NL, HX235L, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R215LC7, R220LC9A, R235LCR9, R235LCR9A, R260LC9S, R290LC7, R290LC7A, RB220LC9S, RB260LC9S, RC215C7,RC215C7HAku tidak tahu. |
| 31Y1-18060 SEAL KIT |
| R210LC7 |
| 3066211 SEAL/O-RING |
| R200W7, R210LC7, R210LC9BC, R210NLC7, R210W9S, R260LC9S, RC215C7, RD220-7 |
| 3864029 SEAL/O-RING |
| R200W7, R210LC7, R210NLC7, RC215C7, RD220-7 |
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
| * | 31N6-40060 | [1] | ASSY MOTOR Perjalanan | Lihat ILLUST |
| * | 31N6-40060BG | [1] | ASSY MOTOR Perjalanan | Lihat ILLUST |
| * | 31N6-40061BG | [1] | ASSY MOTOR Perjalanan | Lihat ILLUST |
| N*-1. | XKAH-01043 | [1] | Perangkat motor | |
| *-11. | XKAH-00891 | [1] | C/BLOCK & PISTON KIT | |
| 104 | XKAH-01044 | [2] | Blok-silinder | |
| 104 | XKAH-00892 | [2] | Blok-silinder | |
| 110 | XKAH-00407 | [2] | PEMANAS | |
| 114 | XKAH-00406 | [1] | SPRING | |
| 145 | XKAH-00405 | [1] | RING-SNAP | |
| *-12. | XKAH-00893 | [1] | PISTON ASSY | |
| N105. | XKAH-01045 | [9] | Piston | |
| N106. | XKAH-00419 | [9] | Sepatu | |
| 151 | XKAH-00404 | [6] | Roller | |
| 107 | XKAH-00403 | [1] | PEMERINTAH PLATE | |
| 107 | XKAH-01679 | [1] | PEMERINTAH PLATE | |
| 108 | XKAH-00402 | [1] | Ball-Thrust | |
| *-13. | XKAH-00895 | [1] | PISTON ASSY | |
| N161. | XKAH-00422 | [1] | Piston | |
| N162. | XKAH-00421 | [1] | Sepatu | |
| 163 | XKAH-00094 | [1] | SPRING-2 Kecepatan | |
| 102 | XKAH-00410 | [1] | SHAFT-MAIN | |
| 103 | XKAH-01046 | [1] | Plat-Swash | |
| 109 | XKAH-00897 | [1] | PELAT-TIMING | |
| 115 | XKAH-00399 | [3] | FRIKSI PLATE | |
| 116 | XKAH-00401 | [4] | PEMATING PLATE | |
| 112 | XKAH-00898 | [1] | PEMARKASAN PISTON | |
| 113 | XKAH-00397 | [9] | SPRING | |
| 132 | XKAH-00388 | [1] | OIL SEAL | |
| 149 | XKAH-00899 | [1] | Ball-Bearing | |
| 150 | XKAH-00900 | [1] | Ball-Bearing | |
| 139 | XKAH-00396 | [1] | O-RING | |
| 178 | XKAH-00395 | [1] | O-RING | |
| 181 | XKAH-00377 | [2] | PIN-PARALEL | |
| 167 | XKAH-00095 | [2] | PIVOT | |
| 168 | XKAH-00034 | [2] | PIN-PARALEL | |
| *-21. | XKAH-01065 | [1] | Klep RELIEF ASSY | |
| *-21. | XKAH-01680 | [1] | Klep RELIEF ASSY | |
| N301. | XKAH-01066 | [1] | SEAT | |
| N302. | XKAH-01064 | [1] | Plunger | |
| N303. | XKAH-01063 | [1] | ROD | |
| N304. | XKAH-00668 | [1] | Piston | |
| N305. | XKAH-00670 | [1] | Badan | |
| N306. | XKAH-01062 | [1] | PLUG | |
| N307. | XKAH-00671 | [1] | SPRING | |
| N308. | XKAH-00669 | [1] | SHIM | |
| 309 | XKAH-00035 | [1] | O-RING | |
| 310 | XKAH-00035 | [1] | O-RING | |
| 311 | XKAH-00665 | [1] | RING-BACK UP | |
| *-3. | XKAH-01035 | [1] | Bagian Belakang | |
| *-31. | XKAH-01036 | [1] | KIT FLANGE BACK | |
| 201 | XKAH-01037 | [1] | Flang belakang | |
| 201 | XKAH-01677 | [1] | Flang belakang | |
| 223 | XKAH-01038 | [1] | SPOOL utama | |
| *-32. | XKAH-00874 | [2] | Stopper ASSY | |
| *-32. | XKAH-01400 | [2] | Stopper ASSY | |
| N294. | XKAH-00875 | [1] | Stopper-A | |
| N298. | XKAH-00876 | [1] | Stopper-B | |
| N295. | XKAH-01052 | [1] | SPOOL | |
| N296. | XKAH-01040 | [1] | SPRING | |
| 224 | XKAH-00328 | [2] | PLUG | |
| 228 | XKAH-00045 | [2] | SPRING | |
| 279 | XKAH-00047 | [2] | O-RING | |
| 226 | XKAH-00043 | [2] | PLUG | |
| 227 | XKAH-00879 | [2] | VALVE-CHECK | |
| 230 | XKAH-00046 | [2] | SPRING | |
| 234 | XKAH-00048 | [2] | O-RING | |
| 221 | XKAH-00032 | [1] | PLUG-PF | |
| 238 | XKAH-00035 | [1] | O-RING | |
| 252 | XKAH-00327 | [4] | PLUG-PT | |
| 252 | XKAH-00050 | [4] | PLUG-RO | |
| 244 | XKAH-00880 | [5] | PLUG | |
| 268 | XKAH-00056 | [2] | Baja bola | |
| 242 | XKAH-00411 | [1] | VALVE | |
| 272 | XKAH-00462 | [1] | VALVEL SEAT | |
| 276 | XKAH-00382 | [1] | RING | |
| 275 | XKAH-00383 | [1] | SPRING | |
| 218 | XKAH-00881 | [1] | VALVEL SEAT | |
| 219 | XKAH-00392 | [1] | VALVE | |
| 220 | XKAH-00391 | [1] | SPRING | |
| 222 | XKAH-00390 | [1] | RING ((untuk T-TYPE) | |
| 233 | XKAH-00389 | [1] | O-RING | |
| 263 | XKAH-01039 | [1] | VALVE-dua kecepatan | |
| 263 | XKAH-01678 | [1] | VALVE-dua kecepatan | |
| 264 | XKAH-01041 | [1] | PLUG RO | |
| 265 | XKAH-00052 | [1] | O-RING | |
| 266 | XKAH-00384 | [1] | SPRING-dua kecepatan | |
| 241 | XKAH-00065 | [2] | PIN-PARALEL | |
| 282 | XKAH-00066 | [9] | BOLT-SOCKET | |
| 297 | XKAH-00885 | [1] | Oriffice | |
| N199. | XKAH-01042 | [1] | NAME PLATE (Plat Nama) | |
| 200 | XKAH-00116 | [2] | PELUANG-PELUANG | |
| K. | XKAH-01054 | [1] | SEAL KIT | Lihat ILLUST |
1 Bagian hidraulik: pompa hidraulik, katup utama, silinder hidraulik, drive akhir, motor perjalanan, mesin ayunan, motor ayunan dll.
2 Bagian mesin: mesin, piston, ring piston, blok silinder, kepala silinder, poros engkol, turbocharger, pompa injeksi bahan bakar, motor pemicu dan alternator dll.
3 Bagian bagian bawah karet: roller rel, roller Carrier, Track Link, sepatu rel, Sprocket, Idler dan bantalan Idler dll.
4 Bagian kabin: kabin operator, kabel, monitor, pengontrol, kursi, pintu dll.
5 Bagian pendingin: radiator, AC, kompresor, after cooler dll.
6 Bagian lain: Kit layanan, lingkaran ayunan, kap mesin, sendi ayunan, tangki bahan bakar, filter, boom, lengan, ember dll.
Keuntungan
1. Menawarkan produk berkualitas tinggi & kompetitif
2. Dukungan garansi 12 bulan
3. 100% diuji sebelum pengiriman
4Pengiriman tepat waktu.
5. Berbagai sensor tekanan minyak, Fuel Tank Level Sensor, Sensor Suhu, Sensor Kecepatan untuk excavator
6. Lebih dari 15 tahun produksi dan 11 tahun pengalaman perdagangan luar negeri
7Tim QC profesional.
8Tim penjualan terbaik, layanan 24 jam.
Rincian kemasan:
Kemasan dalam: film plastik untuk pembungkus
Pengemasan luar: kayu
Pengiriman:
Dalam waktu 3 hari setelah menerima pembayaran, melalui udara atau ekspres atau laut berdasarkan
jumlah dan keadaan darurat.
1. Dengan kurir: DHL, UPS, FEDEX, TNT adalah perusahaan kurir utama kami bekerja sama,
2. Dengan Air: Pengiriman dari bandara Guangzhou ke bandara kota tujuan pelanggan.
3Dengan laut: Pengiriman dari pelabuhan Huangpu.
