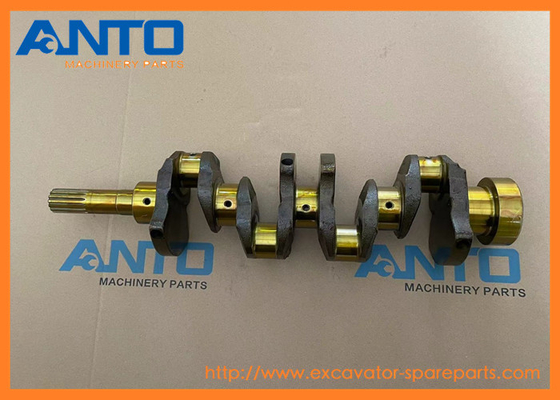

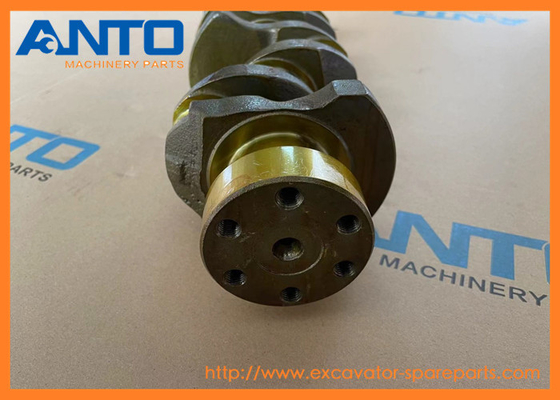

- 16282-23013 1G871-23010 Comp.Krankshaft KUBOTA Bagian Mesin Excavator Untuk V1505 F3560
| Aplikasi |
Penggali, Pemotong Depan |
| Nama |
Comp. Crankshaft |
| Bagian No |
16282-23013 |
| Model Mesin |
KX71 KX91 F3560 F3680 |
| Model mesin |
V1505 |
| Waktu lead |
1-3 hari |
| Kualitas |
Baru, kualitas OEM |
| MOQ |
1 PCS |
| Alat transportasi |
Perjalanan laut/udara, DHL FEDEX UPS TNT EMS |
| Pengemasan |
Sesuai permintaan atau kemasan standar |
Excavator ((K / KH / KX / U SERIES) KX71
Ekskavator ((KH / KX / K / U SERIES) KX91
FONT MOWER ((F / FZ / GF SERIES) F3560 F3680 Kubota
- Lebih banyak bagian poros engkol lainnya yang cocok untuk mesin KUBOTA
| 16217-56044 COMP.LEVER,FORK |
| F2560, F2560E, F3060, F3560 |
| |
| 16241-55062 COMP.WEIGHT, Gubernur |
| B1700D, B1700HSD, B1700HSDB, B1700HSE, B2100D, B2100HSD, B2100HSDB, B2400HSD, B2400HSDB, B2410HSD, B7500D, B7500DTN, B7500HSD, B7510D, B7510HSD, B7610HSD, BX2200D, F2560, F2560E, F3060... |
| |
| 16251-04020 COMP. Gear |
| B21, B2100HSD, B2400HSD, F2560, F2560E, F3060, F3560, KX61, ST |
| |
| 16261-72700 COMP.FLANGE WATER |
| F2400, FZ2100, FZ2400, KX41H, KX61(H), KX71, R310(OLD, R310BH(OLD |
| |
| 16261-72703 COMP.FLANGE air |
| KX41H, KX61(H), KX71 |
| |
| 17562-25016 COMP.FLYWHEEL |
| F3060, F3560, F3680, F3690 |
| |
| 19620-01500 COMP.OIL PAN |
| KX71 |
| |
| 1E024-01017 COMP.CRANK |
| F3560 |
| |
| 1E024-01018 COMP.CRANK |
| F3560 |
| |
| 1G091-03044 COMP.BANGKAT SILINDER |
| B3030HSD, B3030HSDC, F3680 |
| |
| 1G092-03040 COMP.BANGU CYLINDER |
| KX71 |
| |
| 1G677-03040 COMP.BANGU CYLINDER |
| F3680, KX71 |
| Posisi. |
Bagian No. |
Qty |
Nama bagian |
Komentar |
| 10 |
H1600-21100 |
[4] |
Piston |
STD/ Bagian ini termasuk ASSY RING,PISTON <=5F9999 |
| 10 |
16060-21113 |
[4] |
Piston |
STD >=5G0001 |
| 10 |
H1600-21900 |
[4] |
Piston |
+0,5mm / Bagian ini termasuk ASSY RING,PISTON <= 5F9999 |
| 10 |
16060-21913 |
[4] |
Piston |
+0,5mm >=5G0001 |
| 10 |
16060-21114 |
[4] |
Piston |
STD >=5W0001 |
| 10 |
16060-21914 |
[4] |
Piston |
+0,5mm >=5W0001 |
| 20 |
16261-21050 |
[4] |
ASSY ring piston |
STD <= 5F9999 |
| 20 |
16261-21090 |
[4] |
ASSY ring piston |
+0,5 mm <= 5F9999 |
| 20 |
16292-21090 |
[4] |
Cincin, piston, ASSY |
+0,5mm >=5G0001 |
| 20 |
16292-21050 |
[4] |
Cincin, piston, ASSY |
STD >=5G0001 |
| 30 |
16241-21310 |
[4] |
PIN, PISTON |
|
| 40 |
16241-21330 |
[8] |
CIRCLIP ((PIN,PISTON) |
|
| 50 |
16241-22012 |
[4] |
ROD, CONNECTING, ASSY |
|
| 60 |
16241-21980 |
[4] |
BUSH, PISTON PIN |
<= 3M1512 |
| 60 |
16241-21982 |
[4] |
BUSHING ((PIN, PISTON) |
>=3N0001 |
| 70 |
16241-22142 |
[8] |
BOLT ((PENGANTAR ROD) |
|
| 80 |
16241-22310 |
[4] |
METAL, CRANKPIN |
SET STD |
| 80 |
16241-22970 |
[4] |
METAL, CRANKPIN |
-0,2mm SET |
| 80 |
16241-22980 |
[4] |
METAL, CRANKPIN |
-0,4mm SET |
| 90 |
16282-23013 |
[1] |
COMP. Crankshaft |
|
| 100 |
07715-00401 |
[4] |
Bola 1/4 |
<= 6X9999 |
| 110 |
16241-24110 |
[1] |
Gear, crank. |
|
| 120 |
16271-95230 |
[1] |
Kunci |
|
| 130 |
16241-35630 |
[1] |
Gear ((OIL PUMP DRIVE) |
|
| 140 |
16241-23280 |
[1] |
Sleeve, Crankshaft |
|
| 150 |
16271-23250 |
[1] |
KOLER, Crankshaft |
|
| 160 |
04811-10280 |
[1] |
O-RING |
<=WH4333 |
| 160 |
04814-10280 |
[1] |
RING |
>=WJ0001 |
| 170 |
16241-23470 |
[1] |
METAL (crankshaft) |
Penyakit menular seksual |
| 170 |
16241-23910 |
[1] |
METAL (crankshaft) |
-0,2mm |
| 170 |
16241-23920 |
[1] |
METAL (crankshaft) |
-0.4mm |
| 200 |
15521-23530 |
[2] |
Metal, sisi |
Penyakit menular seksual |
| 200 |
15521-23950 |
[2] |
Metal, sisi |
+0,2 mm |
| 200 |
15521-23960 |
[2] |
Metal, sisi |
+0,4mm |
| 210 |
1920-23540 |
[2] |
Metal, sisi |
Penyakit menular seksual |
| 210 |
1920-23970 |
[2] |
Metal, sisi |
+0,2 mm |
| 210 |
1920-23980 |
[2] |
Metal, sisi |
+0,4mm |
| 220 |
07916-26862 |
[4] |
KIT RING, PISTON |
STD <= 3M1525 |
| 220 |
07916-26872 |
[4] |
Cincin, piston, kit |
+0,5 mm <= 3M1525 |
| 220 |
07916-26873 |
[4] |
KIT RING, PISTON |
+0,5 mm >=3N0001 |
| 220 |
07916-26863 |
[4] |
KIT RING, PISTON |
STD >=3N0001 |
| 230 |
07916-28710 |
[1] |
Kit logam, mesin. |
Penyakit menular seksual |
| 230 |
07916-28830 |
[1] |
Kit logam, mesin. |
-0,2mm/+0,2mm |
| 230 |
07916-28840 |
[1] |
Kit logam, mesin. |
-0,4mm/+0,4mm |
- Kami bisa memasok suku cadang berikut
1 Bagian hidraulik: pompa hidraulik, katup utama, silinder hidraulik, drive akhir, motor perjalanan, mesin ayunan, motor ayunan dll.
2 Bagian mesin: mesin, piston, ring piston, blok silinder, kepala silinder, poros engkol, turbocharger, pompa injeksi bahan bakar, motor pemicu dan alternator dll.
3 Bagian bagian bawah karet: roller rel, roller Carrier, Track Link, sepatu rel, Sprocket, Idler dan bantalan Idler dll.
4 Bagian kabin: kabin operator, kabel, monitor, pengontrol, kursi, pintu dll.
5 Bagian pendingin: radiator, AC, kompresor, after cooler dll.
6 Bagian lain: Kit layanan, lingkaran ayunan, kap mesin, sendi ayunan, tangki bahan bakar, filter, boom, lengan, ember dll.
1. Menawarkan produk berkualitas tinggi & kompetitif
2. Dukungan garansi 12 bulan
3. 100% diuji sebelum pengiriman
4Pengiriman tepat waktu.
5. Berbagai sensor tekanan minyak, Fuel Tank Level Sensor, Sensor Suhu, Sensor Kecepatan untuk excavator
6. Lebih dari 15 tahun produksi dan 11 tahun pengalaman perdagangan luar negeri
7Tim QC profesional.
8Tim penjualan terbaik, layanan 24 jam.
- Pengemasan dan Pengiriman
Rincian kemasan:
Kemasan dalam: film plastik untuk pembungkus
Pengemasan luar: kayu
Pengiriman:
Dalam waktu 3 hari setelah menerima pembayaran, melalui udara atau ekspres atau laut berdasarkan
jumlah dan keadaan darurat.
1. Dengan kurir: DHL, UPS, FEDEX, TNT adalah perusahaan kurir utama kami bekerja sama,
2. Dengan Air: Pengiriman dari bandara Guangzhou ke bandara kota tujuan pelanggan.
3Dengan laut: Pengiriman dari pelabuhan Huangpu.
