Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Aplikasi: | Suku Cadang Final Drive Excavator | Bagian nama: | casing motor perjalanan |
|---|---|---|---|
| Nomor Bagian: | 39Q6-41110 39Q641110 | Nomor model: | R210LC9 R220LC9S RD220-7 |
| Jaminan: | 6/12 Bulan | Kondisi: | 100% Baru, kualitas OEM |

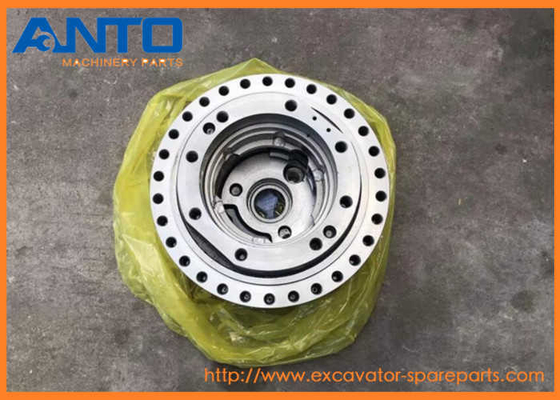

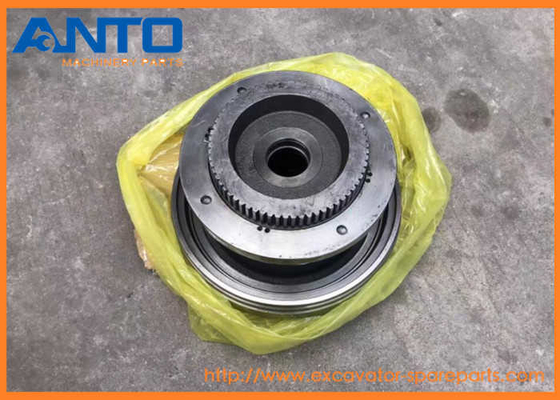

39Q6-41110 39Q641110 Travel Motor Casing Untuk HYUNDAI R220LC-9 Final Drive Parts
| Bagian No | 39Q6-41110 39Q641110 |
| Bagian nama | casing motor perjalanan |
| Ekskavator terapan |
R210LC7A R210LC9 RD220-7 R220LC9 HX220 |
| Grup kategori | Suku Cadang Penggerak Final Excavator |
| Tempat asal | Dibuat di RRC |
| Jangka waktu pembayaran | T/T, Western Union, MoneyGram |
| Sedang mengemas | Sebagai permintaan atau kemasan standar |
| waktu pengiriman | Stok untuk pengiriman mendesak |
| Sarana transportasi | Melalui laut/udara, DHL FEDEX TNT UPS EMS |
EXCAVATOR PERANGKAT SERI 7 R210LC7A R215LC7 RD210-7 RD210-7V RD220-7
EXCAVATOR PERANGKAT SERI 9 R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 RB220LC9S RD220LC9
F-SERIES CRAWLER EXCAVATOR HX220L HX220NL Hyundai
| XJBN-00242 CASING-A |
| R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290LC7, R290LC7H, R305LC7, R320LC7, R320LC7A, RC215C7, RC215C7H, RD340LC-7 |
| XJBN-00241 CASING-B |
| R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290LC7, R290LC7H, R305LC7, R320LC7, R320LC7A, RC215C7, RC215C7H, RD340LC-7 |
| XJBN-01034 CASING-PUMP |
| HW210, HX220L, HX220NL, HX235L, HX260L, HX300L, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R215LC7, R220LC9A, R235LCR9, R235LCR9, R235LCR9A, R250LC7 |
| 31Q6-17610 KASING A |
| R210LC9, R220LC9A, R235LCR9, R235LCR9A |
| 31Q6-17620 CASING B |
| R210LC9, R220LC9A, R235LCR9, R235LCR9A |
| KASING 39Q6-11110 |
| HW210, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX480L, HX520L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180W09209A, R180W09109A, R180LC9S, R180LC9S |
| 39Q6-11280 CASING A-VALVE |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9MH, R210W9S, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, RB220LC9S, RD220LC9 |
| KASING XKAQ-00962 |
| HX160L, HX180L, R160LC7, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC7, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7, R210LC7A, R2109BC9, R2109BC9, R210, R210LC7H, R2109BC9, R210 |
| 39Q6-11281 CASING A-VALVE |
| HW210, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX480L, HX520L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R170W9, R180LC9, R1809, R1809 |
| KASING 39Q6-12171 |
| HX220L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9210, R2109, ... |
| XKAQ-00659 CASING-SHAFT |
| R210LC7A |
| 39Q6-12172 KASING |
| HW210, HX160L, HX220L, HX220NL, HX235L, R160LC9, R160LC9A, R160LC9S, R160W9A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R2109LC9BC, R2109 |
| KASING 39Q6-12170 |
| R210W-9, R210W9MH, R210W9S |
| 39Q6-11280 CASING A-VALVE |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9MH, R210W9S, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, RB220LC9S, RD220LC9 |
| KASING 39Q6-11110 |
| HW210, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX480L, HX520L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180W09209A, R180W09109A, R180LC9S, R180LC9S |
| ZGAQ-04045 CASING-DIFERENSIAL |
| R140W9, R140W9A, R140W9S, R170W7, R170W7A, R170W9, R170W9S, R180W9A, R180W9S |
| XKAY-01810 CASING-VALVE |
| R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R145CR9, R145CR9A, RB140LC9S, RD140LC9 |
| KASING XJBN-01749 |
| R1200-9 |
| XCAM-00040 CASING RODA |
| HL850EX, SL763 |
| KASING XCAM-00005 |
| HL850EX, SL763 |
| ZGAQ-04277 KASING |
| HL780-9, HL780-9S |
| ZGAQ-03929 CASING-AXLE |
| HL760-7A, HL760-9, HL760-9A, HL760-9S, HL760-9SB, HL760-F |
| ZGAQ-03895 CASING-AXLE |
| HL757-7A, HL757-9, HL757-9S, HL757TM-9, HL757TM7A, HL760-7A, HL760-9, HL760-9A, HL760-9S, HL760-9SB, HL760-F |
| XKAY-00563 CASING-SHAFT |
| R80-7, R80-7A, RD80-7 |
| KASING XJBN-01621 A |
| HW210, R210W-9, R210W9A, R210W9AMH, R210W9MH |
| KASING XJBN-01620 B |
| HW210, R210W-9, R210W9A, R210W9AMH, R210W9MH |
| XJBN-01757 CASING-DEPAN |
| R210W9S |
| XJBN-01755 CASING-PUMP |
| R210W9S |
| KASING XKAQ-00962 |
| HX160L, HX180L, R160LC7, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC7, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7, R210LC7A, R2109BC9, R2109BC9, R210, R210LC7H, R2109BC9, R210 |
| KASING 39Q7-41110 |
| HX235L, HX260L, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| XKAY-02052 CASING-SHAFT |
| R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC9, R330LC9S, R330LC9A, R330LC9A, R330LC9A |
| XKAY-01090 CASING-SHAFT |
| R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| KASING 39Q8-41110 |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC9SH, RD340LC9SH |
| KASING 38Q8-41110 |
| R260LC9S, R290LC7A, R290LC9, RD340LC-7 |
| XKAH-01599 CASING A-VALVE |
| HX380L, R360LC7A, R360LC9, R370LC7, R380LC9A, R380LC9DM, R380LC9MH, R380LC9SH, R390LC9 |
| KASING 39QA-41110 |
| HX430L, R430LC9, R430LC9A, R430LC9SH |
| pos. | Bagian No | jumlah | Nama bagian | Komentar |
| *. | @ | [1] | TRAVEL MOTOR ASSY | LIHAT 4155 |
| *-1. | @ | [1] | UNIT MOTOR PERJALANAN | LIHAT 4155 |
| *-1. | @ | [1] | UNIT MOTOR PERJALANAN | LIHAT 4155 |
| *-1. | @ | [1] | UNIT MOTOR PERJALANAN | LIHAT 4155 |
| 2 | 39Q6-41120 | [1] | STEKER | |
| 1 | 39Q6-41110 | [1] | SELUBUNG | |
| K2. | 39Q6-41120 | [1] | STEKER | |
| 3 | 39Q6-41130 | [1] | SEAL-OIL | |
| 4 | 39Q6-41140 | [1] | PLAT-DORONG | |
| 5 | S602-060001 | [1] | PENYIMPANAN CINCIN | |
| NK6. | 39Q6-41160 | [1] | PISTON | |
| NK7. | 39Q6-41170 | [1] | SEAL-PISTON | |
| 8 | 39Q6-41180 | [1] | BATANG | |
| 9 | 39Q6-41190 | [1] | BEARING-ROLLER | |
| K10. | 39Q6-41200 | [1] | BEARING-JARUM | |
| 11 | S602-08001 | [1] | PENYIMPANAN CINCIN | |
| 12 | S601-04001 | [1] | PENYIMPANAN CINCIN | |
| 13 | 39Q6-41210 | [1] | RING-SNAP | |
| 14 | 39Q6-41220 | [1] | PLAT-DORONG | |
| 15 | 39Q6-41230 | [1] | BALL-STEEL | |
| 16 | 39Q6-41240 | [2] | POROS | |
| 17 | 39Q6-41250 | [1] | PLATE-SWASH | |
| K18. | 39Q6-41280 | [1] | BLOK-SILINDER | |
| K19. | 39Q6-41290 | [9] | MUSIM SEMI | |
| K20. | 39Q6-41310 | [1] | PANDUAN-BOLA | |
| K21. | 39Q6-41320 | [1] | PELAT-PELANGGA | |
| K22. | 39Q6-41330 | [9] | PISTON ASSY | |
| N22-1. | 39Q6-41341 | [1] | PISTON | TIDAK DITAMPILKAN |
| N22-2. | 39Q6-41350 | [1] | SEPATU | TIDAK DITAMPILKAN |
| 23 | 39Q6-41361 | [5] | GESER PIRING | |
| 24 | 39Q6-41370 | [6] | TERPISAH PELAT | |
| 25 | 39Q6-41380 | [1] | PARKIR PISTON | |
| K26. | 39Q6-41390 | [1] | RING | |
| K27. | 39Q6-41400 | [1] | RING | |
| 28 | 39Q6-41410 | [1] | PLATE-VALVE | |
| K31. | 39Q6-41440 | [1] | O-RING | |
| K | 39Q6-41150 | [1] | KIT PISTON | LIHAT ILUSTRASI |
| K | 39Q6-41260 | [1] | KIT ROTARY | LIHAT ILUSTRASI |
| K | 39Q6-41270 | [1] | KIT BLOK SILINDER | LIHAT ILUSTRASI |
| K | 39Q6-41300 | [1] | KIT RETAINER | LIHAT ILUSTRASI |
| K | 39Q6-41810 | [1] | KIT O-RING | LIHAT ILUSTRASI |
| K | 39Q6-41820 | [1] | D-RING KIT | LIHAT ILUSTRASI |
| K | 39Q6-41462K | [1] | KIT PENUTUP BELAKANG | LIHAT ILUSTRASI |
| K | 38Q6-41462K | [1] | KIT PENUTUP BELAKANG | LIHAT ILUSTRASI |
| N. | @ | [AR] | BAGIAN TIDAK DISEDIAKAN |
1 Bagian hidrolik: pompa hidrolik, katup utama, silinder hidrolik, final drive, motor travel, mesin ayun, motor ayun, dll.
2 Bagian-bagian mesin: ass'y mesin, piston, ring piston, blok silinder, kepala silinder, poros engkol, turbocharger, pompa injeksi bahan bakar, motor starter dan alternator dll.
3 Bagian undercarriage: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, bantalan Idler dan Idler dll.
4 Bagian kabin: kabin operator, rangkaian kabel, monitor, pengontrol, kursi, pintu, dll.
5 Bagian pendingin: Radiator, AC, kompresor, after cooler dll.
6 Suku cadang lainnya: Kit servis, lingkaran ayun, kap mesin, sambungan ayun, tangki bahan bakar, filter, boom, lengan, ember, dll.
1. Detail Kemasan
Kantong Plastik & Kotak Plastik, Sesuaikan, Atau Merek pelanggan
2. Waktu Pengiriman
1-2 hari setelah menerima pembayaran
3. Jenis Pengiriman :
EMS, DHL, TNT, UPS, FeDex, Melalui udara & laut ..
1. Semua produk kami diperiksa dan diuji secara ketat sebelum dikemas di pabrik.2.Semua produk kami diproduksi secara ketat sesuai dengan standar suku cadang Asli.
2. Kami memiliki departemen desain dan pengembangan kami sendiri, dengan demikian, kami dapat memproduksi suku cadang sesuai dengan sampel Anda.
3. Kami memiliki tim insinyur profesional untuk menyediakan bantuan teknologi terkait jika pelanggan membutuhkan asisten teknologi kami.
4. Semua produk kami berkualitas baik, harga bersaing, dibandingkan dengan pemasok lain.
5. Kami memiliki dua gudang besar di kota kami, sehingga kami memiliki stok barang yang cukup, yang memungkinkan kami melakukan pengiriman dengan efisiensi tercepat.
6. Kami telah menyelesaikan sistem transportasi untuk mengirimkan barang dengan cara cepat.
7. Pemrosesan sampel, pemrosesan material, pemrosesan agen material, pemrosesan gambar, pemrosesan OEM, dan pemrosesan lainnya semuanya tersedia.
8. Kami memiliki ribuan pelanggan di berbagai negara dan wilayah di seluruh dunia.
