| Aplikasi |

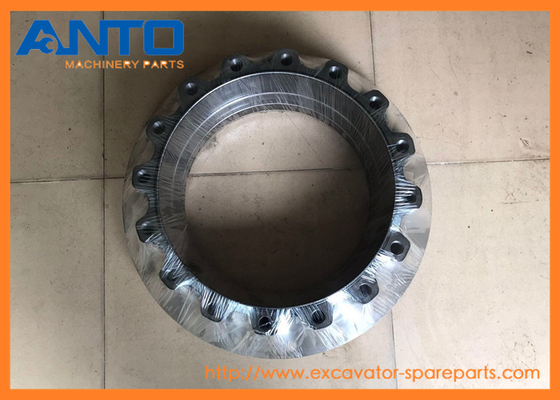

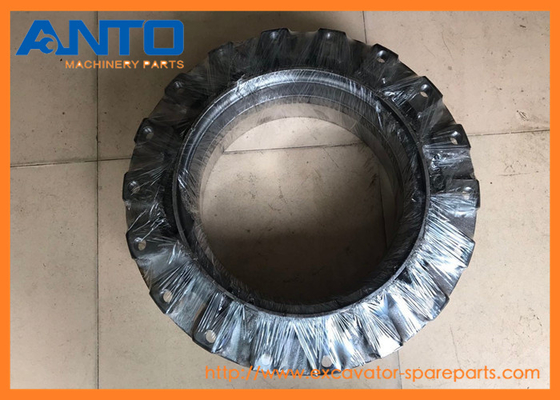

Final drive ekskavator C A T |
| Nama |
Rumah |
| Nomor Suku Cadang |
2676798 267-6798 |
| Model |
320D 320D FM 320D FM RR 323D LN 323D SA 323E L 325C 325D 325D L 325D MH 329D 329D L 329D LN 329E 329E L 329E LN
|
| Waktu Pengiriman |
Stok untuk pengiriman mendesak |
| Kualitas |
Baru, kualitas OEM |
| MOQ |
1 PCS |
| Desain |
buatan China |
| Cara Pengangkutan |
Melalui laut/udara, DHL FEDEX UPS TNT Express |
| Pengepakan |
Sesuai permintaan atau pengepakan standar |
1. Fungsi Perlindungan: Dapat melindungi bagian internal dari kerusakan mekanis eksternal, debu, kelembapan, dan kontaminan lainnya, seperti penutup rumah filter bahan bakar yang melindungi filter bahan bakar. Ini membantu untuk menjaga pengoperasian normal bagian internal dan memperpanjang masa pakainya.
2. Mempertahankan lingkungan kerja: Beberapa rumah, seperti penutup rumah pengatur suhu, dapat membantu menjaga lingkungan termal internal atau lingkungan fluida.
EKSKAVATOR 320D 320D FM 320D FM RR 323D LN 323D SA 323E L 325C 325D 325D L 325D MH 329D 329D L 329D LN 329E 329E L 329E LN
UNIT DAYA HIDROLIK MOBILE 325D 329D L
OEM UNDERCARRIAGE
- Lebih banyak rumah suku cadang yang dipasok ke mesin C A T
| 7T3279 RUMAH AS |
| 120G, 120M, 12G, 12H, 12H ES, 12H NA, 12M, 130G, 140G, 140H, 140H ES, 140H NA, 140M, 143H, 14G, 14H, 14H NA, 14M, 160G, 160H, 160H ES, 160H NA, 160M, 163H, 163H NA, 1673C, 16G, 16H, 16H NA, 16M, 215B,... |
| |
| 7T3973 RUMAH AS-TUAS |
| 120G, 12G, 140G, 140H, 143H, 160H, 163H, 1673C, 16G, 215B, 245, 3176, 3176B, 3176C, 3196, 3208, 322C, 325, 325 L, 325C, 330 L, 3304, 3304B, 3306, 3306B, 3406, 3406B, 3406C, 3406E, 3408, 3408B, 3408C, ... |
| |
| 3E7858 RUMAH AS |
| 120H, 120H ES, 120H NA, 120K, 120K 2, 12K, 135H, 135H NA, 140G, 140K, 140K 2, 160K, 214B, 3116, 3126, 3126B, 3126E, 320B, 322B L, 322B LN, 322C, 322C FM, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 32... |
| |
| 1333730 RUMAH-PENGATUR AIR |
| 3126, 3126B, 3126E, 325C, 573, 580B, 584, 938G II, 950G II, 962G II, C7, IT38G II, IT62G II, SPP101 |
| |
| 1291169 RUMAH-POMPA |
| 3116, 3126, 3126B, 3126E, 322C, 322C FM, 325C, 325C FM, 328D LCR, 329D L, 962G II, C7, M325C MH |
| |
| 1352359 RUMAH |
| 311, 318C, 319C, 320B, 320B U, 320C, 320C FM, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320N, 321C, 321D LCR, 323D L, 323D LN, 323D SA |
| |
| 1913235 RUMAH |
| 315C, 315D L, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN, 320E ... |
| |
| 1913236 RUMAH |
| 315C, 315D L, 318C, 319C, 319D, 319D L, 319D LN, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321B, 321C, 321D LCR, 322B LN, 323D L, 323D LN, 323D2 L |
| |
| 1484638 RUMAH |
| 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN, 320E LRR, 320... |
| |
| 3530612 RUMAH-MOTOR |
| 318E L, 319D, 319D L, 319D LN, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 321D LCR, 323D L, 323D LN, 323D2 L, 323E ... |
| Pos. |
No. Bagian |
Jumlah |
Nama bagian |
Komentar |
| 1 |
3E-2338 |
[2] |
PLUG-PIPE |
|
| 2 |
267-6863 BJ |
[1] |
SHIM (0.75-MM THK) |
|
| |
7Y-0752 BJ |
[1] |
SHIM (0.8-MM THK) |
|
| |
267-6864 BJ |
[1] |
SHIM (0.85-MM THK) |
|
| |
267-6865 BJ |
[1] |
SHIM (0.9-MM THK) |
|
| |
267-6866 BJ |
[1] |
SHIM (0.95-MM THK) |
|
| |
7Y-0753 BJ |
[1] |
SHIM (1-MM THK) |
|
| |
267-6867 BJ |
[1] |
SHIM (1.2-MM THK) |
|
| |
267-6868 BJ |
[1] |
SHIM (1.4-MM THK) |
|
| |
7Y-0754 BJ |
[1] |
SHIM (1.6-MM THK) |
|
| |
267-6869 BJ |
[1] |
SHIM (1.8-MM THK) |
|
| |
267-6870 BJ |
[1] |
SHIM (2-MM THK) |
|
| |
267-6871 BJ |
[1] |
SHIM (2.3-MM THK) |
|
| 5 |
094-0578 B |
[1] |
PLATE (8-MM THK) |
|
| |
094-0579 B |
[1] |
PLATE (9-MM THK) |
|
| |
094-0580 B |
[1] |
PLATE (10-MM THK) |
|
| 8 |
094-1528 |
[12] |
WASHER (53X84X1-MM THK) |
|
| 9 |
114-1540 J |
[4] |
PIN-DOWEL |
|
| 10 |
168-8452 J |
[2] |
BALL BEARING |
|
| 11 |
169-5589 |
[1] |
GEAR-SUN (24-TEETH) |
|
| 12 |
169-5590 |
[1] |
GEAR-SUN (24-TEETH) |
|
| 13 |
169-5592 |
[3] |
GEAR-PLANETARY (23-TEETH) |
|
| 14 |
169-5593 |
[3] |
GEAR-PLANETARY (23-TEETH) |
|
| 15 |
169-5601 |
[3] |
SHAFT-PLANETARY |
|
| 16 |
169-5602 |
[3] |
SHAFT-PLANETARY |
|
| 17 |
171-9387 |
[1] |
GEAR-RING (64-TEETH) |
|
| 18 |
191-2569 |
[3] |
BEARING AS (CAGED ROLLER) |
|
| 19 |
191-2570 |
[6] |
BEARING AS (CAGED ROLLER) |
|
| 20 |
191-2571 |
[1] |
CARRIER-PLANETARY |
|
| 21 |
191-2676 |
[1] |
GEAR-RING (72-TEETH) |
|
| 22 |
191-2683 |
[1] |
GEAR-SUN (20-TEETH) |
|
| 23 |
191-2684 |
[3] |
GEAR-PLANETARY (21-TEETH) |
|
| 24 |
191-2685 |
[3] |
BEARING AS |
|
| 25 |
191-2686 |
[1] |
CARRIER AS |
|
| |
191-2687 |
[3] |
RACE-BEARING |
|
| 26 |
191-2689 |
[3] |
WASHER (34X70X1-MM THK) |
|
| 27 |
191-2690 |
[3] |
WASHER (42.3X70X1-MM THK) |
|
| 28 |
199-4503 |
[1] |
COVER |
|
| 29 |
207-1571 J |
[1] |
SEAL GP-DUO-CONE |
|
| |
214-3570 |
[2] |
RING-TORIC |
|
| 30 |
267-6797 J |
[1] |
HOUSING-MOTOR |
|
| 31 |
267-6798 J |
[1] |
HOUSING |
|
| 32 |
267-6799 |
[1] |
CARRIER-PLANETARY |
|
| 33 |
267-6800 J |
[1] |
GEAR-COUPLING |
|
| 43 |
093-1731 |
[2] |
RING-RETAINING |
|
| 44 |
095-0891 |
[6] |
PIN-SPRING |
|
| 45 |
096-0433 |
[3] |
RING-RETAINING |
|
| 46 |
096-3216 M |
[2] |
SETSCREW-SOCKET (M12X1.75X12-MM) |
|
| 47 |
171-9298 |
[1] |
SEAL-O-RING |
|
| 48 |
179-8733 M |
[16] |
BOLT (M20X2.5X170-MM) |
|
| 49 |
7M-8485 |
[2] |
SEAL-O-RING |
|
| 50 |
7Y-0595 |
[3] |
SPACER (58X79.6X6-MM THK) |
|
| 51 |
7Y-5217 JM |
[16] |
BOLT-SOCKET HEAD (M20X2.5X70-MM) |
|
| 52 |
8T-3282 J |
[16] |
WASHER-HARD (22X35X3.5-MM THK) |
|
| 53 |
8T-4123 |
[16] |
WASHER (22X35X3.5-MM THK) |
|
| 54 |
9X-6032 M |
[12] |
BOLT-SOCKET HEAD (M10X1.5X30-MM) |
|
| 55 |
1U-8846 B |
|
SEALANT-GASKET |
|
| |
|
|
|
| |
|
|
KIT PERBAIKAN YANG TERSEDIA: |
| |
267-6818 J |
[1] |
KIT-FINAL DRIVE BEARING |
|
| |
B |
|
GUNAKAN SEPERTI YANG DIPERLUKAN |
| |
J |
|
KIT BERTANDA J BAGIAN LAYANAN(S) BERTANDA J |
| |
M |
|
BAGIAN METRIK |
- Bagian lain yang laris manis
1. Final drive: Gearbox perjalanan, Gearbox perjalanan dengan motor, Carrier ass'y, Poros roda gigi matahari
2. Roda gigi ayun: Center joint ass'y, Gearbox ayun, Motor ayun, Gear reduction ass'y
3. Suku Cadang Undercarriage: Roller track, Track link ass'y, Roller idler, Sprocket, Spring ass'y
4. Suku cadang hidrolik: Pompa hidrolik, Katup utama, Silinder hidrolik
5. Suku cadang mesin: Engine Ass’y, Crankshaft, Turbocharger, Injektor bahan bakar, Flywheel, Motor starter, Kipas pendingin, Katup solenoid
6. Suku cadang listrik: Wiring harness, Controller, Monitor
7. Lainnya: Kit Seal Silinder, Tangki bahan bakar, Filter, Boom, Lengan, Bucket dll.
- Kami dapat menyediakan suku cadang berikut
1 Suku cadang hidrolik: pompa hidrolik, katup utama, silinder hidrolik, final drive, motor perjalanan, mesin ayun, motor ayun dll.
2 Suku cadang mesin: engine ass’y, piston, ring piston, blok silinder, kepala silinder, crankshaft, turbocharger, pompa injeksi bahan bakar, motor starter dan alternator dll.
3 Suku cadang Undercarriage: Roller track, Roller carrier, Track Link, Track shoe, Sprocket, Idler dan Idler cushion dll.
4 Suku cadang kabin: kabin operator, wiring harness, monitor, controller, jok, pintu dll.
5 Suku cadang pendingin: Radiator, AC, kompresor, pendingin setelah dll.
6 Suku cadang lainnya: Kit servis, lingkaran ayun, penutup mesin, sambungan ayun, tangki bahan bakar, filter, boom, lengan, bucket dll.
1. Menawarkan produk berkualitas & kompetitif
2. Mendukung garansi 6 bulan
3. 100% diuji sebelum pengiriman
4. Pengiriman tepat waktu
5. Berbagai macam Sensor Tekanan Oli, Sensor Level Tangki Bahan Bakar, Sensor Suhu, Sensor Kecepatan untuk ekskavator
6. Lebih dari 15 tahun produksi dan 11 tahun pengalaman perdagangan luar negeri
7. Tim QC profesional
8. Tim penjualan terbaik, layanan 24 jam
- Pengepakan dan Pengiriman
Detail Pengepakan :
kemasan dalam : film plastik untuk pembungkus
kemasan luar : kayu
Pengiriman :
dalam waktu 3 hari setelah menerima pembayaran, melalui udara atau ekspres atau melalui laut berdasarkan
kuantitas dan keadaan darurat.
1. Melalui Kurir: DHL, UPS, FEDEX, TNT adalah perusahaan kurir utama yang kami bekerja sama,
2. Melalui Udara: Pengiriman dari bandara Guangzhou ke bandara kota tujuan pelanggan.
3. Melalui Laut: Pengiriman dari pelabuhan Huangpu.
