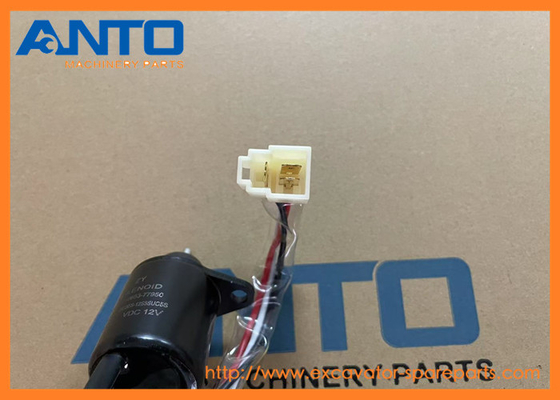

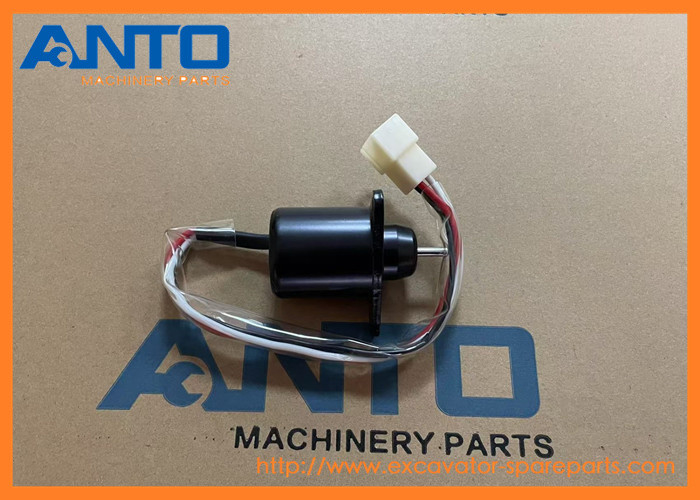

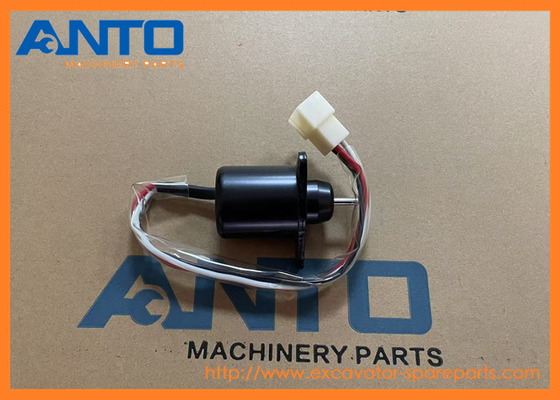

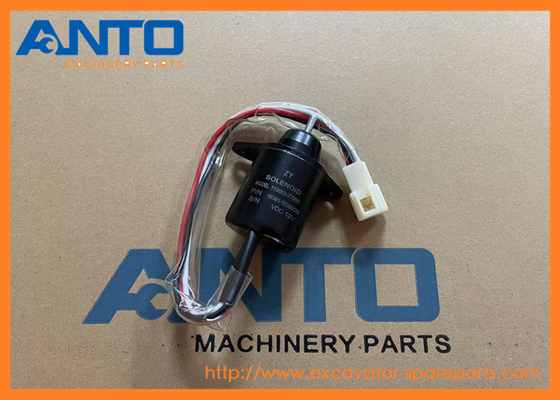

- 119653-77950 STOP Solenoid Hyundai Loader Suku Cadang Cocok untuk HSL610
| Kategori |
Gubernur |
| Nama |
Hentikan solenoid |
| Bagian no |
119653-77950 |
| Model mesin |
HSL610 |
| Waktu tunggu |
1-3 hari |
| Kualitas |
Kualitas baru, OEM |
| Moq |
1 pcs |
| Sarana transportasi |
Melalui laut/udara, DHL FedEx UPS TNT EMS |
| Sedang mengemas |
Sebagai permintaan atau pengepakan standar |
Old Skid Steer Loader HSL610 Hyundai
- Lebih banyak solenoid katup lainnyacocok untuk mesin hyundai
| 3802355 Valve-Intake |
| 100D-7, 33HDLL, H70, H80, HDF35A-2, HL17C, HL720-3C, HL7303C, HL730TM3C, HL740-3, HL740-3ATM, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL750, HL750-3, HL750TM3, HL757-7S |
| |
| 3802356 katup-knalpot |
| 100D-7, 33HDLL, H70, H80, HDF35A-2, HL17C, HL720-3C, HL7303C, HL730TM3C, HL740-3, HL740-3ATM, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL750, HL750-3, HL750TM3, HL757-7S |
| |
| 21M5-50260-CHECK |
| HX140L, HX160L, HX180L, HX235L, R110-7, R110-7A, R125LCR-9A, R130W3, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R14A4A4, R140LC9, R140LC9A, R140LC9A, R140LC9A, R140LC9A, R140LC9A, R140LC9A, R140LC9A, R140LC9A, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R160LC3, R160LC7 |
| |
| Periksa katup 81EK-00030 |
| R170W3 |
| |
| 003001-19025 Valve-Stop |
| R170W3, R180LC3, R200NLC3 |
| |
| 003001-25025 Valve-stop |
| R170W3, R180LC3, R200NLC3 |
| |
| 717522 katup |
| R170W3, R180LC3, R200NLC3, R210LC3H |
| |
| 000.944.08.20 Katup-rem |
| R170W3 |
| |
| 4143-221-006 Valve-Throttle |
| R170W3, R200W2 |
| |
| 4143-242-007 Relief katup |
| R170W3, R200W2 |
| |
| Rilis 4501-210-906 Valve-Press |
| R200W3 |
| |
| 3926559 Periksa katup |
| R200W3, R250LC3 |
| |
| 31EK-21080 katup-solenoid (6) |
| R170W3 |
| |
| 31EK-2171 katup-solenoid (5) |
| R170W3 |
| Pos. |
Bagian no |
Qty |
Nama Bagian |
Komentar |
| *. |
@ |
[1] |
Pump Assy-F.Inject |
Lihat 0110 |
| N1. |
129053-61000 |
[1] |
Gubernur Assy |
|
| 2 |
129155-51280 |
[1] |
O-ring S6 |
|
| N3. |
129052-61010 |
[1] |
Kasus-Gubernur |
|
| 4 |
129052-61050 |
[1] |
SEDANG MENGEMAS |
|
| 5 |
129052-61060 |
[1] |
MENUTUPI |
|
| 6 |
129052-61070 |
[1] |
SEDANG MENGEMAS |
|
| 7 |
129155-61120 |
[1] |
Link L = 30 (Mark 0) |
|
| 8 |
129155-61130 |
[1] |
Link L = 30 (Mark 1) |
|
| 9 |
129155-61140 |
[1] |
Link L = 30.5 (Mark 05) |
|
| 10 |
129155-61201 |
[1] |
Assy Berat Badan |
|
| N11. |
129155-61211 |
[3] |
BERAT |
|
| N12. |
129155-61221 |
[3] |
Pin-berat |
|
| N13. |
129155-61292 |
[1] |
Dukungan-berat |
|
| 14 |
129155-61341 |
[1] |
LENGAN BAJU |
|
| 15 |
129155-61350 |
[1] |
LENGAN BAJU |
|
| 16 |
129155-61360 |
[1] |
LENGAN BAJU |
|
| 17 |
129100-61400 |
[1] |
Poros Assy-Comtrol |
|
| N18. |
129155-61410 |
[1] |
BATANG |
|
| N19. |
129100-61420 |
[1] |
KAIT |
|
| 20 |
129155-61430 |
[1] |
Poros spacer |
|
| N21. |
129156-61430 |
[1] |
Spacer (1.6t) |
|
| N22. |
129156-61440 |
[1] |
Spacer (2.0t) |
|
| N23. |
129156-61450 |
[1] |
Spacer (2.3t) |
|
| 24 |
129155-61450 |
[1] |
Baut-revol.limit |
|
| 25 |
129155-61460 |
[1] |
Batas Baut-Idle |
|
| 26 |
129155-61480 |
[2] |
Spacer Assy |
|
| N27. |
129156-61460 |
[2] |
Spacer (0,6t) |
|
| N28. |
129156-61470 |
[2] |
Spacer (0.7t) |
|
| N29. |
129156-61480 |
[2] |
Spacer (1.2t) |
|
| N30. |
129156-61490 |
[2] |
Spacer (0,8t) |
|
| 31 |
129052-61390 |
[1] |
Poros-gov.lever |
|
| 32 |
129052-61500 |
[1] |
Lever Assy-Governor |
|
| 33 |
174307-51700 |
[2] |
Set shim |
|
| N34. |
174307-51710 |
[2] |
Shim (0,1t) |
|
| N35. |
174307-51720 |
[2] |
Shim (0,2t) |
|
| N36. |
174307-51730 |
[2] |
Shim (0,3t) |
|
| N37. |
174307-51740 |
[2] |
Shim (0,5t) |
|
| N38. |
174307-51750 |
[2] |
Shim (0,05t) |
|
| N39. |
174307-51760 |
[2] |
Shim (0,25t) |
|
| N40. |
174307-51770 |
[2] |
Shim (0,35t) |
|
| N41. |
174307-51780 |
[2] |
Shim (0,40t) |
|
| N42. |
174307-51790 |
[2] |
Shim (0,45t) |
|
| N43. |
174307-51800 |
[2] |
Shim (0,50t) |
|
| N44. |
129052-61510 |
[1] |
TUAS |
|
| N45. |
119843-61520 |
[1] |
Lever A-Governor |
|
| N46. |
129052-61530 |
[1] |
Tuas (b) |
|
| 47 |
129052-61540 |
[1] |
MUSIM SEMI |
|
| N48. |
129155-61540 |
[1] |
Shifter |
|
| N49. |
119843-61550 |
[2] |
SEMAK-SEMAK |
|
| N50. |
129052-61590 |
[1] |
GAJI |
|
| N51. |
171353-61910 |
[1] |
Tuas pengait-tegangan |
|
| N52. |
129100-61920 |
[1] |
PIN |
|
| 53 |
22272-000040 |
[1] |
Circlip |
|
| N54. |
26116-050102 |
[2] |
BAUT |
|
| 55 |
26106-060102 |
[1] |
Berlapis baut |
|
| 56 |
22217-050000 |
[2] |
SPRING WASHER |
|
| 57 |
119660-61901 |
[1] |
Poros retainer |
|
| 58 |
129155-61950 |
[1] |
Berbasis Bolt-Washer |
|
| 59 |
124550-66370 |
[1] |
Kunci mur m6 |
|
| 60 |
22117-040000 |
[1] |
MESIN CUCI |
|
| 61 |
22190-060002 |
[1] |
Washer-seal |
|
| 61-1. |
22190-060003 |
[1] |
Washer-seal |
|
| 62 |
22190-100002 |
[1] |
Washer-seal |
|
| 63 |
22190-120002 |
[2] |
Washer-seal |
|
| 64 |
22287-120000 |
[1] |
MESIN CUCI |
|
| 65 |
22372-040000 |
[2] |
Pin-snap |
|
| 66 |
23887-100002 |
[1] |
STEKER |
|
| 67 |
24341-000280 |
[1] |
O-ring |
|
| 68 |
26106-060102 |
[1] |
Berlapis baut |
|
| 69 |
26106-060102 |
[1] |
Berlapis baut |
|
| 70 |
26106-060102 |
[4] |
Berlapis baut |
|
| 71 |
26106-060142 |
[2] |
Berlapis baut |
|
| 72 |
26106-060202 |
[6] |
BAUT |
|
| 73 |
26756-060002 |
[1] |
Kunci kacang |
|
| 74 |
26776-120002 |
[2] |
Kunci mur m12 berlapis |
|
| 75 |
129155-61830 |
[1] |
O-ring S10 |
|
| 76 |
129100-61440 |
[1] |
Kontrol tuas |
|
| 77 |
129100-61650 |
[1] |
Kontrol bahan bakar musim semi |
|
| 78 |
129489-61700 |
[1] |
Gubernur Spring |
|
| 79 |
119653-77950 |
[1] |
Solenoid-Stop |
|
| 80 |
26687-120002 |
[1] |
CAP-NUT M12 |
|
| 80a. |
129100-61930 |
[1] |
Topi kacang |
|
| 81 |
129155-61470 |
[1] |
Kontrol Bolt-Fuel |
|
| 82 |
26366-080002 |
[1] |
KACANG |
|
| 83 |
171353-61550 |
[1] |
Angleich Assy |
|
| N84. |
129155-61570 |
[1] |
Kasus-sudut |
|
| N85. |
129155-61580 |
[1] |
Shifter-sangleich |
|
| N86. |
129156-61580 |
[1] |
Spring-sangleich |
|
| N87. |
129155-61590 |
[1] |
KACANG |
|
| N88. |
129555-61800 |
[1] |
Shim (0,95t) |
|
| N89. |
112100-51630 |
[1] |
Kontrol Shim-Fuel |
|
| N90. |
112100-51640 |
[1] |
Shim |
|
| N91. |
112100-51650 |
[1] |
Kontrol Shim-Fuel |
|
| N92. |
129555-61810 |
[1] |
Shim (0,6t) |
|
| N93. |
129555-61820 |
[1] |
Shim (0,65t) |
|
| N94. |
129555-61830 |
[1] |
Shim (0,7t) |
|
| N95. |
129555-61840 |
[1] |
Shim (0,75t) |
|
| N96. |
129555-61850 |
[1] |
Shim (0,8t) |
|
| N97. |
129555-61860 |
[1] |
Shim (0,85t) |
|
| N98. |
129555-61870 |
[1] |
Shim (0,9t) |
|
| N99. |
129555-61800 |
[1] |
Shim (0,95t) |
|
| N100. |
129555-61890 |
[1] |
Shim (1.0t) |
|
| N101. |
129555-61900 |
[1] |
Shim (1.05t) |
|
| N102. |
129555-61910 |
[1] |
Shim (1.1t) |
|
| N103. |
129555-61920 |
[1] |
Shim (1.15t) |
|
| N104. |
129555-61930 |
[1] |
Shim (1.2t) |
|
| N105. |
22117-050000 |
[1] |
MESIN CUCI |
|
| 106 |
22272-000040 |
[1] |
Circlip |
|
| N107. |
135210-61090 |
[1] |
MEMIMPIN |
|
| N108. |
22541-060000 |
[1] |
KABEL |
|
| N. |
@ |
[1] |
Tidak disediakan suku cadang |
|
- Kami bisa menyediakan suku cadang berikut
1 Bagian Hidraulik: Pompa Hidrolik, Katup Utama, Silinder Hidrolik, Penggerak Akhir, Motor Perjalanan, Mesin Ayunan, Motor Ayunan Dll.
2 Bagian mesin: engine ass'y, piston, cincin piston, blok silinder, kepala silinder, poros engkol, turbocharger, pompa injeksi bahan bakar, motor mulai dan alternator dll.
3 Bagian Undercarriage: Track Roller, Carrier Roller, Track Link, Track Shoe, Sprocket, Idler dan Idler Cushion dll.
4 Suku Cadang Kabel: Kabin Operator, Harness Wiring, Monitor, Pengontrol, Kursi, Pintu Dll.
5 Bagian Pendingin: Radiator, AC, Kompresor, Setelah Pendingin dll.
6 Bagian Lain: Kit Servis, Lingkaran Swing, Hood Mesin, Sambungan Ayunan, Tangki Bahan Bakar, Filter, Boom, Lengan, Bucket Dll.
1. Menawarkan produk berkualitas tinggi & kompetitif
2. Dukung garansi 12 bulan
3. 100% diuji sebelum pengiriman
4. Pengiriman dalam Waktu
5. Berbagai macam sensor tekanan oli, sensor level tangki bahan bakar, sensor suhu, sensor kecepatan untuk excavator
6. Lebih dari 15 tahun produksi dan 11 tahun pengalaman perdagangan luar negeri
7. Tim QC Profesional
8. Tim Penjualan Terbaik, Layanan 24 Jam
- Pengepakan dan pengiriman
Detail Pengepakan:
Kemasan Dalam: Film Plastik untuk Pembungkus
Pengepakan eksternal: kayu
Pengiriman :
dalam 3 hari setelah menerima pembayaran, melalui udara atau secara ekspres atau melalui laut berdasarkan
kuantitas dan keadaan darurat.
1. Oleh Couriers: DHL, UPS, FedEx, TNT adalah perusahaan kurir utama yang kami kooperasi,
2. Melalui Udara: Pengiriman dari Pelabuhan Udara Guangzhou ke Pelabuhan Udara Kota Destinasi Pelanggan.
3. Melalui laut: Pengiriman dari pelabuhan Huangpu.
